OEM System Circuits: Starting: Notes

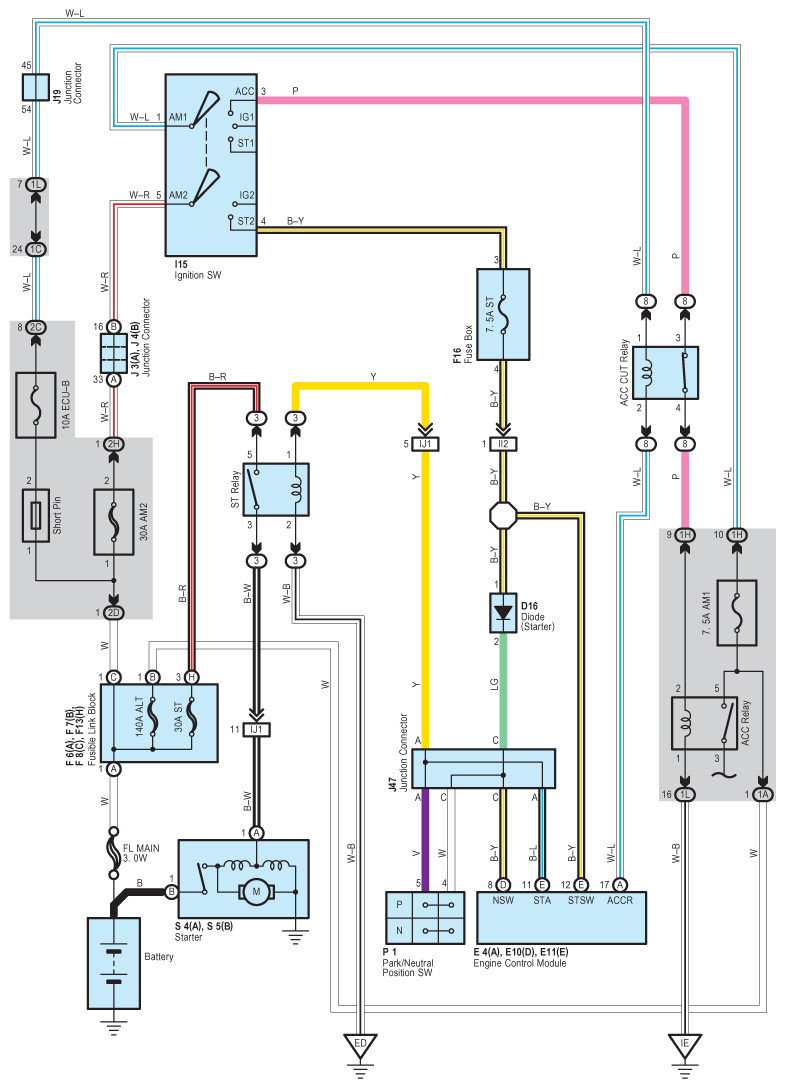

Fig 1: Starting - Circuit Diagram

G07609349

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
