Steering Column Assembly: Components

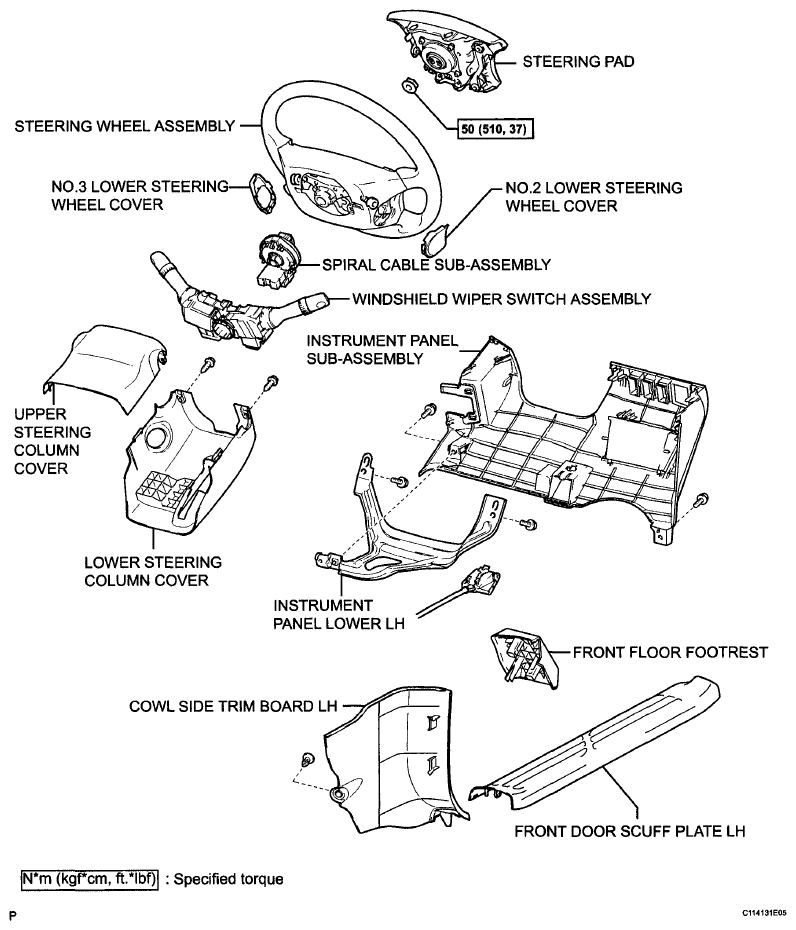

Fig 1: Identifying Steering Column Assembly Components (1 Of 4)
G06086776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

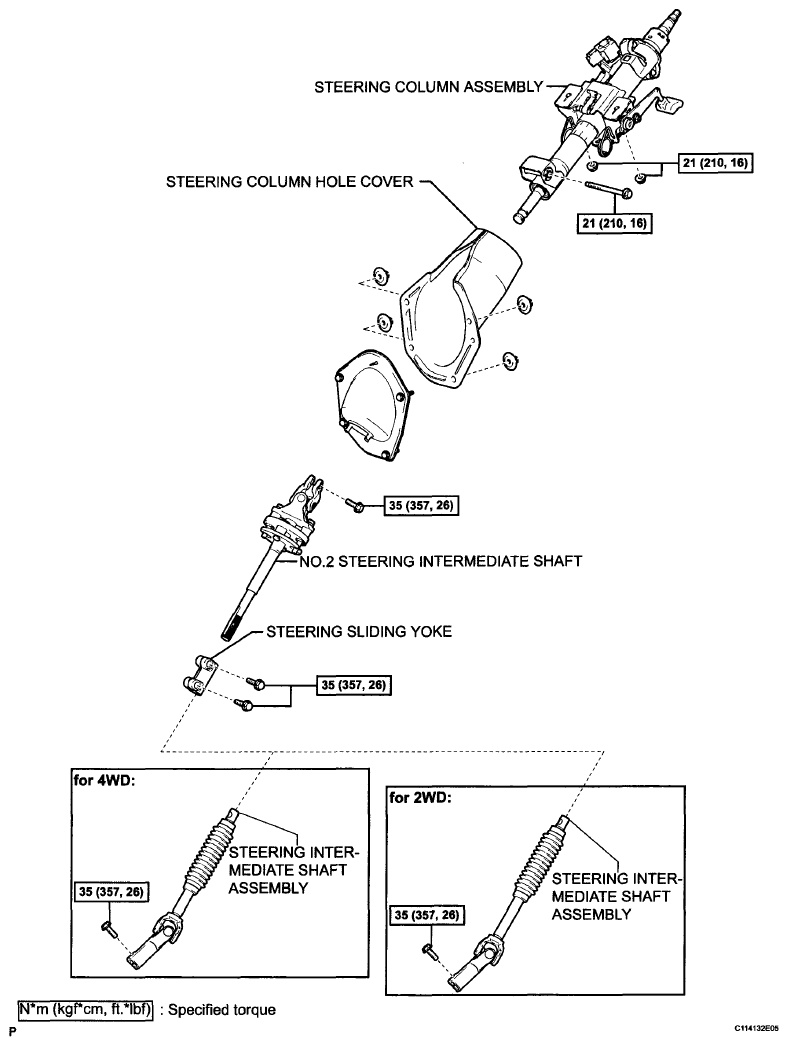

Fig 2: Identifying Steering Column Assembly Components (2 Of 4)
G06086777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

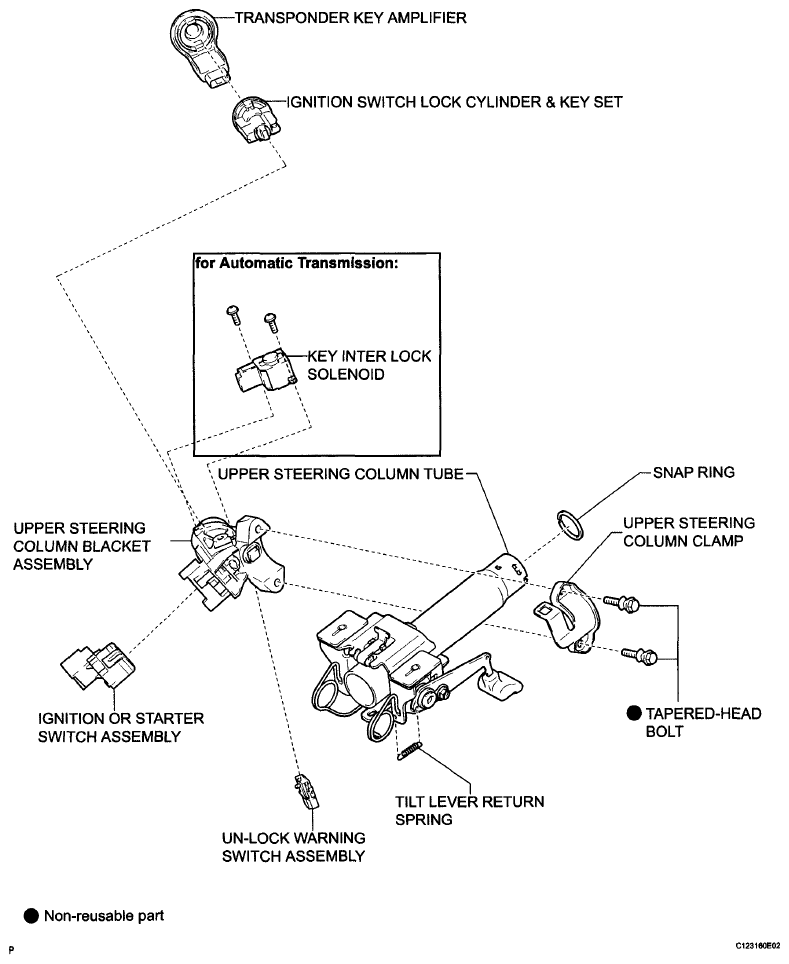

Fig 3: Identifying Steering Column Assembly Components (3 Of 4)
G06086778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

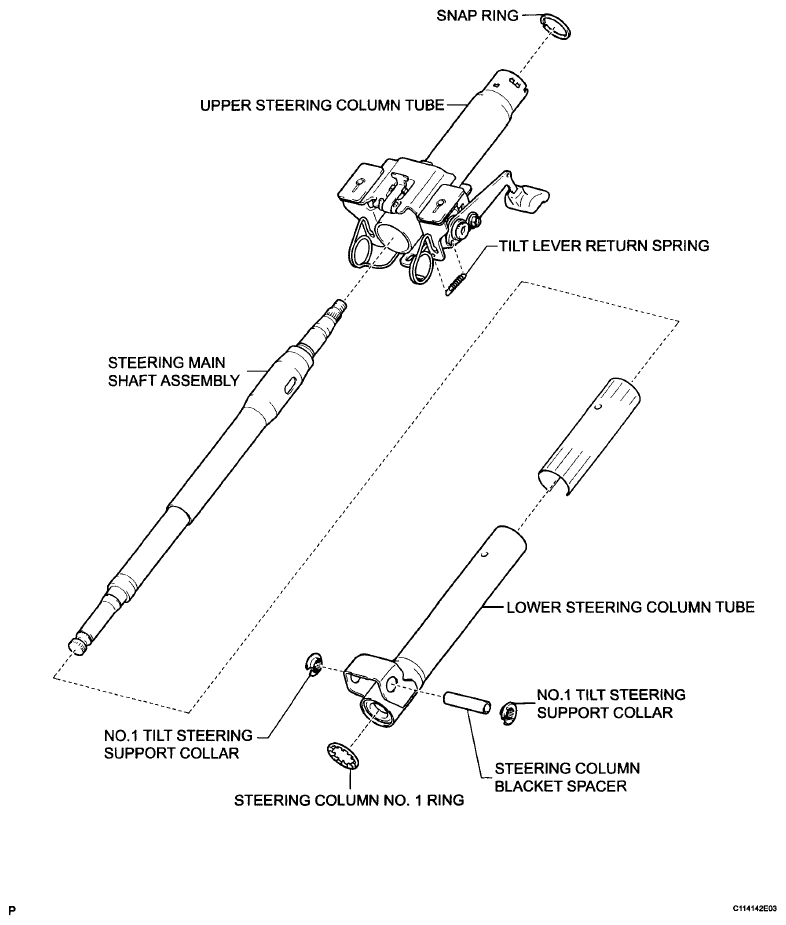

Fig 4: Identifying Steering Column Assembly Components (4 Of 4)
G06086779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
