Accessory Meter
›
Notes
Accessory Meter: Notes

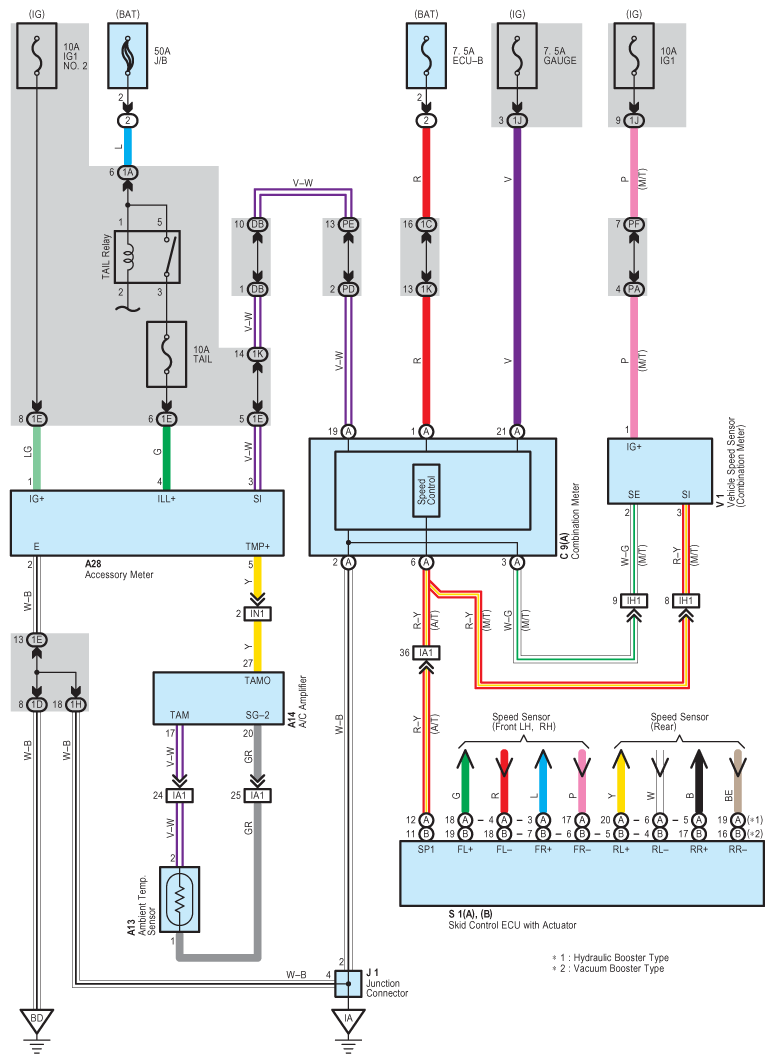

Fig 1: Accessory Meter - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
