Air Conditioning: Notes — 2009 Toyota Tacoma X-Runner Service Manual ~ FixVault

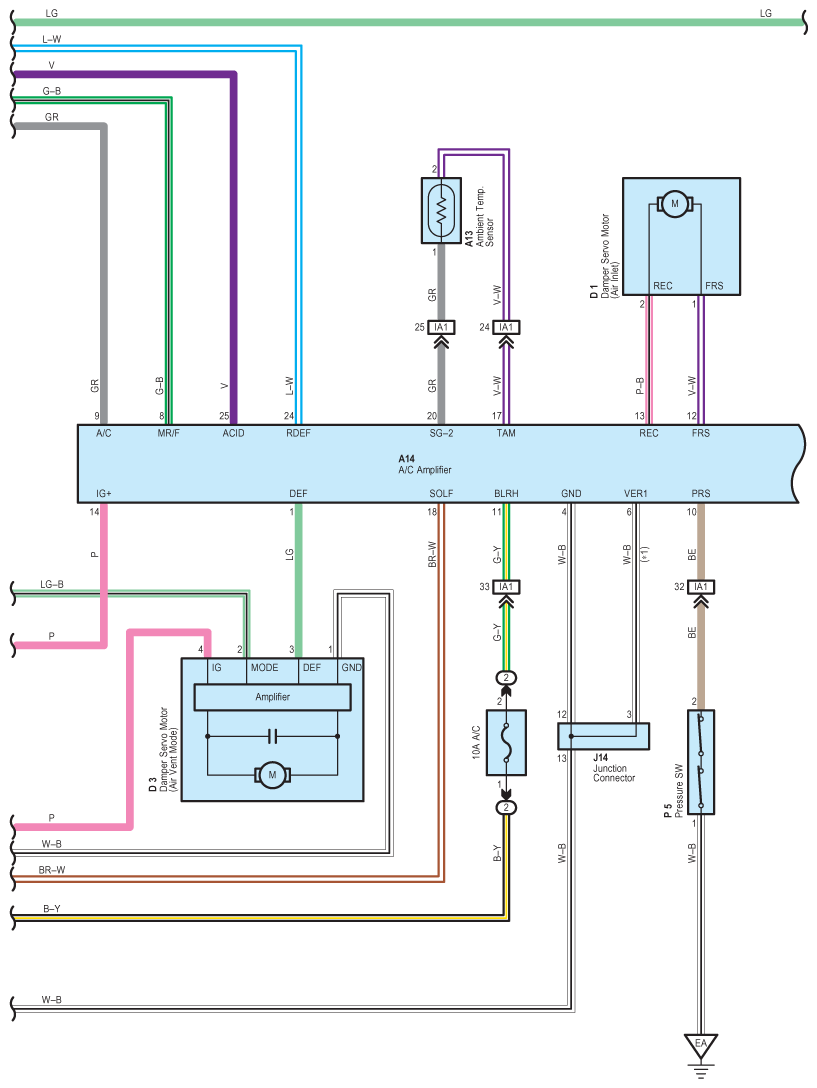

Fig 1: Air Conditioning - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

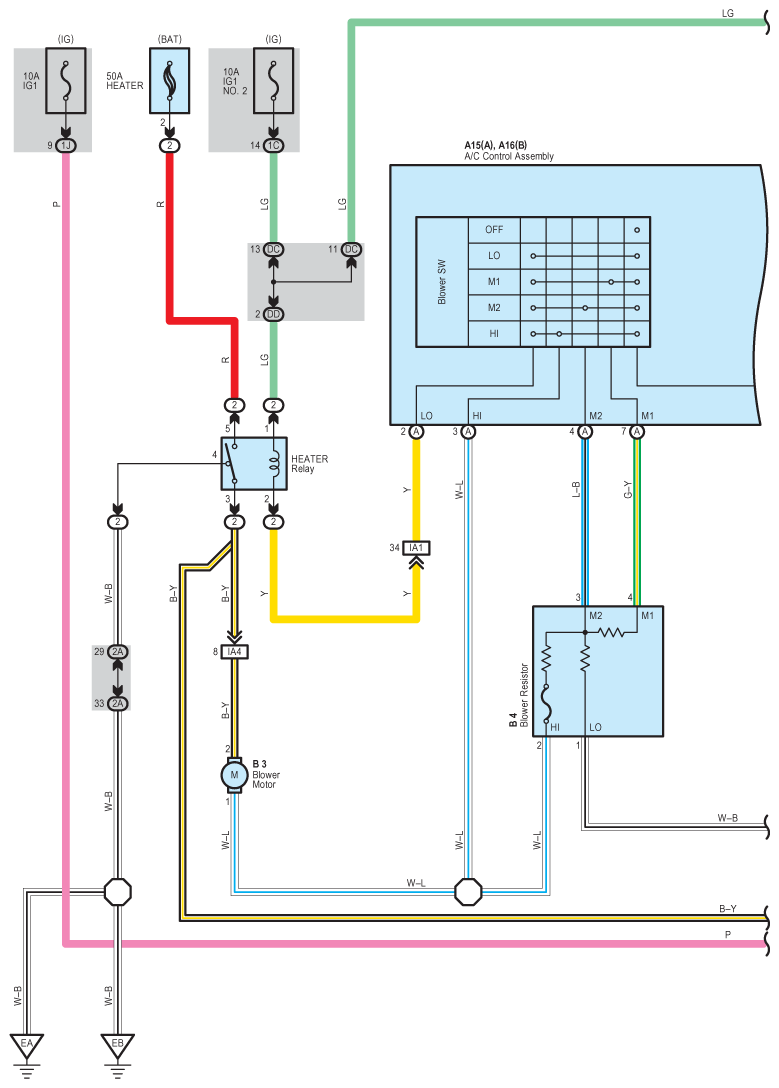

Fig 2: Air Conditioning - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

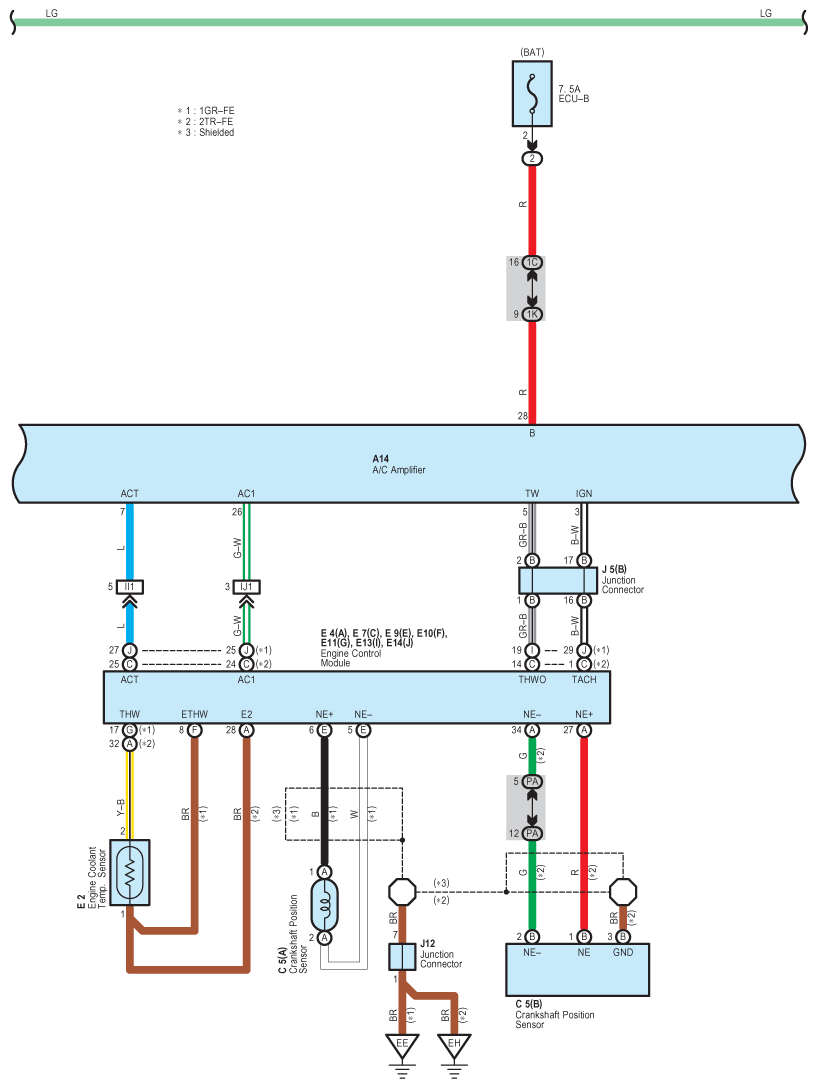

Fig 3: Air Conditioning - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

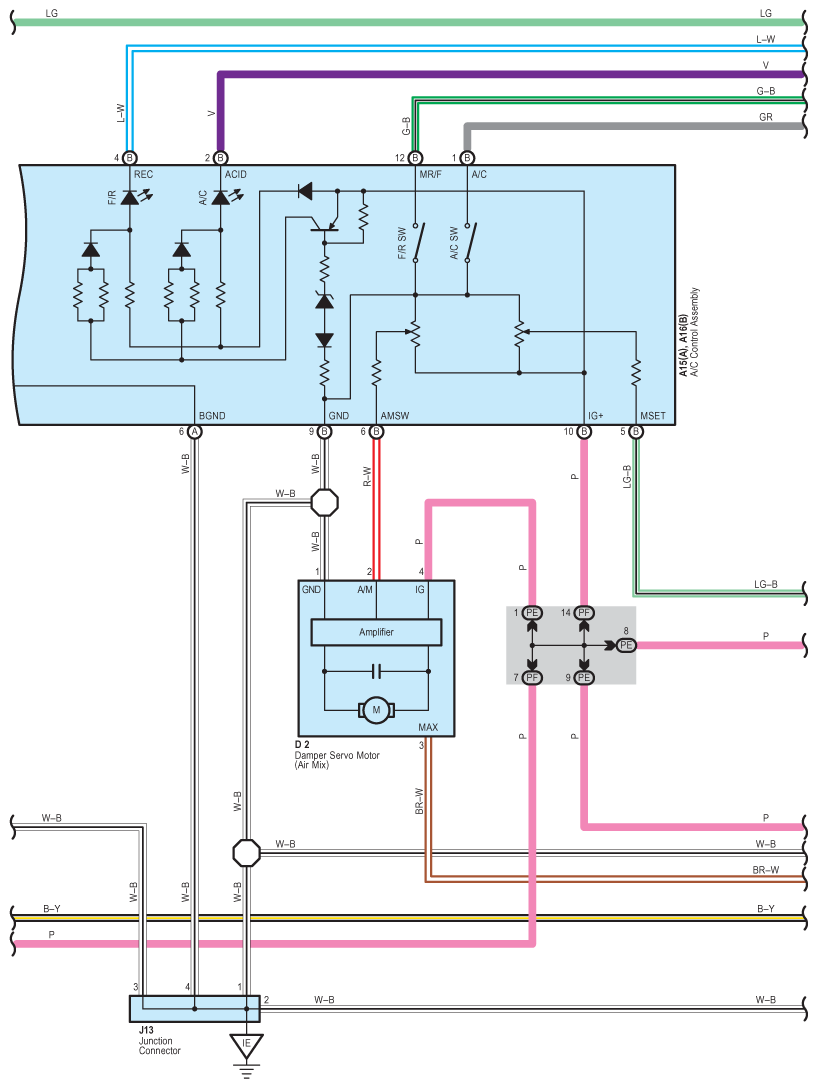

Fig 4: Air Conditioning - Circuit Diagram (4 Of 5)

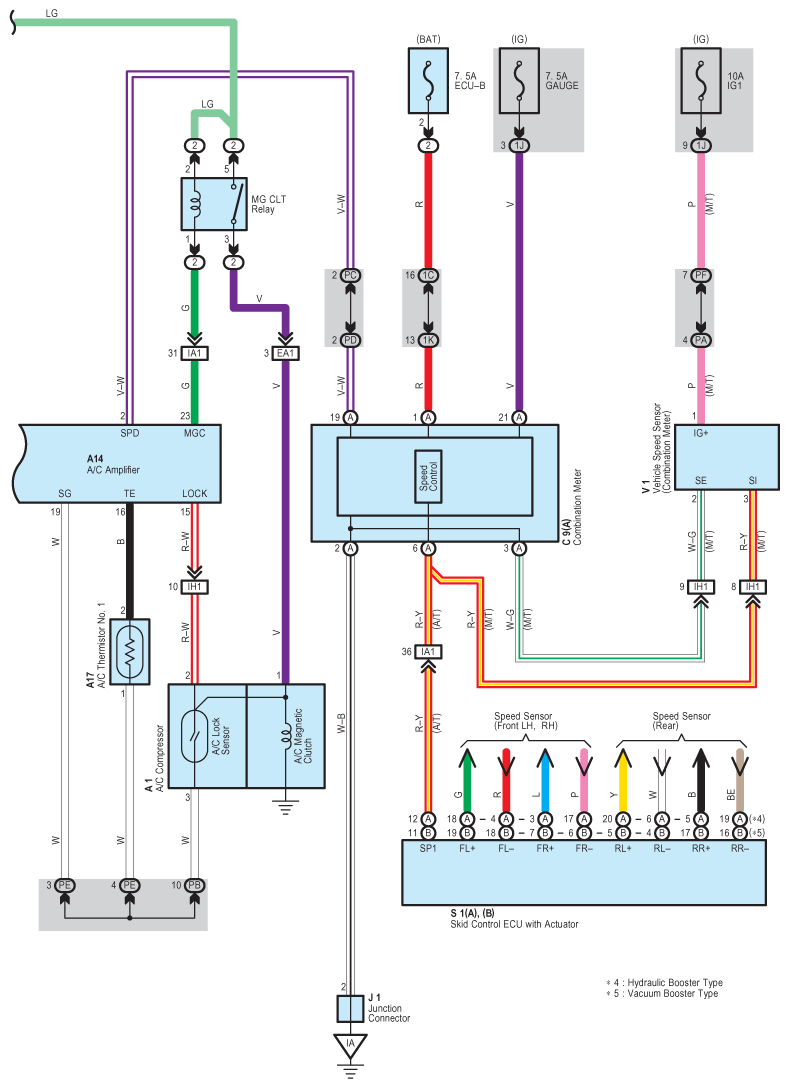

Fig 5: Air Conditioning - Circuit Diagram (5 Of 5)
