Toyota
›
2009
›
Tacoma X-Runner
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Trailer Towing
›
Notes
Trailer Towing: Notes

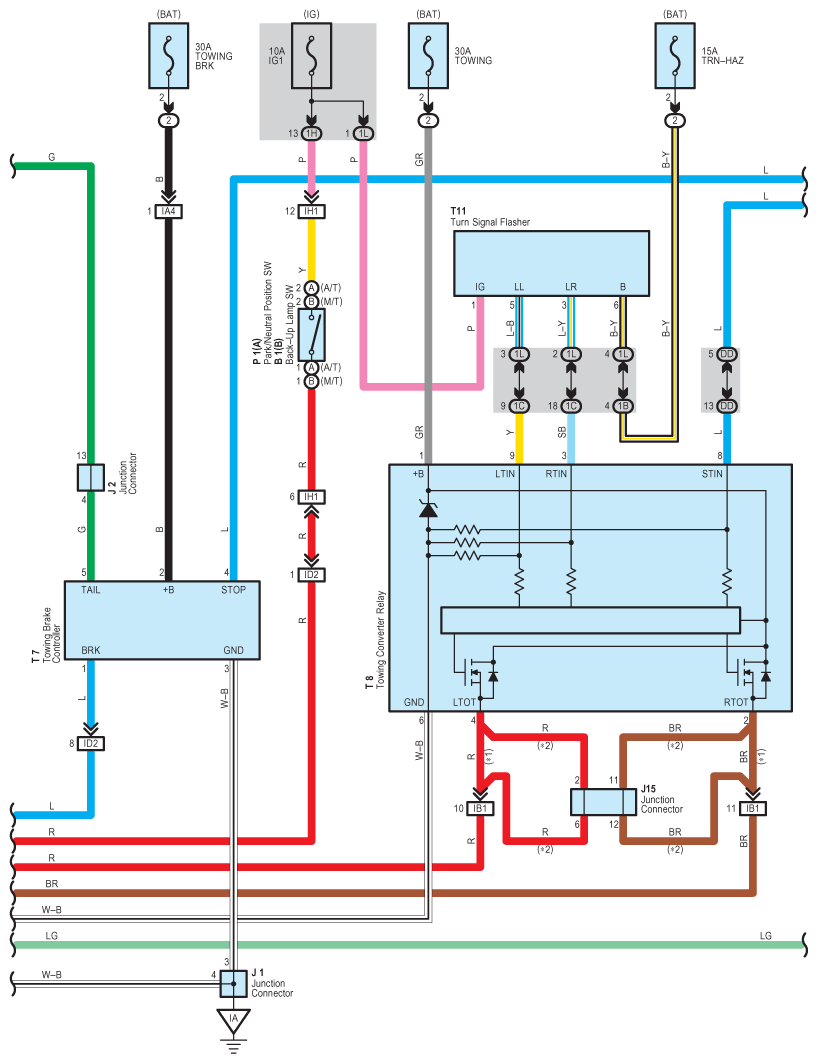

Fig 1: Trailer Towing - Circuit Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Trailer Towing - Circuit Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Trailer Towing - Circuit Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
