Fuel Injector: Components

Fig 1: Fuel Injector Replacement Components (1 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

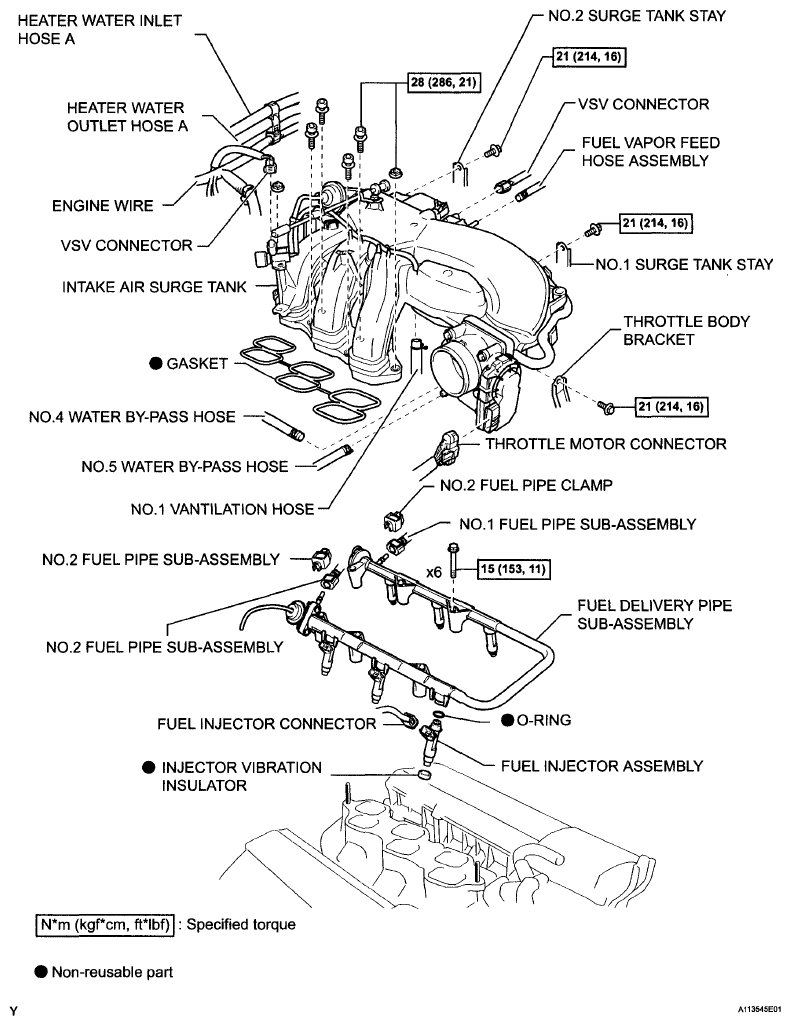

Fig 2: Fuel Injector Replacement Components (2 Of 2) With Torque Specifications
