Rear Leaf Spring: Components

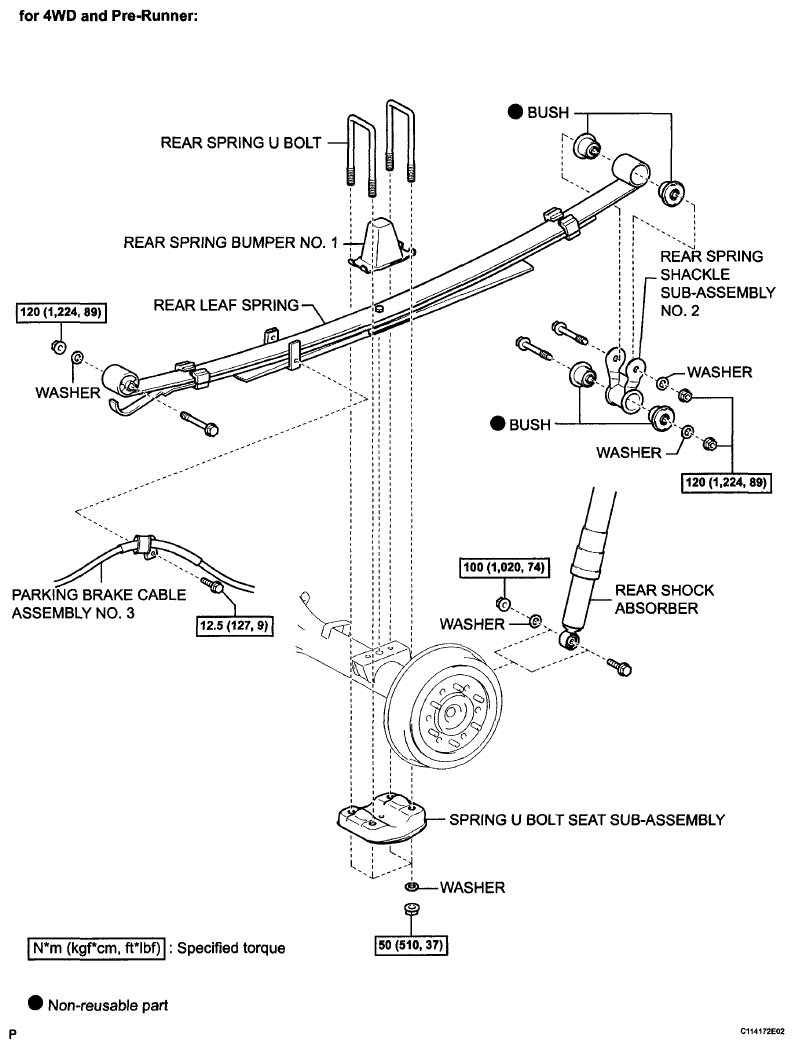

Fig 1: Rear Leaf Spring Replacement Components (1 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

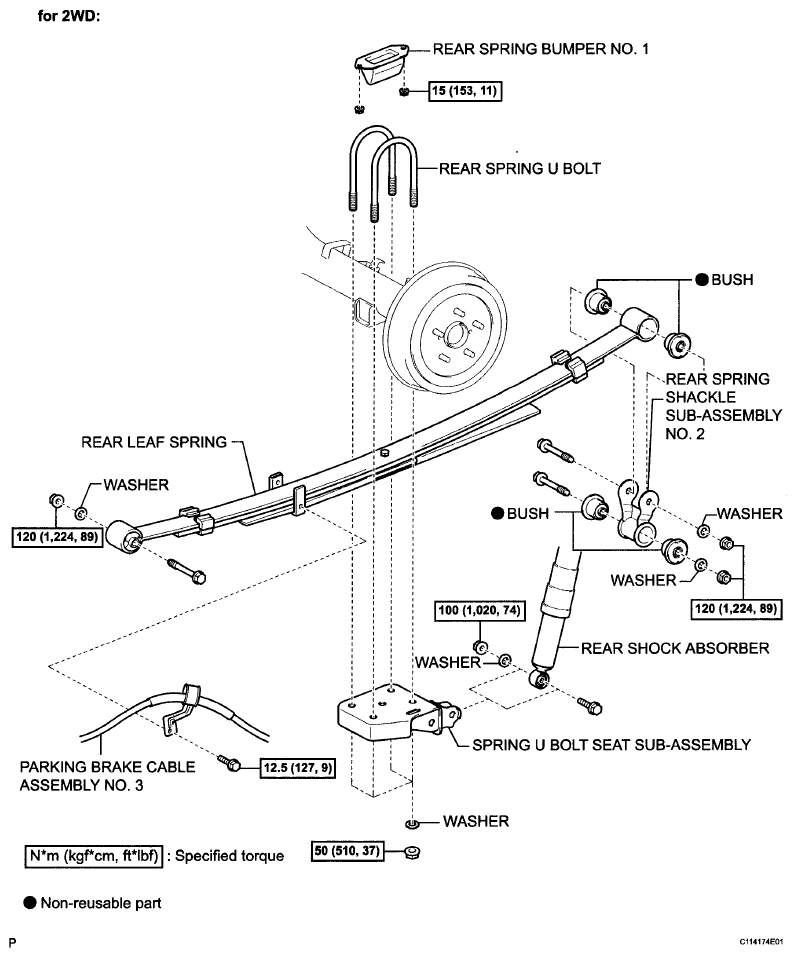

Fig 2: Rear Leaf Spring Replacement Components (2 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
