Remote Up / Down Function does not Operate: Wiring Diagram

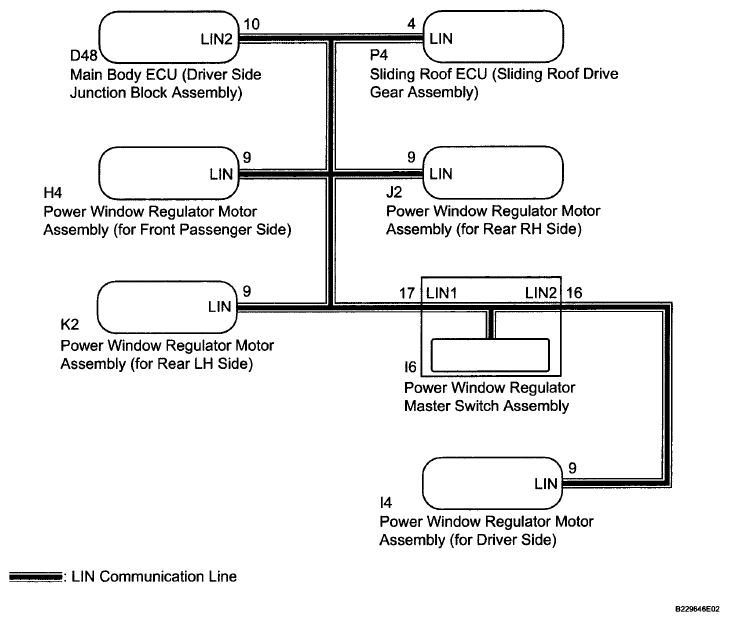

Fig 1: Power Window Regulator Motor - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
