System Diagram

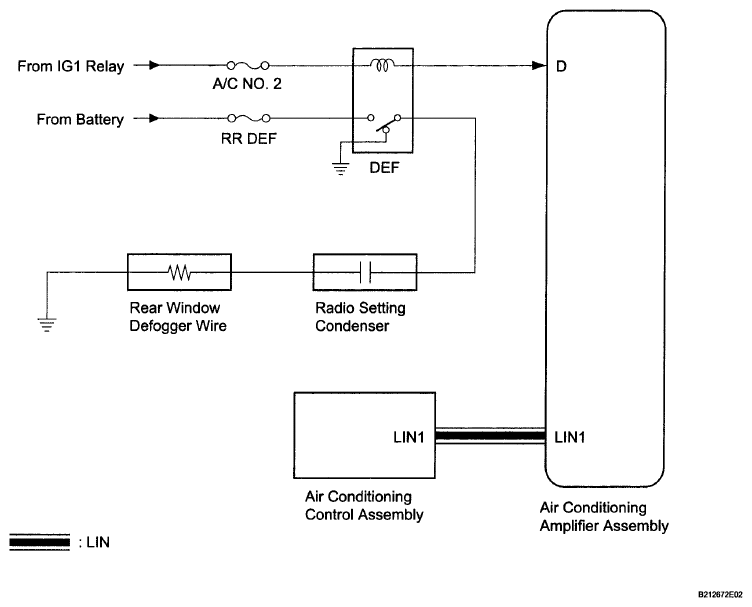

Fig 1: Window Defogger System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

COMMUNICATION CHART

Transmitting ECU	Receiving ECU	Signal	Communication Method
Air Conditioning Control Assembly	Air Conditioning Amplifier Assembly	Rear window defogger switch signal	LIN
