OEM System Circuits: AWD: Notes

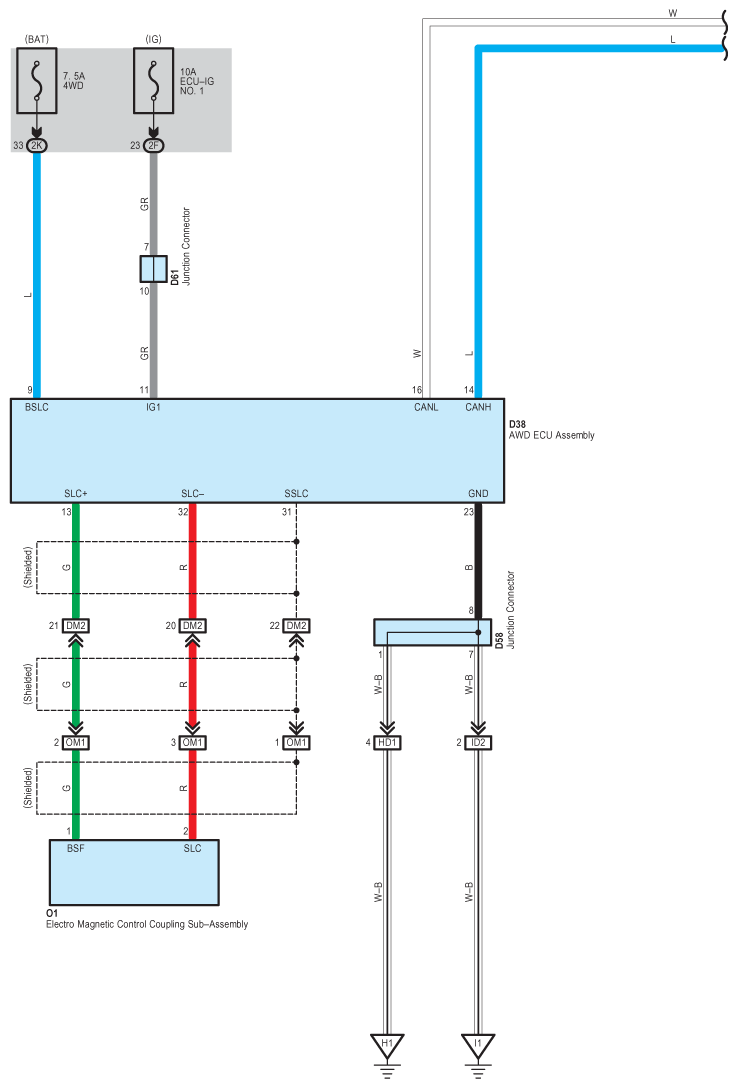

Fig 1: AWD - Circuit Diagram (1 Of 6)

G07615667

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

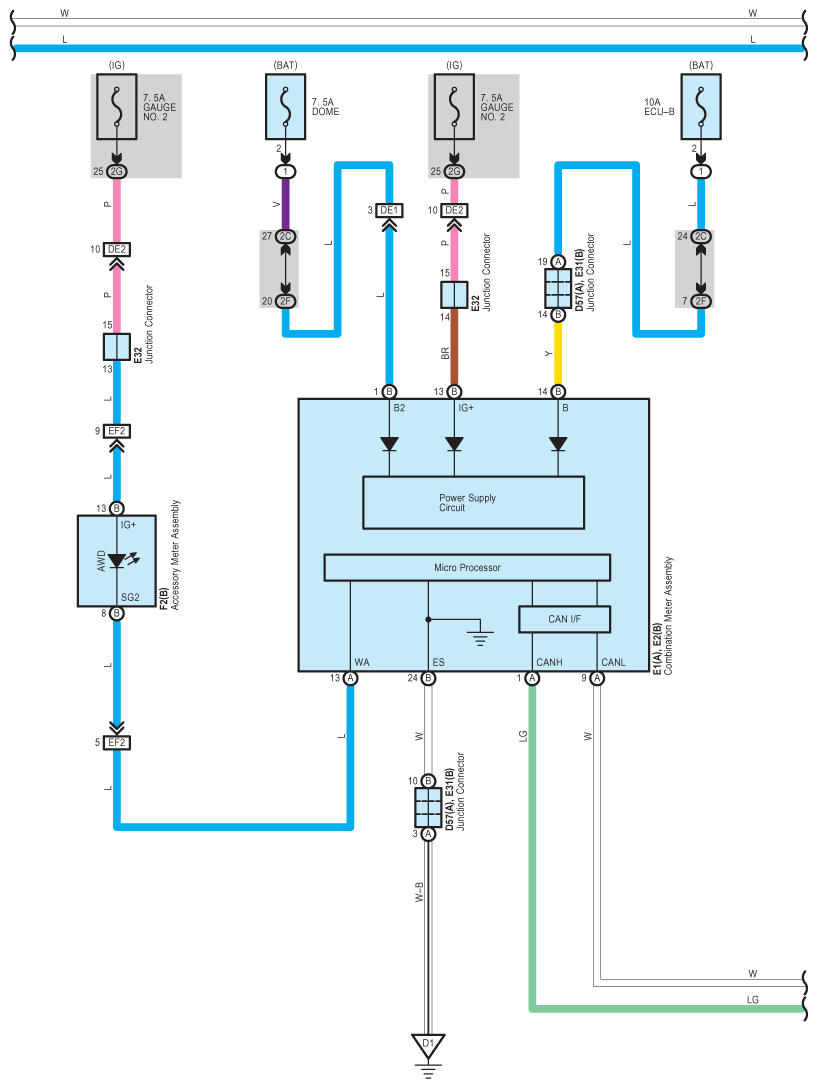

Fig 2: AWD - Circuit Diagram (2 Of 6)

G07615668

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

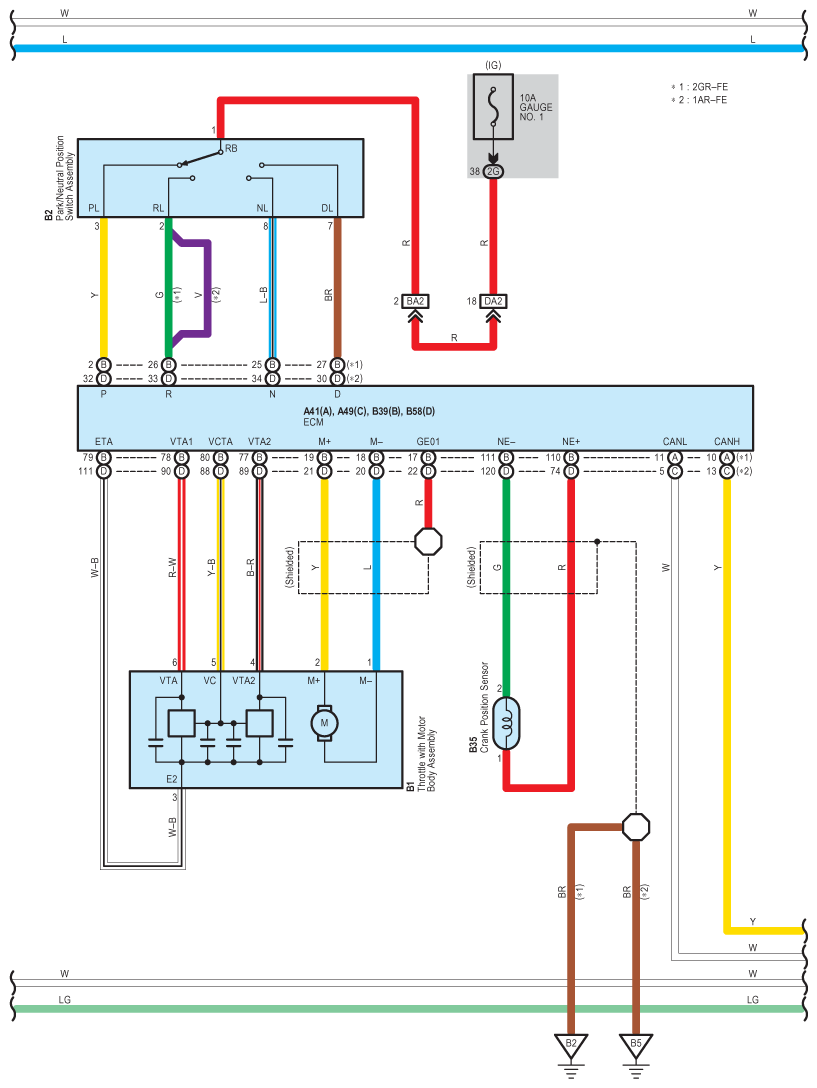

Fig 3: AWD - Circuit Diagram (3 Of 6)

G07615669

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

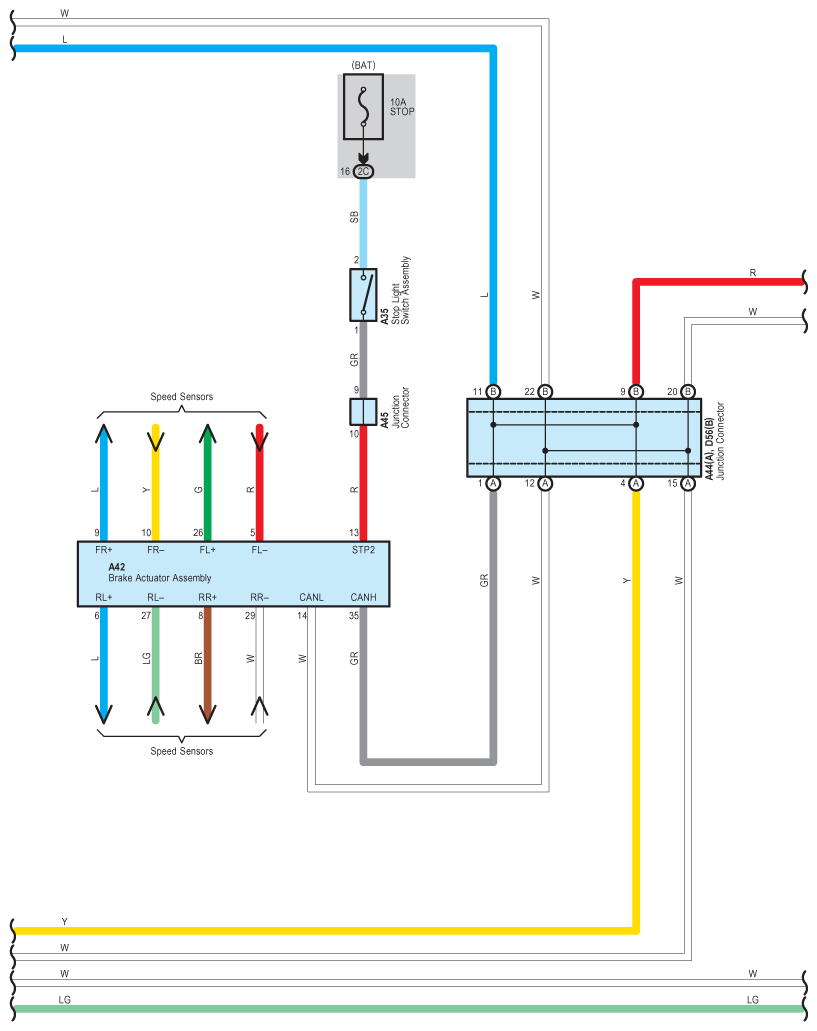

Fig 4: AWD - Circuit Diagram (4 Of 6)

G07615670

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

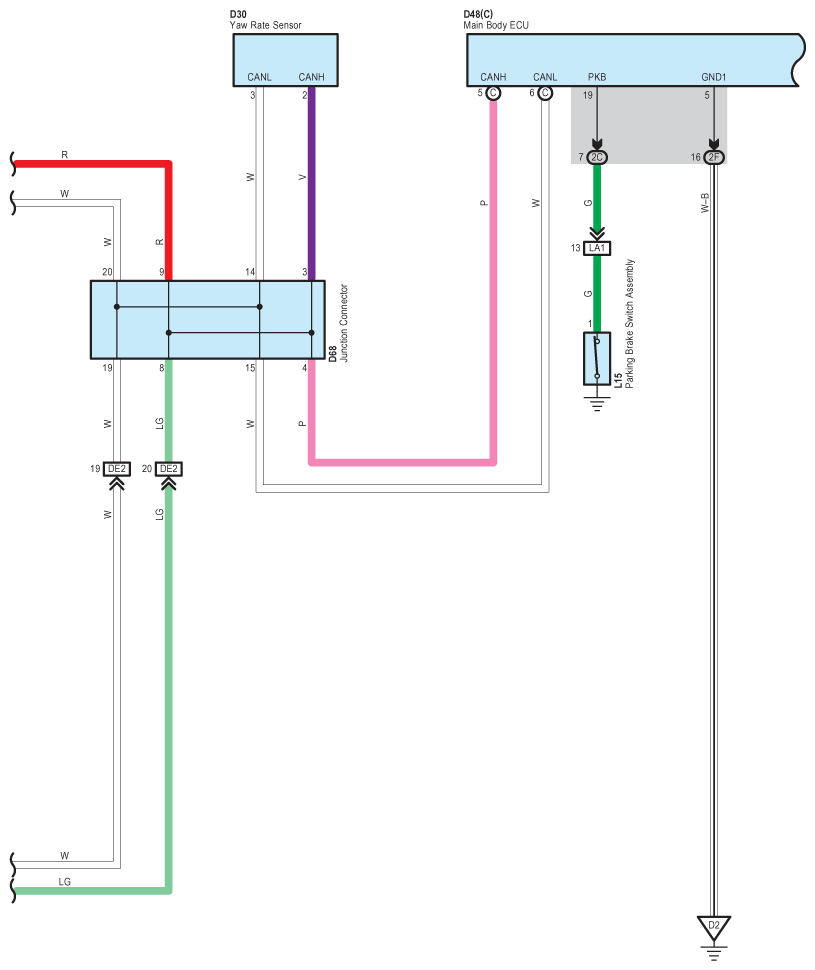

Fig 5: AWD - Circuit Diagram (5 Of 6)

G07615671

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

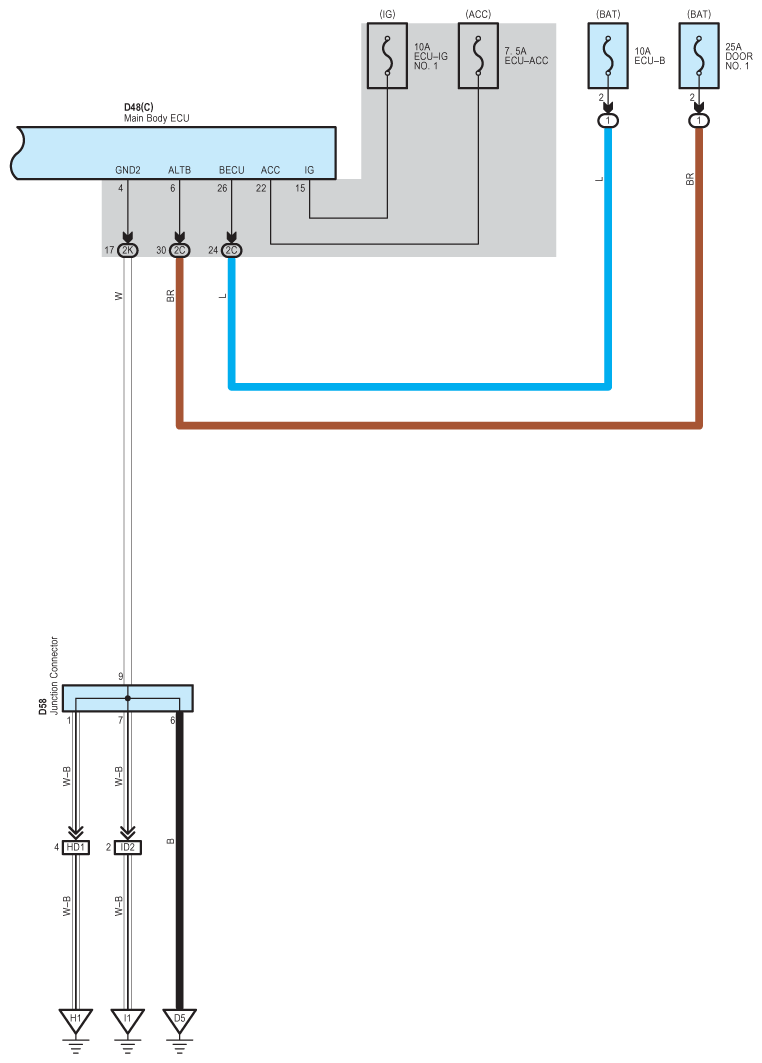

Fig 6: AWD - Circuit Diagram (6 Of 6)

G07615672

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
