System Diagram

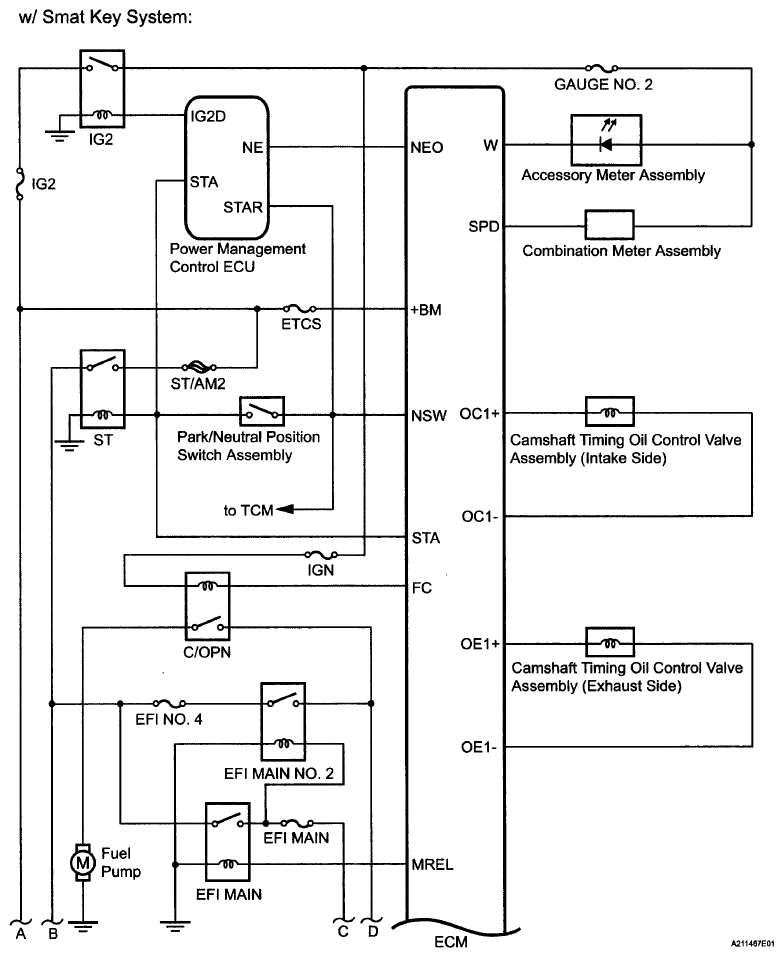

Fig 1: SFI System - System Diagram (1 Of 6)
G06022979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

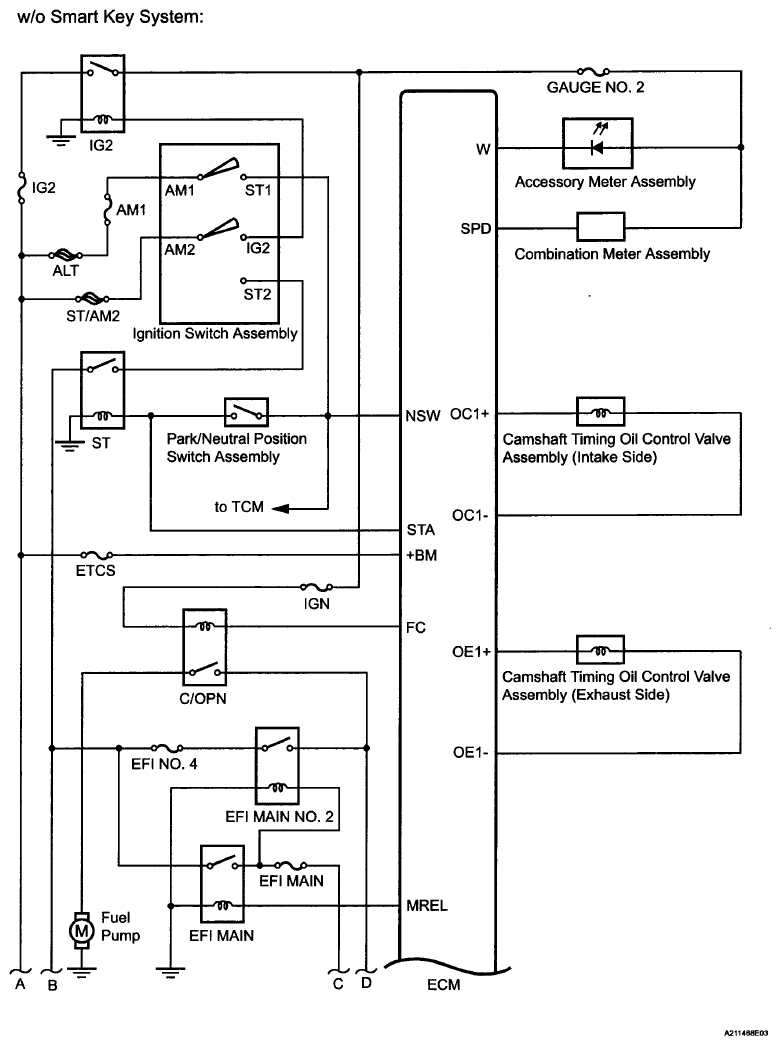

Fig 2: SFI System - System Diagram (2 Of 6)
G06022980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

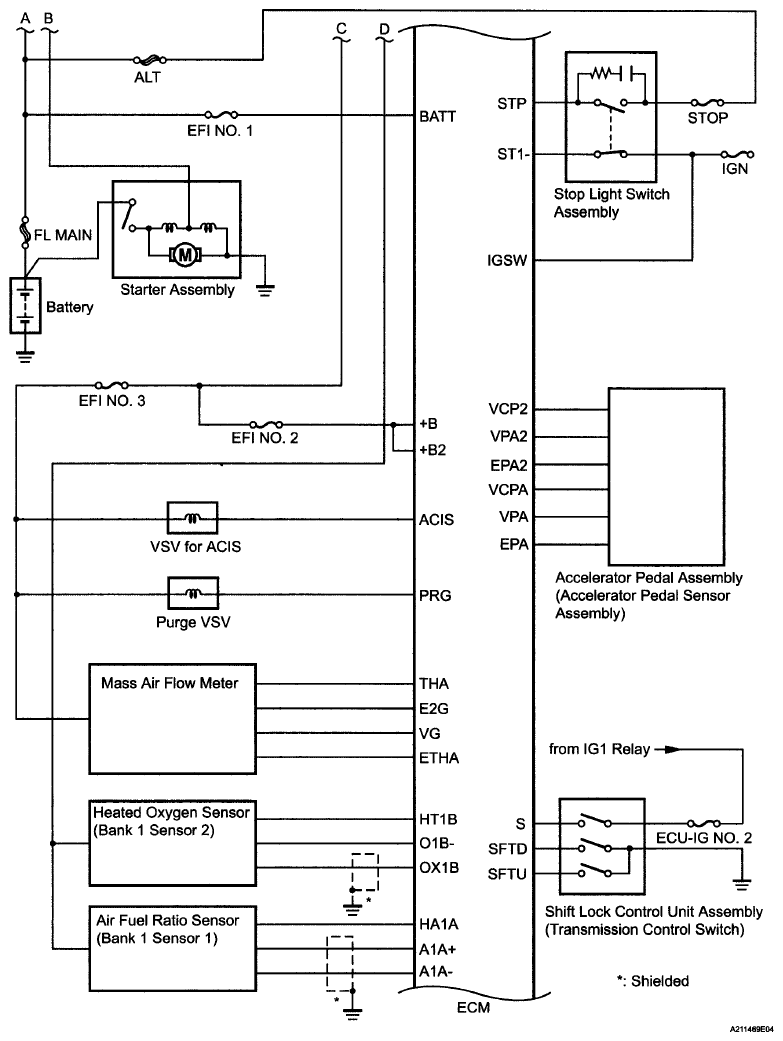

Fig 3: SFI System - System Diagram (3 Of 6)
G06022981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

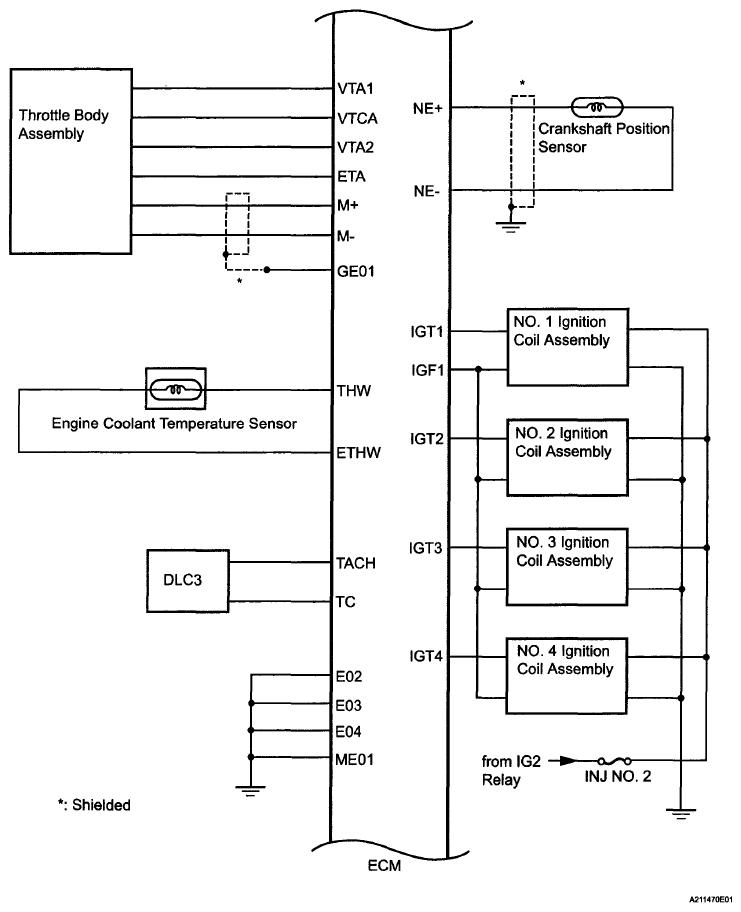

Fig 4: SFI System - System Diagram (4 Of 6)
G06022982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

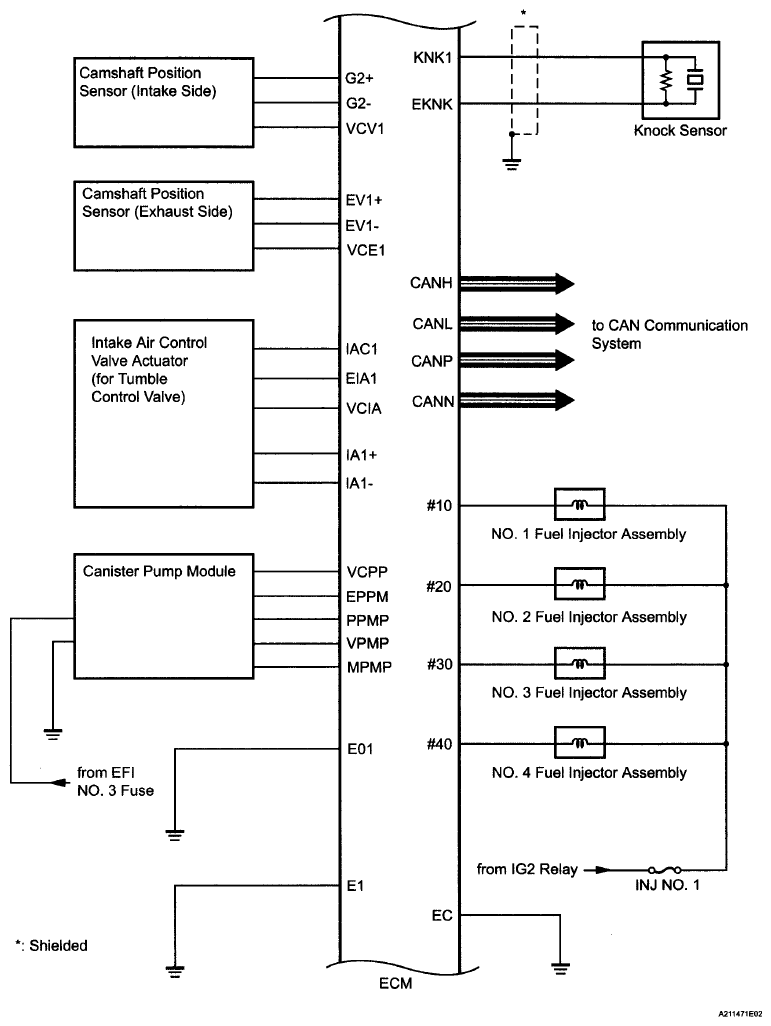

Fig 5: SFI System - System Diagram (5 Of 6)
G06022983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

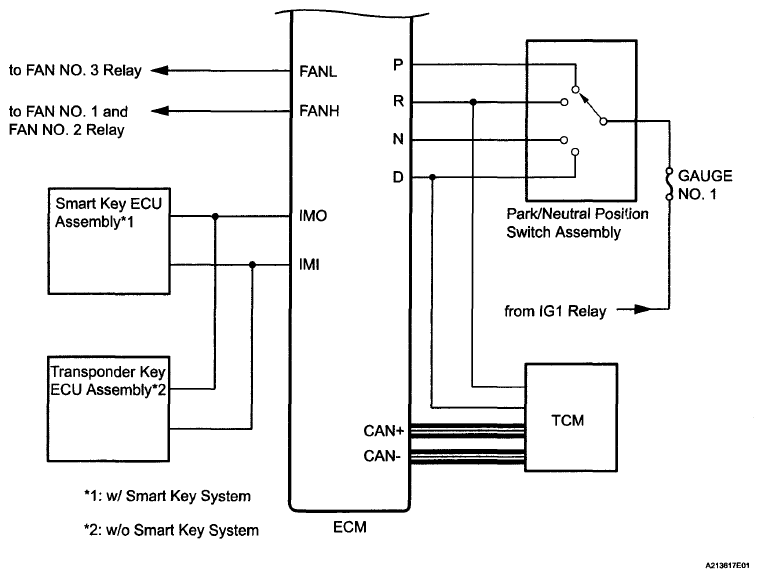

Fig 6: SFI System - System Diagram (6 Of 6)
G06022984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
