Engine Control System (1AR-FE) - System Testing, Removal & Installation
›
Accelerator Pedal
›
Components
Accelerator Pedal: Components

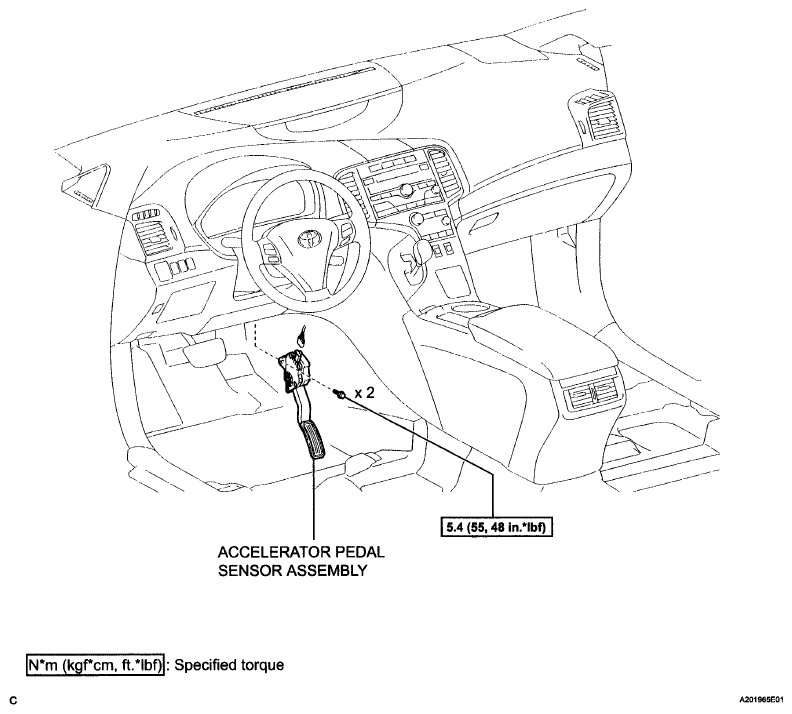

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
