Engine Control System (1AR-FE) - System Testing, Removal & Installation: ECM: Components

Fig 1: Identifying ECM Replacement Components And Torque Specifications (1 Of 2)
G06023431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

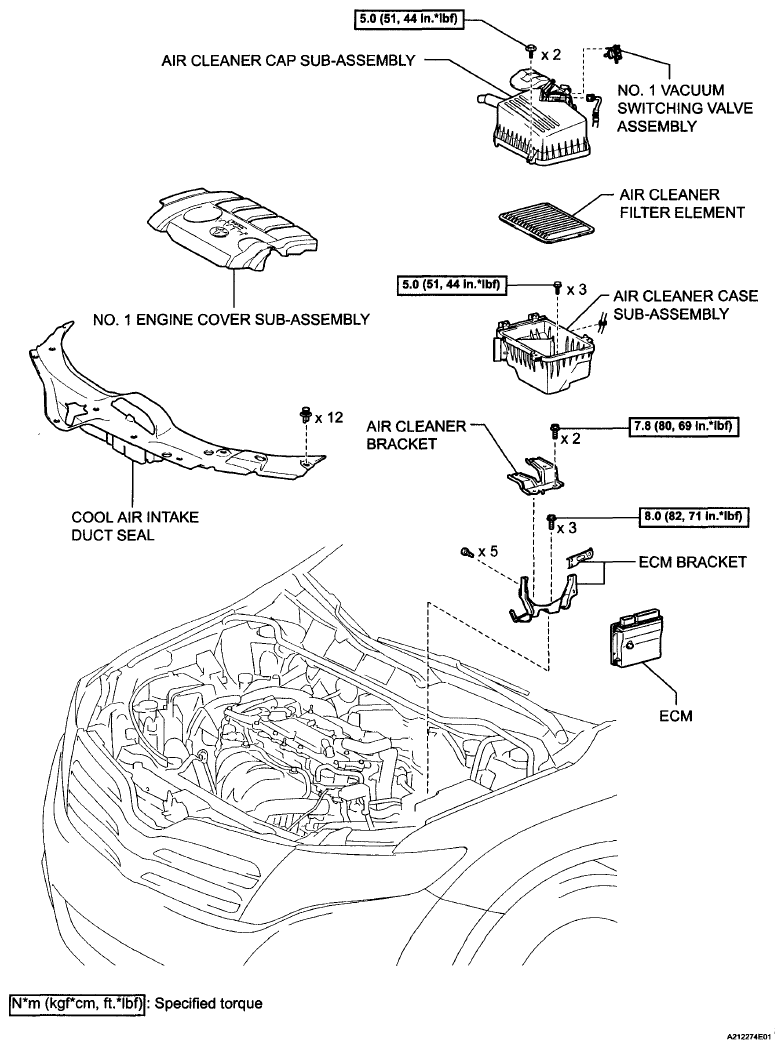

Fig 2: ECM Replacement Components With Torque Specifications (2 Of 2)
G06023432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
