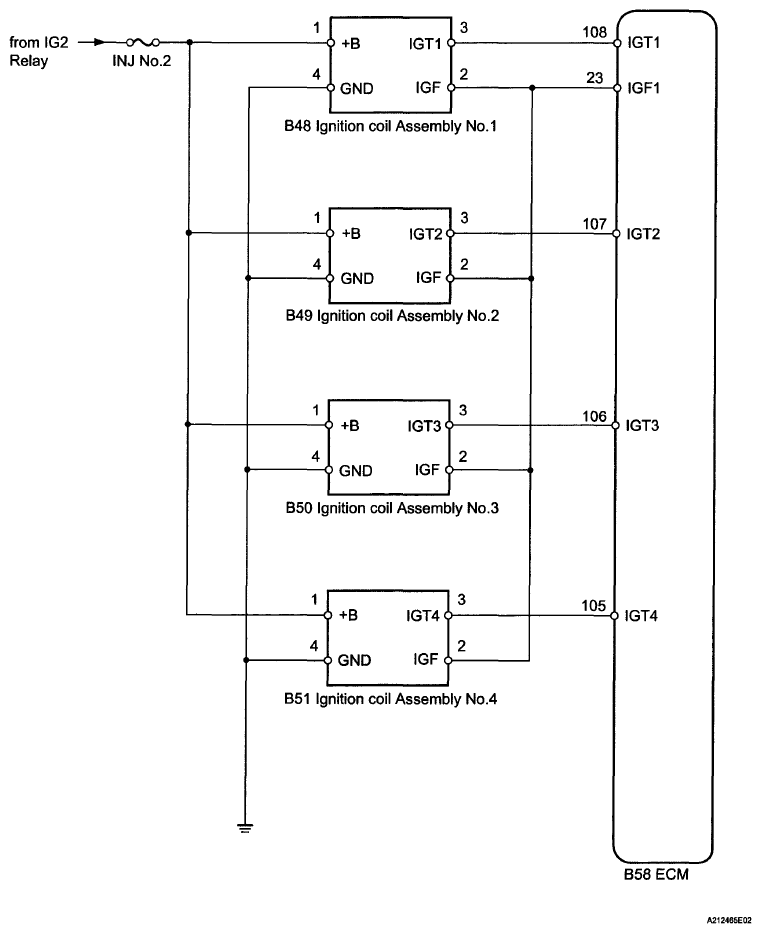

Home › Toyota › 2009 › Venza 2.7 E, AWD › Repair and Diagnosis › Engine Performance › System › Engine Control System (1AR-FE) - System Testing, Removal & Installation › Ignition System › System Diagram
