Inspection Procedure

NOTE: Inspect the fuses for circuits related to this system before performing the following inspection procedure.
  1. READ VALUE USING TECHSTREAM (STARTER SIGNAL)
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Powertrain / Engine / Data List / All Data / Starter Signal.
    5. Read the value displayed on the Techstream when the ignition switch is turned to ON and the engine is started.

      OK

      TECHSTREAM DISPLAY CHART

      Condition Techstream Display
      Ignition switch ON Close (starter signal off)
      Engine started Open (starter signal on)

      NG: Go to step 2

      OK: PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE  (See PROBLEM SYMPTOMS TABLE )

  2. CHECK ST RELAY (POWER SOURCE)
    1. Remove the ST relay from the engine room relay block.
    2. Measure the voltage according to the value (s) in the table below.

      Standard Voltage

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      2 (ST relay terminal) - Body ground Engine cranking position 11 to 14 V

      Text in Illustration

      ILLUSTRATION LEGEND

      *1 Engine Room Relay Block

      HINT:

      The engine will not crank because the relay is not installed.

    3. Reinstall the ST relay.

      Result

      RESULT CHART

      Result Proceed to
      OK A
      NG (w/o Smart Key System) B
      NG (w/ Smart Key System) C
      Fig 1: Identifying ST Relay
      G06023372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      B: Go to step 3

      C: Go to step  7

      A: REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - PARK/NEUTRAL POSITION SWITCH ASSEMBLY)

  3. CHECK HARNESS AND CONNECTOR (ST RELAY - PARK/NEUTRAL POSITION SWITCH ASSEMBLY - ECM)
    1. Remove the ST relay from the engine room relay block.

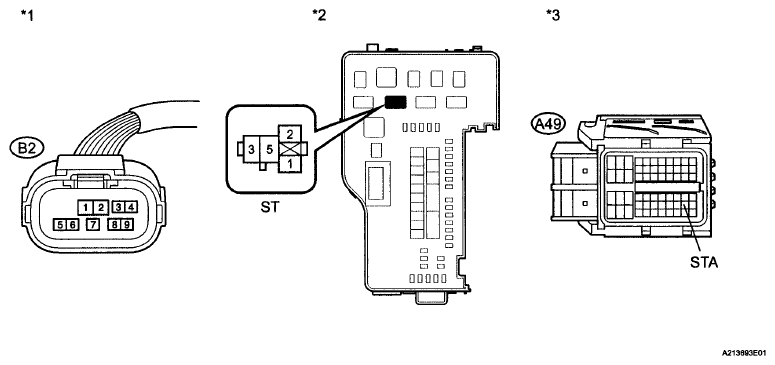

      Fig 2: Checking Harness And Connector (ST Relay - Park/Neutral Position Switch Assembly - ECM)
      G06023373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the park/neutral position switch assembly connector.
    3. Disconnect the ECM connector.
    4. Measure the resistance according to the value (s) in the table below.

      Standard Resistance (Check for Open)

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      2 (ST relay terminal) - B2-9 Always Below 1 Ω

      Standard Resistance (Check for Short)

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      2 (ST relay terminal) or B2-9 or A49-48 (STA) - Body ground Always 10 kΩ or higher

      Text in Illustration

      ILLUSTRATION LEGEND

      *1 Front view of wire harness connector (to Park/Neutral Position Switch Assembly) *2 Engine Room Relay Block
      *3 Front view of wire harness connector (to ECM) - -
    5. Reinstall the ST relay.
    6. Reconnect the ECM connector.
    7. Reconnect the park/neutral position switch assembly connector.

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (ST RELAY - PARK/NEUTRAL POSITION SWITCH ASSEMBLY - ECM)

      OK: Go to Next Step

  4. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Inspect the park/neutral position switch assembly (See ON-VEHICLE INSPECTION ).

      NG: REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY  (See REMOVAL )

      OK: Go to Next Step

  5. CHECK HARNESS AND CONNECTOR (IGNITION SWITCH - ECM - PARK/NEUTRAL POSITION SWITCH)
    1. Disconnect the ignition switch assembly connector.

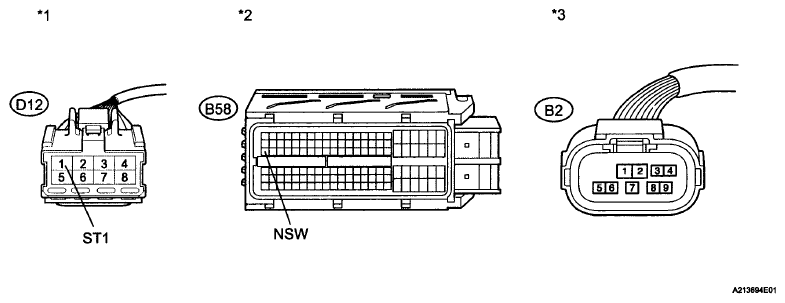

      Fig 3: Checking Harness And Connector (Ignition Switch - ECM - Park/Neutral Position Switch)
      G06023374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the park/neutral position switch assembly connector.
    3. Disconnect the ECM connector.
    4. Measure the resistance according to the value (s) in the table below.

      Standard Resistance (Check for Open)

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      D12-1 (ST1) - B58-47 (NSW) Always Below 1 Ω
      D12-1 (ST1) - B2-4 Always Below 1 Ω

      Standard Resistance (Check for Short)

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      D12-1 (ST1) or B58-47 (NSW) or B2-4 - Body ground Always 10 kΩ or higher

      Text in Illustration

      ILLUSTRATION LEGEND

      *1 Front view of wire harness connector (to Ignition Switch Assembly) *2 Front view of wire harness connector (to ECM)
      *3 Front view of wire harness connector (to Park/Neutral Position Switch Assembly) - -
    5. Reconnect the ECM connector.
    6. Reconnect the park/neutral position switch assembly connector.
    7. Reconnect the ignition switch assembly connector.

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (IGNITION SWITCH - ECM - PARK/NEUTRAL POSITION SWITCH)

      OK: Go to Next Step

  6. INSPECT IGNITION SWITCH ASSEMBLY
    1. Disconnect the ignition switch assembly connector.
    2. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Switch Position Specified Condition
      All terminals LOCK 10 kΩ or higher
      2-3 ACC Below 1 Ω
      2 - 3 - 4, 6 - 7 ON
      1 - 2 - 4,6 - 7 - 8 START

      Text in Illustration

      ILLUSTRATION LEGEND

      *1 Component without harness connected (Ignition Switch Assembly)
    3. Reconnect the ignition switch assembly connector.
      Fig 4: Identifying Ignition Switch Assembly Connector Terminals
      G06023375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPLACE IGNITION SWITCH ASSEMBLY  (See IGNITION SWITCH )

      OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (IGNITION SWITCH ASSEMBLY - BATTERY)

  7. CHECK HARNESS AND CONNECTOR (ST RELAY - POWER MANAGEMENT CONTROL ECU - PNP SWITCH - ECM)
    1. Disconnect the ECM connector.

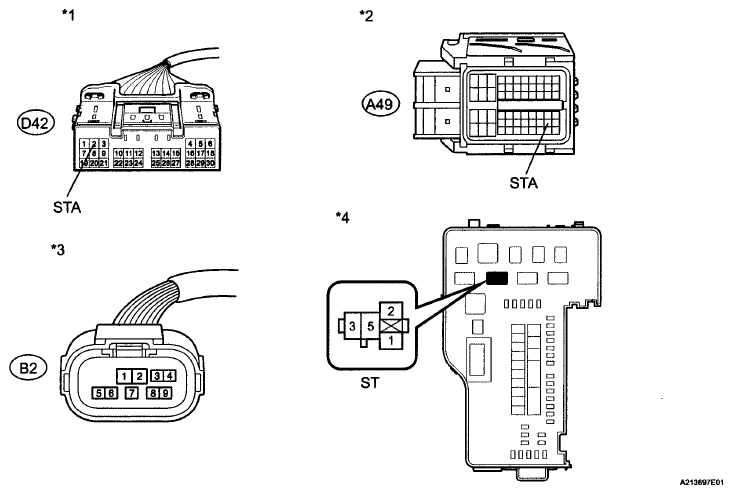

      Fig 5: Checking Harness And Connector (ST Relay - Power Management Control ECU - PNP Switch - ECM)
      G06023376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the park/neutral position switch assembly connector.
    3. Disconnect the power management control ECU connector.
    4. Remove the ST relay from the engine room relay block.
    5. Measure the resistance according to the value (s) in the table below.

      Standard Resistance (Check for Open)

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      2 (ST relay terminal) - B2-9 Always Below 1 Ω
      2 (ST relay terminal) - D42-2 (STA) Always Below 1 Ω

      Standard Resistance (Check for Short)

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      2 (ST relay terminal) or A49-48 (STA) or B2-9 or D42-2 (STA) - Body ground Always 10 kΩ or higher

      Text in Illustration

      ILLUSTRATION LEGEND

      *1 Front view of wire harness connector (to Power Management Control ECU) *2 Front view of wire harness connector (to ECM)
      *3 Front view of wire harness connector (to Park/Neutral Position Switch Assembly) *4 Engine Room Relay Block
    6. Reconnect the ECM connector.
    7. Reconnect the park/neutral position switch assembly connector.
    8. Reconnect the power management control ECU connector.
    9. Reinstall the ST relay.

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (ST RELAY - POWER MANAGEMENT CONTROL ECU - PNP SWITCH - ECM)

      OK: Go to Next Step

  8. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Inspect the park/neutral position switch assembly (See ON-VEHICLE INSPECTION ).

      NG: REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY  (See REMOVAL )

      OK: Go to Next Step

  9. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - ECM PNP SWITCH)
    1. Disconnect the power management control ECU connector.

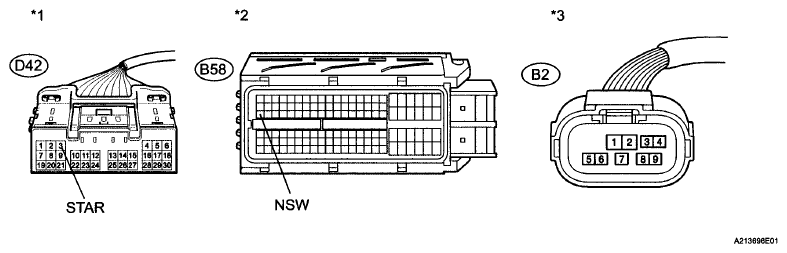

      Fig 6: Checking Harness And Connector (Power Management Control ECU - ECM PNP Switch)
      G06023377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the ECM connector.
    3. Disconnect the park/neutral position switch assembly connector.
    4. Measure the resistance according to the value (s) in the table below.

      Standard Resistance (Check for Open)

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      D42-3 (STAR) - B58-47 (NSW) Always Below 1 Ω
      D42-3 (STAR) - B2-4 Always Below 1 Ω

      Standard Resistance (Check for Short)

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      D42-3 (STAR) or B58-47 (NSW) or B2-4 - Body ground Always 10 kΩ or higher

      Text in Illustration

      ILLUSTRATION LEGEND

      *1 Front view of wire harness connector (to Power Management Control ECU) *2 Front view of wire harness connector (to ECM)
      *3 Front view of wire harness connector (to Park/Neutral Position Switch Assembly) - -
    5. Reconnect the power management control ECU connector.
    6. Reconnect the park/neutral position switch assembly connector.
    7. Reconnect the ECM connector.

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER MANAGEMENT CONTROL ECU - ECM - PNP SWITCH)

      OK: GO TO SMART KEY SYSTEM  (See PROBLEM SYMPTOMS TABLE )
