Throttle Body: Components

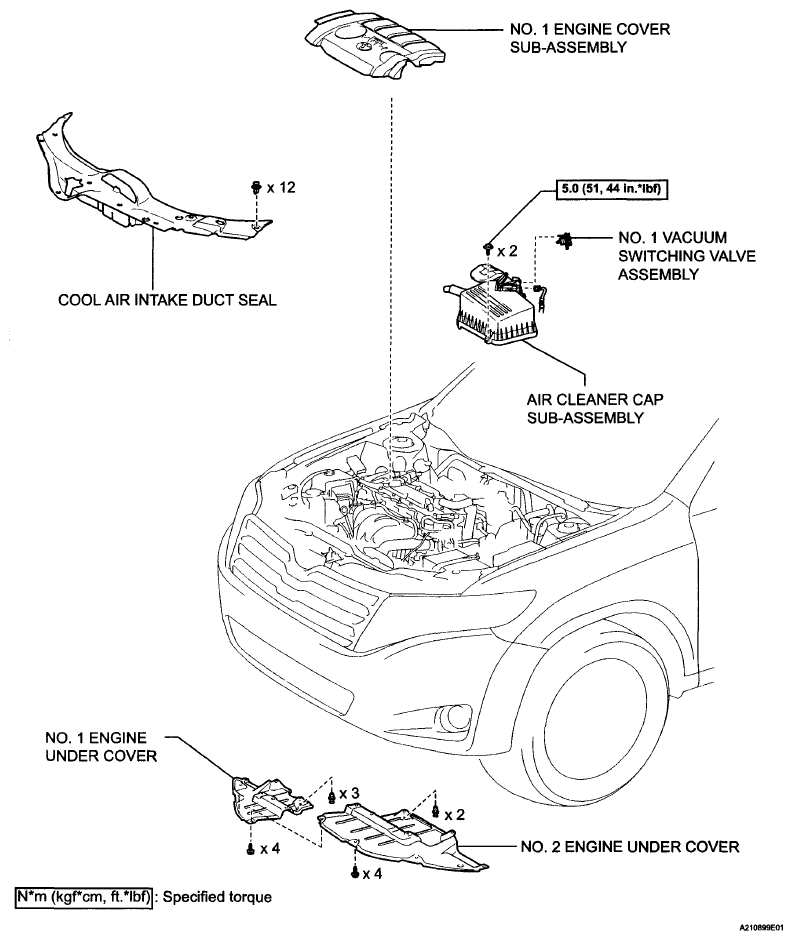

Fig 1: Identifying Throttle Body Replacement Components And Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

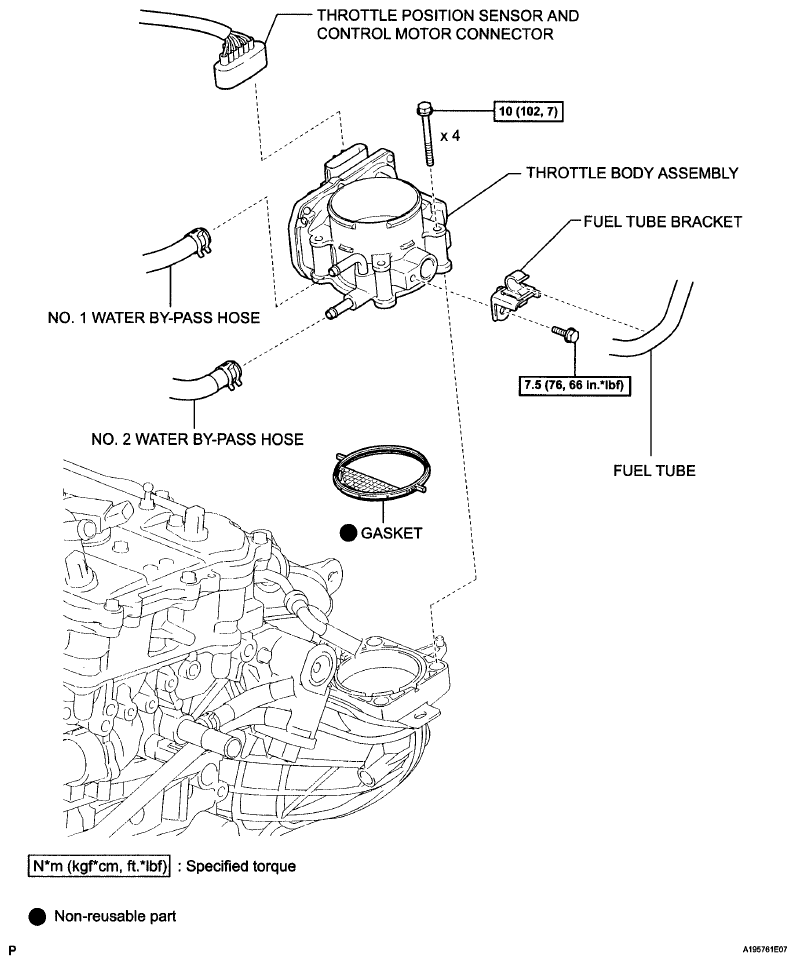

Fig 2: Identifying Throttle Body Replacement Components And Torque Specifications (2 Of 3)

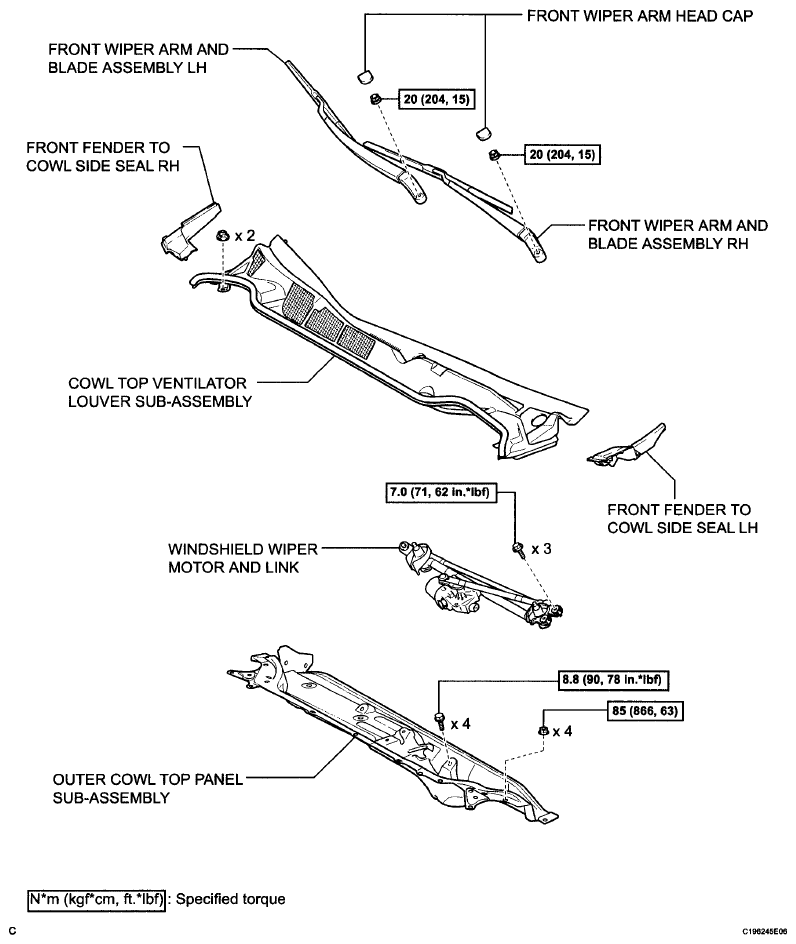

Fig 3: Throttle Body Replacement Components With Torque Specifications (3 Of 3)
