Steering Column Assembly: Removal

CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing the steering column (See AIRBAG SYSTEM ).
  1. PRECAUTION

    HINT:

    (See STEERING SYSTEM )

  2. TURN FRONT WHEELS TO FACE STRAIGHT AHEAD
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  4. REMOVE FRONT WHEEL LH
  5. REMOVE LOWER NO. 3 STEERING WHEEL COVER  (See REMOVAL )
  6. REMOVE LOWER NO. 2 STEERING WHEEL COVER  (See REMOVAL )
  7. REMOVE STEERING PAD  (See REMOVAL )
  8. REMOVE STEERING WHEEL ASSEMBLY  (See REMOVAL )
  9. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY

    HINT:

    Refer to Removal of the knee airbag assembly (See REMOVAL ).

  10. REMOVE LOWER STEERING COLUMN COVER
    1. Remove the 2 screws.
    2. Push the right and left sides of the lower steering column cover, and disengage the 2 claws to remove the lower steering column cover.
    Fig 1: Identifying Lower Steering Column Cover Claws
    G06026521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE UPPER STEERING COLUMN COVER
    1. Disengage the claw.
      Fig 2: Identifying Upper Steering Column Cover Claw
      G06026522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 clips and 2 guides to remove the upper steering column cover.
  12. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    1. Disconnect the connectors from the turn signal switch assembly with spiral cable sub-assembly.
      Fig 3: Identifying Upper Steering Column Cover Clips And Guides
      G06026523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using pliers, expand the clamp.

      Text in Illustration

      ILLUSTRATION REFERENCE

      *1 Clamp
      *2 Claw

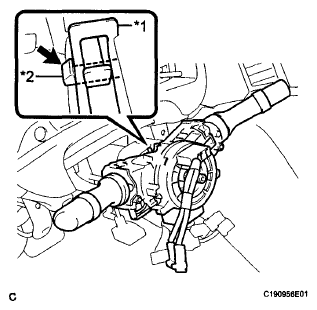

      Fig 4: Identifying Clamp And Claw
      G06026524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. While holding the clamp expanded, raise the claw using a screwdriver to disengage it, and then remove the turn signal switch assembly with spiral cable sub-assembly from the steering column assembly.
    NOTE:
    • Do not replace the spiral cable with the battery connected and the engine switch on (IG).
    • Do not rotate the spiral cable with the battery connected and the engine switch on (IG).
    • Ensure that the steering wheel is installed and aligned straight when inspecting the steering sensor.
    • Do not remove the steering sensor from the spiral cable.
  13. REMOVE TRANSPONDER KEY AMPLIFIER (w/o Smart Key System)
    1. Slide the transponder key amplifier to disengage the 2 claws as shown in the illustration.
      Fig 5: Sliding Transponder Key Amplifier
      G06010350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the transponder key amplifier.
    Fig 6: Locating Transponder Key Amplifier Connector
    G06010351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. SEPARATE STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Using a screwdriver, loosen the clamp.
      Fig 7: Loosening Clamp
      G06026527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt.
      NOTE: Do not separate the steering intermediate shaft assembly from the power steering link assembly.
      Fig 8: Locating Steering Intermediate Shaft Assembly Bolt
      G06026528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Put matchmarks on the steering intermediate shaft assembly and the power steering link assembly.

      Text in Illustration

      ILLUSTRATION REFERENCE

      *1 Matchmark
      Fig 9: Identifying Matchmarks On Steering Intermediate Shaft Assembly And Power Steering Link Assembly
      G06026529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Separate the steering intermediate shaft assembly from the power steering link assembly.
  15. REMOVE STEERING POST ASSEMBLY
    1. Disconnect the connector from the power steering ECU assembly.

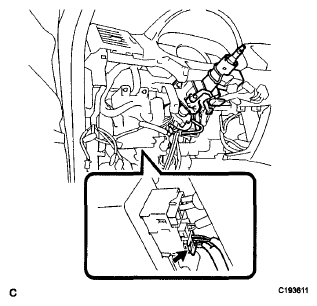

      Fig 10: Locating Power Steering ECU Assembly Connector
      G06026530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector from the power steering ECU assembly.

      HINT:

      Pull out the lock of the lock lever, disengage the claw, and raise the lock lever to disconnect the connector as shown in the illustration.

    3. Disconnect the connectors and disengage the wire harness clamps from the steering post assembly.

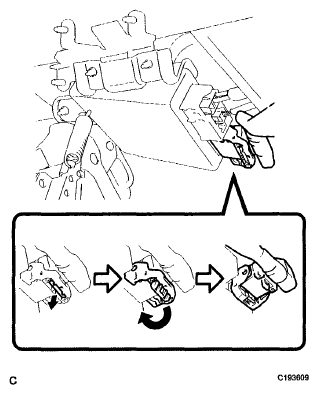

      Fig 11: Disconnecting Connector From Power Steering ECU Assembly
      G06026531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the bolt, 2 nuts, and the steering post assembly.
    Fig 12: Locating Steering Post Assembly Bolt And Nuts
    G06026532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Remove the bolt and slide the steering intermediate shaft assembly.
      NOTE: Do not separate the steering intermediate shaft assembly from the steering column assembly.
      Fig 13: Identifying Steering Intermediate Shaft Assembly Bolt
      G06026533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Put matchmarks on the steering intermediate shaft assembly and the steering column assembly.

      Text in Illustration

      ILLUSTRATION REFERENCE

      *1 Matchmark
      Fig 14: Identifying Matchmarks On Steering Intermediate Shaft Assembly And Steering Column Assembly
      G06026534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the steering intermediate shaft assembly from the steering column assembly.
