Steering System: Adjustment

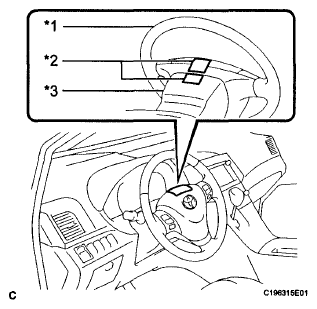

1. Apply masking tape on the top center of the steering wheel and steering column upper cover.

   Text in Illustration

   ILLUSTRATION REFERENCE



   *1	Steering Wheel
   *2	Masking Tape
   *3	Upper Steering Column Cover

   Fig 1: Identifying Masking Tape On Top Center Of Steering Wheel And Steering Column Upper Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Drive the vehicle in a straight line for 100 meters at a constant speed of 56 km/h (35 mph), while holding the steering wheel to maintain the course.
3. Draw a line on the masking tape as shown in the illustration.

   Text in Illustration

   ILLUSTRATION REFERENCE



   *1	Upper Steering Column Cover
   *2	Marked Line
   *3	Steering Wheel

   Fig 2: Identifying Line On Masking Tape

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Turn the steering wheel to the center position.

   HINT:

   Look at the upper surface of the steering wheel, steering spoke, and SRS airbag line to find the center position.

5. Draw a new line on the masking tape on the steering wheel as shown in the illustration.

   Text in Illustration

   ILLUSTRATION REFERENCE



   *1	Upper Steering Column Cover
   *2	Marked Line
   *3	Steering Wheel

   Fig 3: Measuring Distance Between Lines On Masking Tape On Steering Wheel

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Measure the distance between the 2 lines on the masking tape on the steering wheel.
7. Convert the measured distance to steering angle.

HINT:

• Measured distance 1 mm (0.0394 in.) = steering angle of approximately 1 degree.
• Make a note of the steering angle.

1. Draw a matchmark on the RH and LH tie rod ends and rack ends respectively where it can be easily seen.

   Text in Illustration

   ILLUSTRATION REFERENCE



   *1

   Matchmark

   Fig 4: Identifying Matchmark On RH And LH Tie Rod Ends And Rack Ends

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a paper gauge, measure the distance from the RH and LH tie rod ends to the rack end screws.

   HINT:

   • Measure both the RH and LH sides.
   • Make a note of the measured values.
3. Remove the RH and LH boot clips from the rack boots.
4. Loosen the RH and LH lock nuts.
5. Turn the RH and LH rack ends by the same amount (but in different directions) according to the steering angle.

   HINT:

   One 360 degree turn of the rack end (1.5 mm (0.0591 in.) horizontal movement) equals to 12 degrees of steering angle.

6. Tighten the RH and LH lock nuts to the specified torque.
   Fig 5: Locating Lock Nuts And Boot Clip

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 88 N*m (897 kgf*cm, 65 ft.*lbf)

   NOTE: Make sure that the difference in length between the RH and LH tie rod ends and rack end screws is within 1.5 mm (0.0591 in.).
7. Install the RH and LH boot clips.
