Engine Control System (1AR-FE) - System Testing, Removal & Installation
›
ACIS Control Circuit
›
Wiring Diagram
ACIS Control Circuit: Wiring Diagram

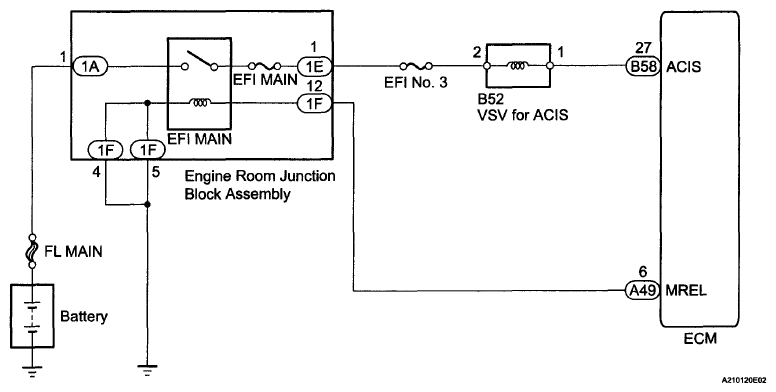

Fig 1: ACIS Control Circuit - Wiring Diagram
