Air Fuel Ratio Sensor: Installation

INSTALL AIR FUEL RATIO SENSOR

Using SST, install the air fuel ratio sensor to the exhaust manifold.

SST 09224-00010

Torque: without SST

44 N*m (449 kgf*cm, 32 ft.*lbf) with SST

40 N*m (408 kgf*cm, 30 ft.*lbf)

NOTE:

The "with SST" torque value is effective when using SST with a fulcrum length of 30 mm (1.18 in.).
The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 300 mm (11.81 in.) (See REPAIR INSTRUCTION ).
This torque value is effective when SST is parallel to the torque wrench.

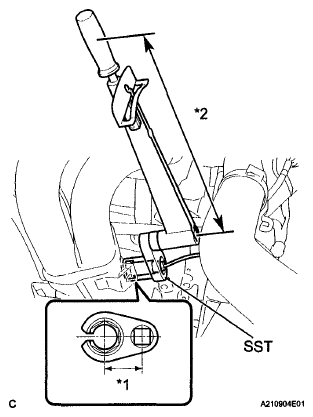

Fig 1: Installing Air Fuel Ratio Sensor To Exhaust Manifold
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Text in Illustration

ILLUSTRATION LEGEND

*1	Fulcrum Length 30 mm
*2	Fulcrum Length 300 mm

Fig 2: Locating Wire Harness Clamp And Air Fuel Ratio Sensor Connector
