Heated Oxygen Sensor: Installation

INSTALL HEATED OXYGEN SENSOR

Using SST, install the heated oxygen sensor to the front exhaust pipe.

Text in Illustration

ILLUSTRATION LEGEND

*1	Fulcrum Length 30 mm
*2	Fulcrum Length 300 mm

SST 09224-00010

Torque: without SST

44 N*m (449 kgf*cm, 32 ft.*lbf)

with SST

40 N*m (408 kgf*cm, 30 ft.*lbf)

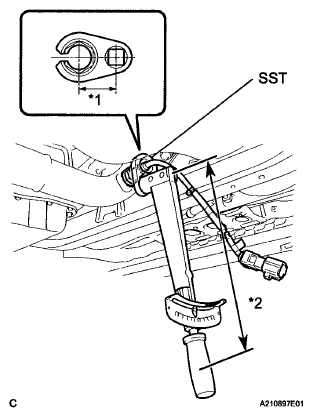

Fig 1: Installing Heated Oxygen Sensor To Front Exhaust Pipe

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

The "with SST" torque value is effective when using SST with a fulcrum length of 30 mm (1.18 in.).
The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 300 mm (11.81 in.) (See REPAIR INSTRUCTION ).
This torque value is effective when SST is parallel to the torque wrench.

Connect the heated oxygen sensor connector.

Fig 2: Locating Heated Oxygen Sensor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install the wire harness to wire harness clamp.

Fig 3: Identifying Wire Harness Clamp
