VSC OFF Indicator Light Remains ON: Wiring Diagram

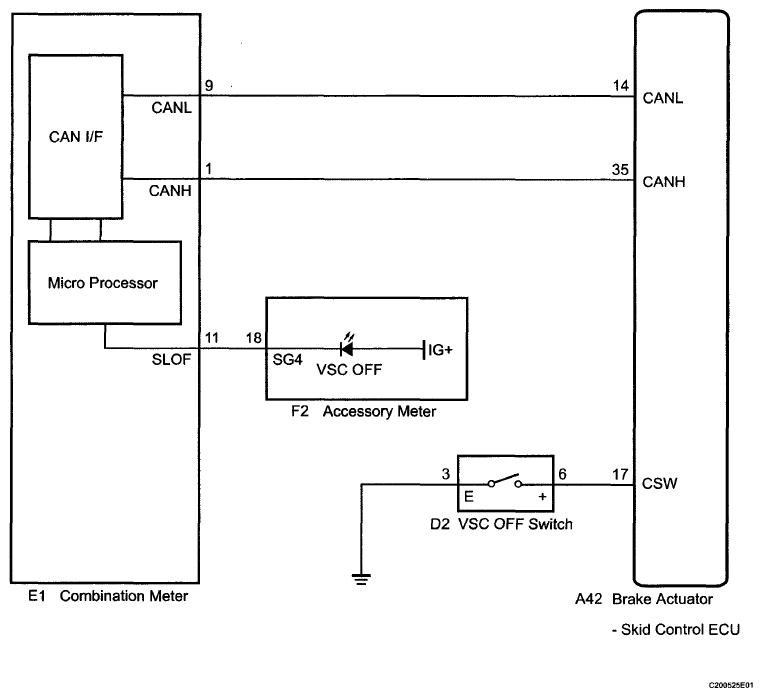

Fig 1: VSC OFF Indicator Light - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
