Engine Control System (2GR-FE) - System And Component Inspection, Testing And R & I: ECM: Components

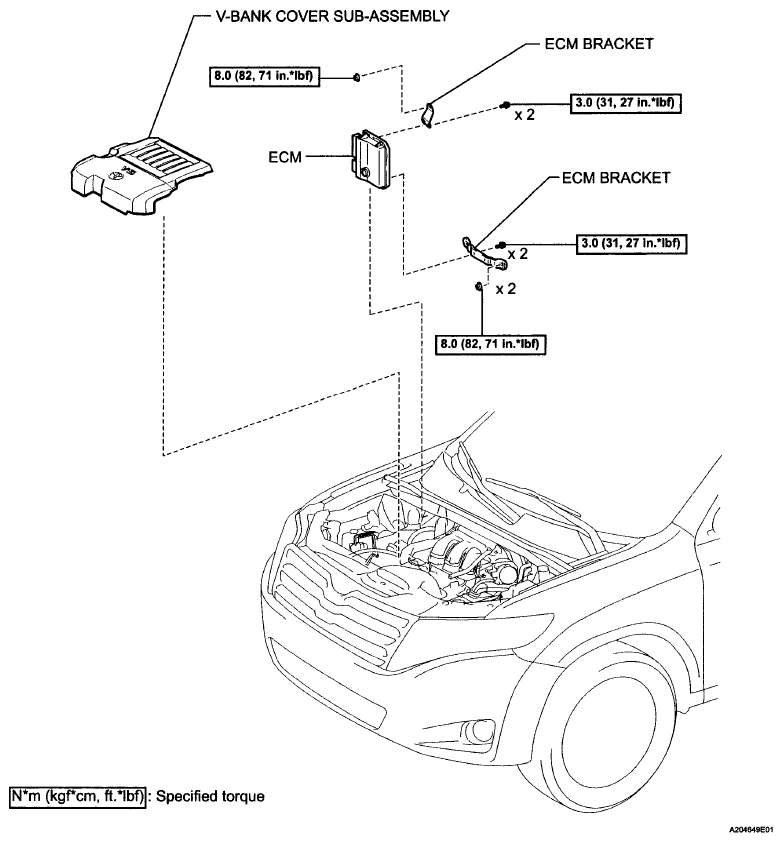

Fig 1: ECM Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
