Oil Filter: Components

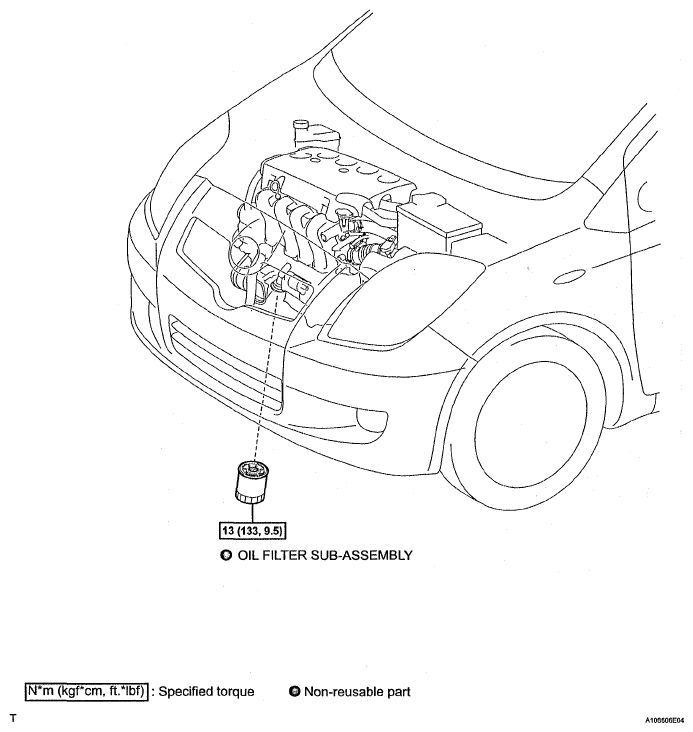

Fig 1: Oil Filter Replacement Components With Torque Specifications
G04829280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
