VC Output Circuit: Wiring Diagram

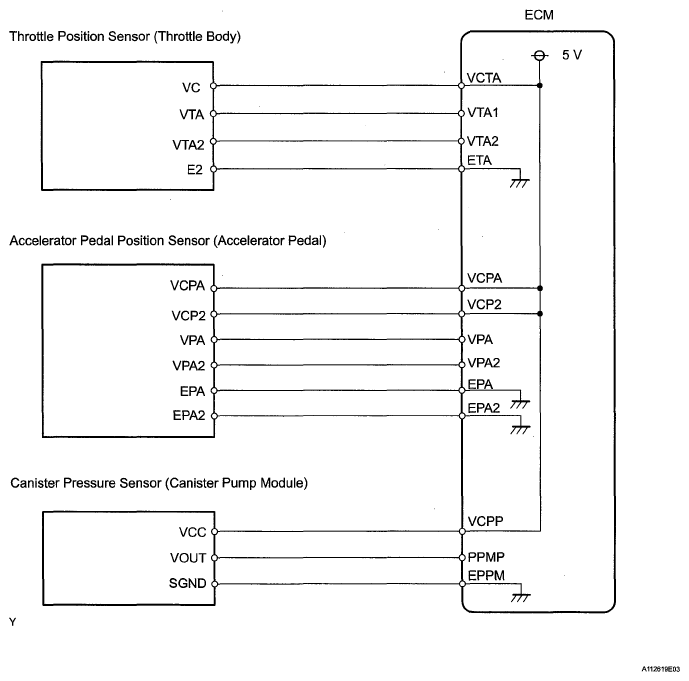

Fig 1: Throttle Position Sensor And ECM - Wiring Diagram
G05590752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
