Engine Assembly: Components

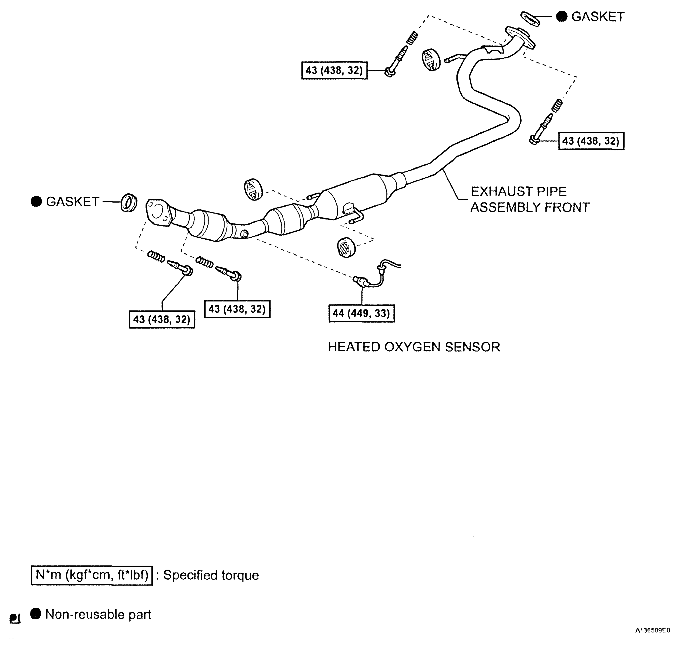

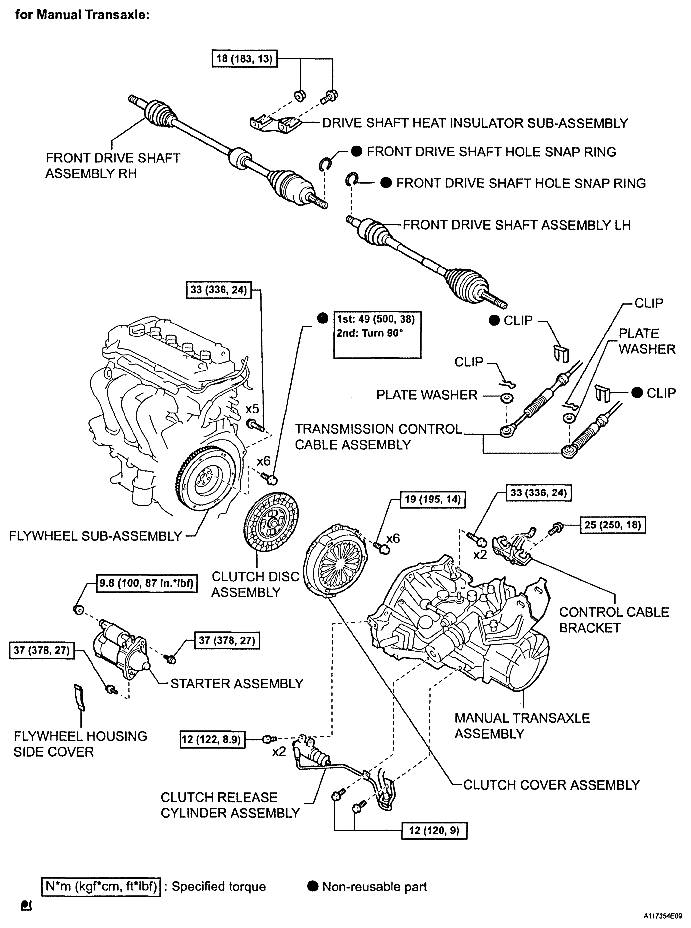

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

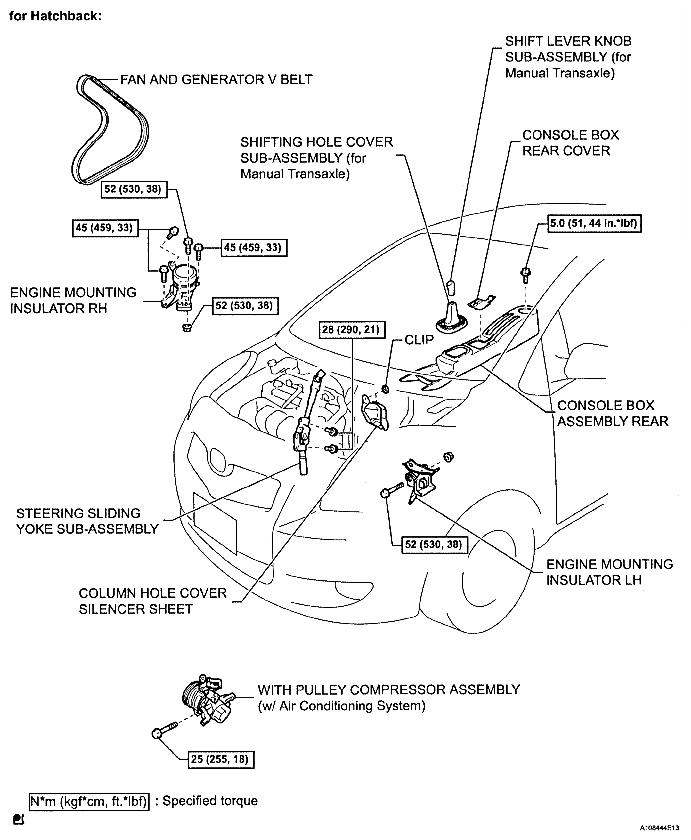

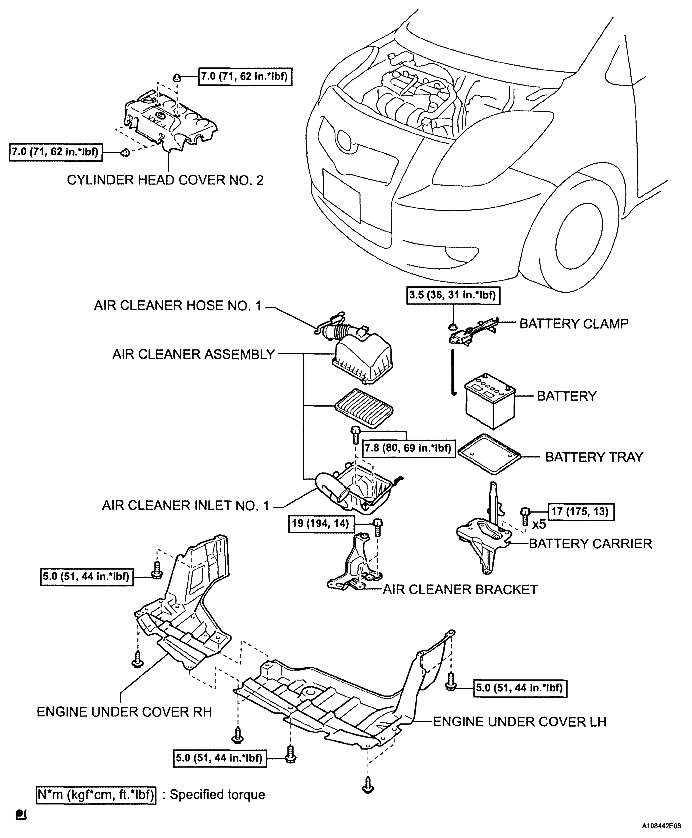

Fig 2: Identifying Engine Assembly Replacement Components With Torque Specifications (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

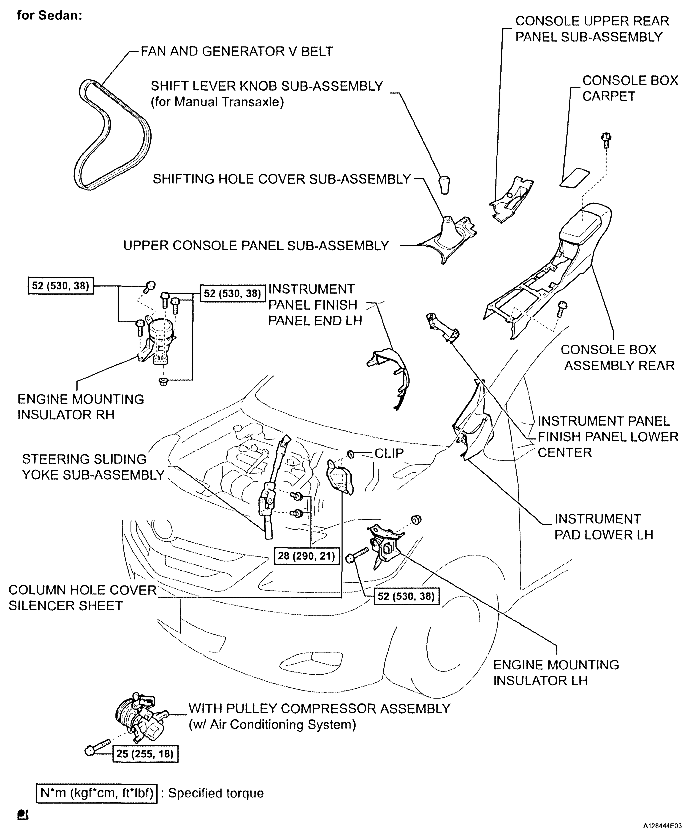

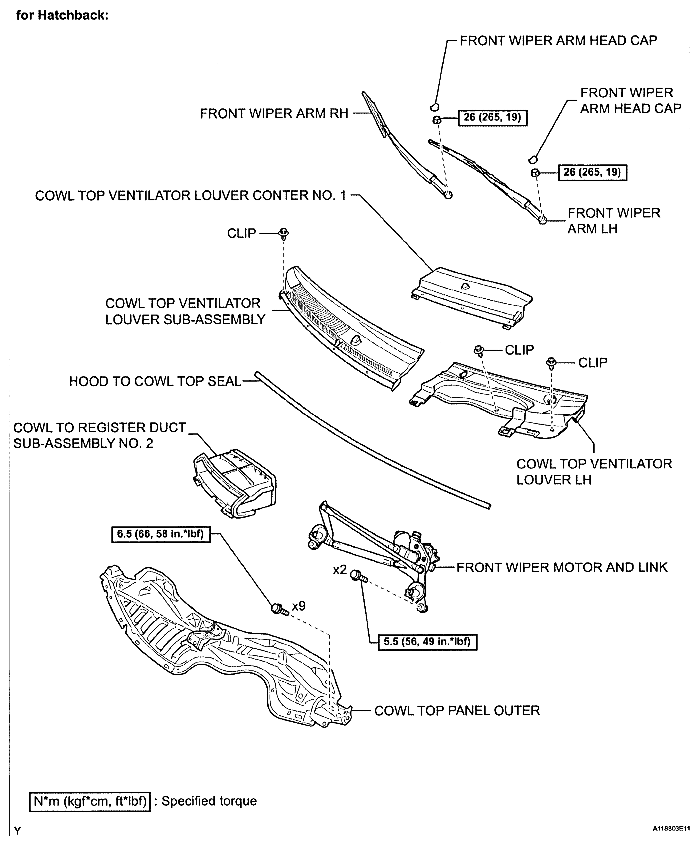

Fig 3: Identifying Engine Assembly Replacement Components With Torque Specifications (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

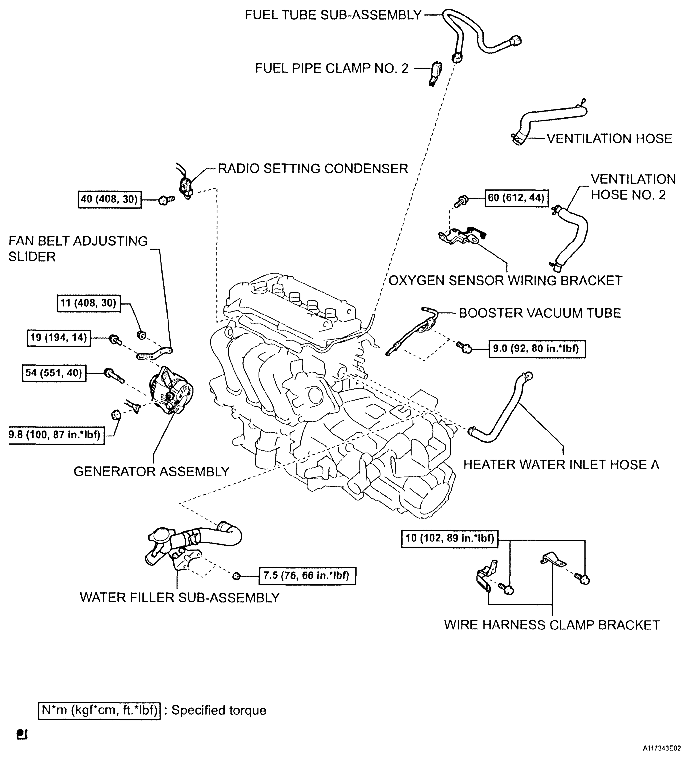

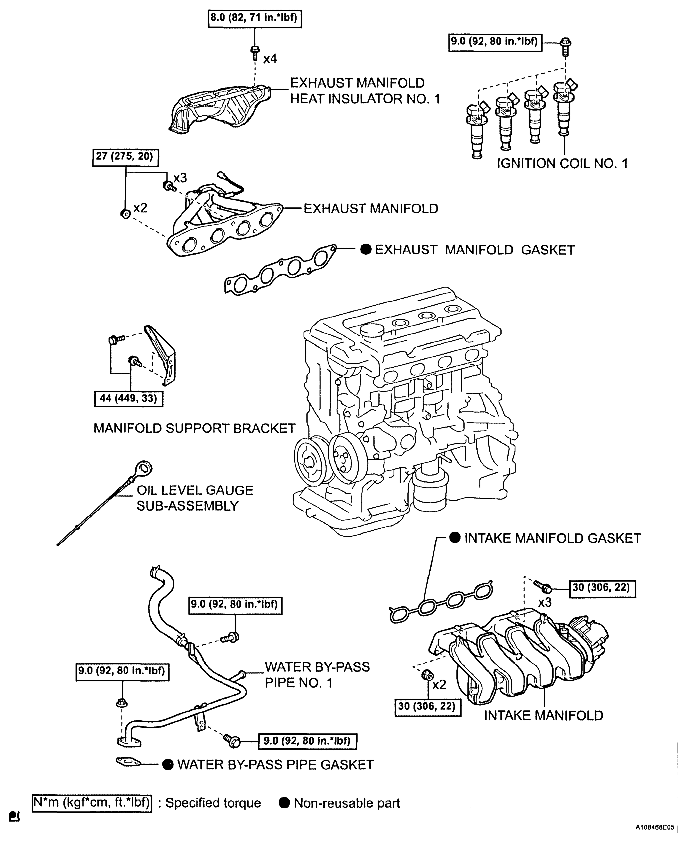

Fig 4: Identifying Engine Assembly Replacement Components With Torque Specifications (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

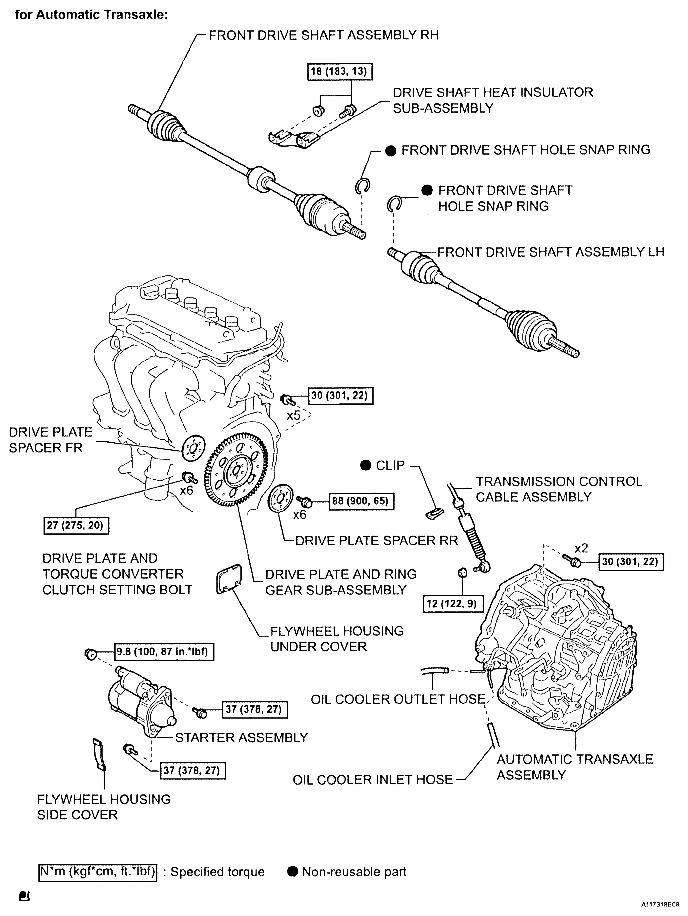

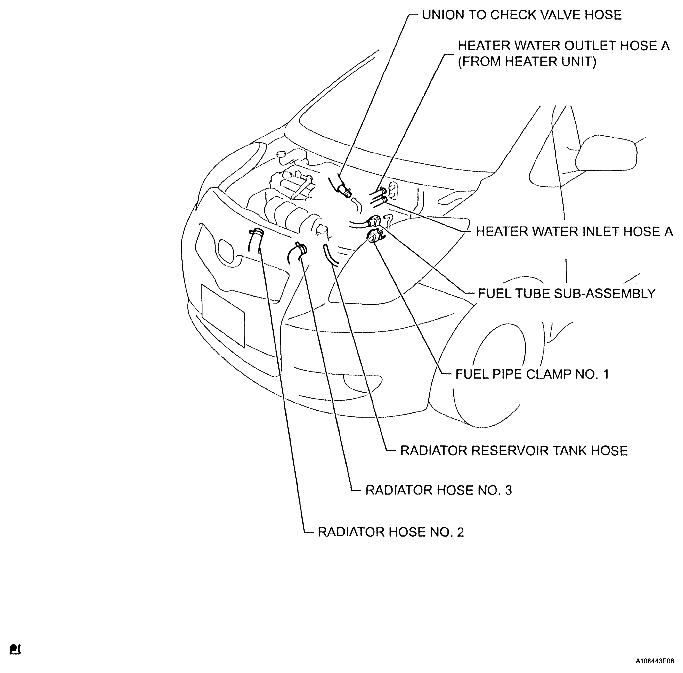

Fig 5: Identifying Engine Assembly Replacement Components With Torque Specifications (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Engine Assembly Replacement Components With Torque Specifications (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

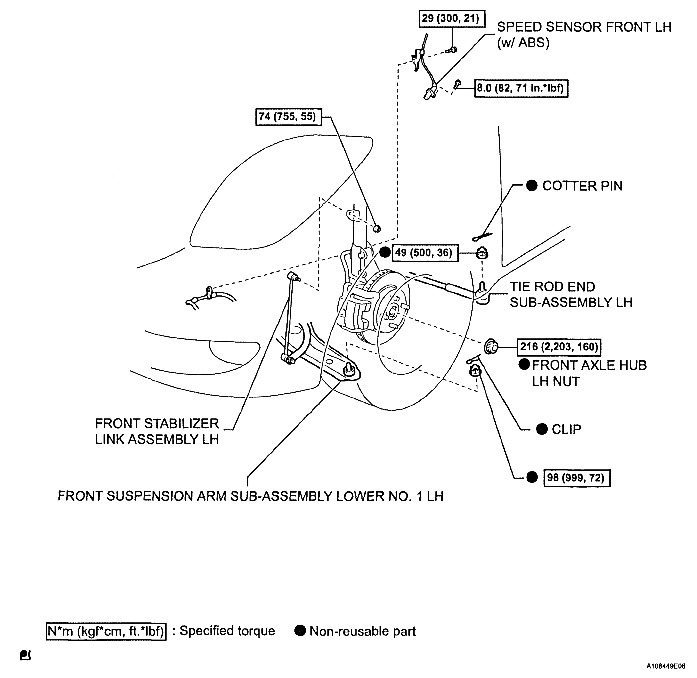

Fig 7: Identifying Engine Assembly Replacement Components With Torque Specifications (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

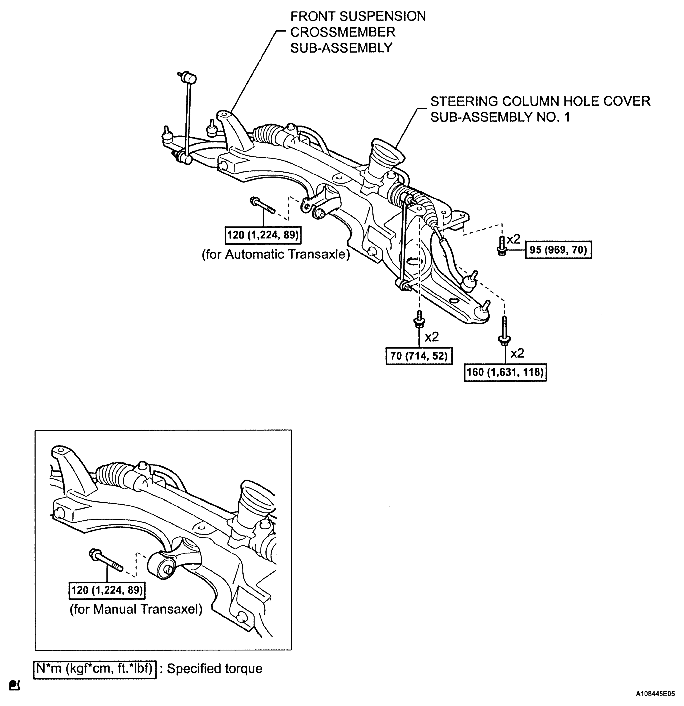

Fig 8: Identifying Engine Assembly Replacement Components With Torque Specifications (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Engine Assembly Replacement Components With Torque Specifications (9 Of 13)

Fig 10: Identifying Engine Assembly Replacement Components With Torque Specifications (10 Of 13)

Fig 11: Identifying Engine Assembly Replacement Components With Torque Specifications (11 Of 13)

Fig 12: Identifying Engine Assembly Replacement Components With Torque Specifications (12 Of 13)

Fig 13: Identifying Engine Assembly Replacement Components With Torque Specifications (13 Of 13)
