POWER SOURCE (Current Flow Chart)

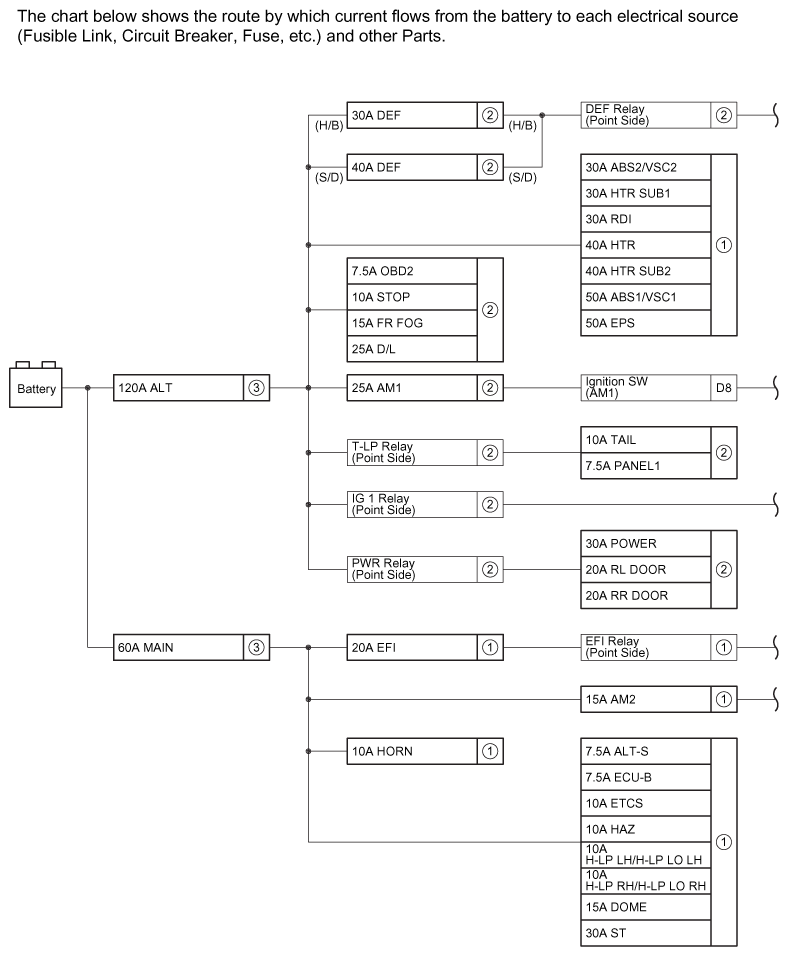

Fig 1: Current Flow Chart (1 Of 2)
G07611401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

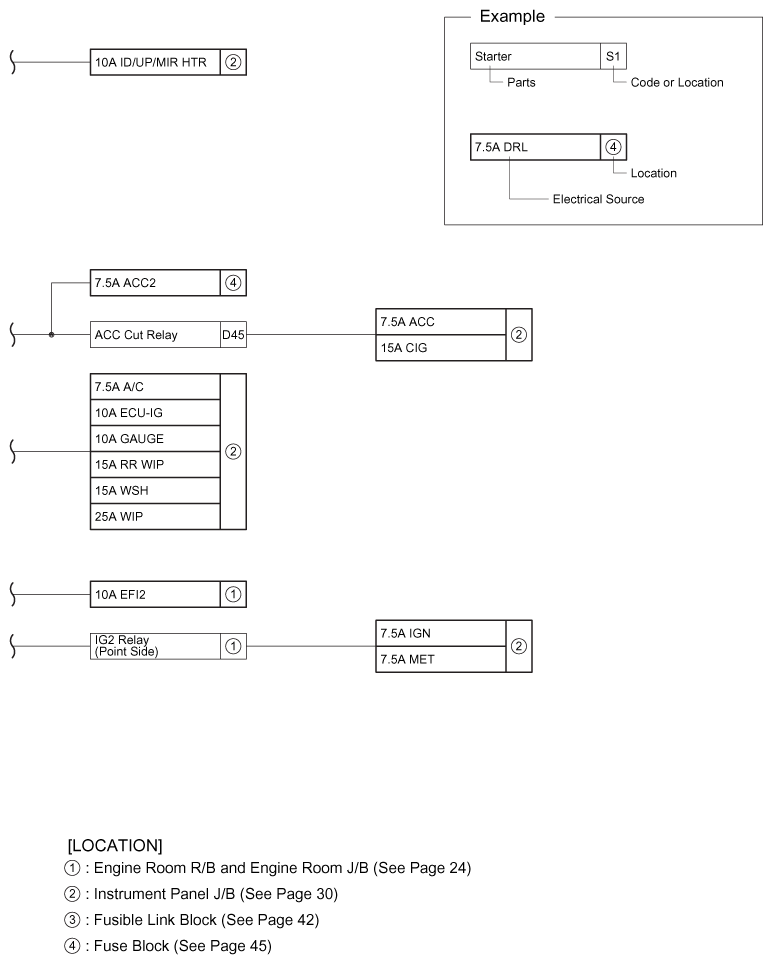

Fig 2: Current Flow Chart (2 Of 2)
G07611402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
