PCV Valve: Components

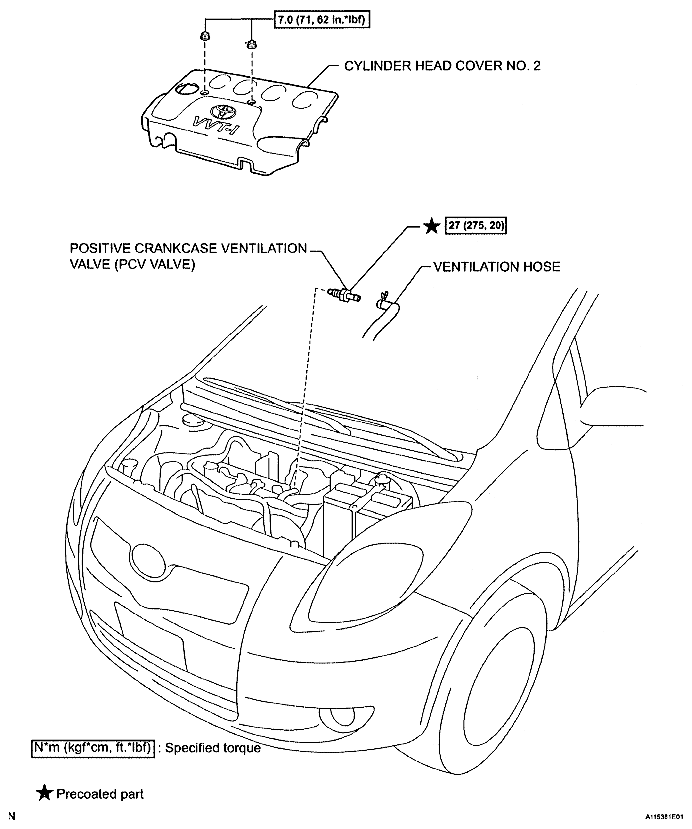

Fig 1: Ventilation Valve Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
