ECM Power Source Circuit: Wiring Diagram

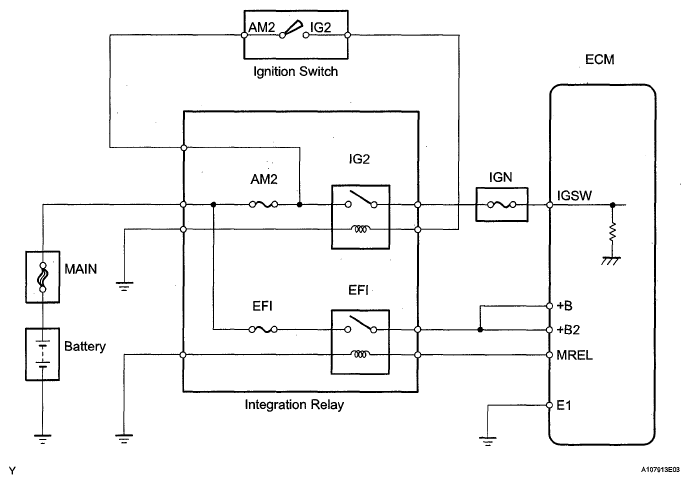

Fig 1: Ignition Switch And ECM - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
