Fuel Sender Gauge Assembly: Removal

  1. REMOVE FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY  (see REMOVAL )
  2. REMOVE FUEL SENDER GAUGE ASSEMBLY
    1. Disconnect the fuel sender gauge connector.
      Fig 1: Locating Fuel Sender Gauge Connector
      G04504577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

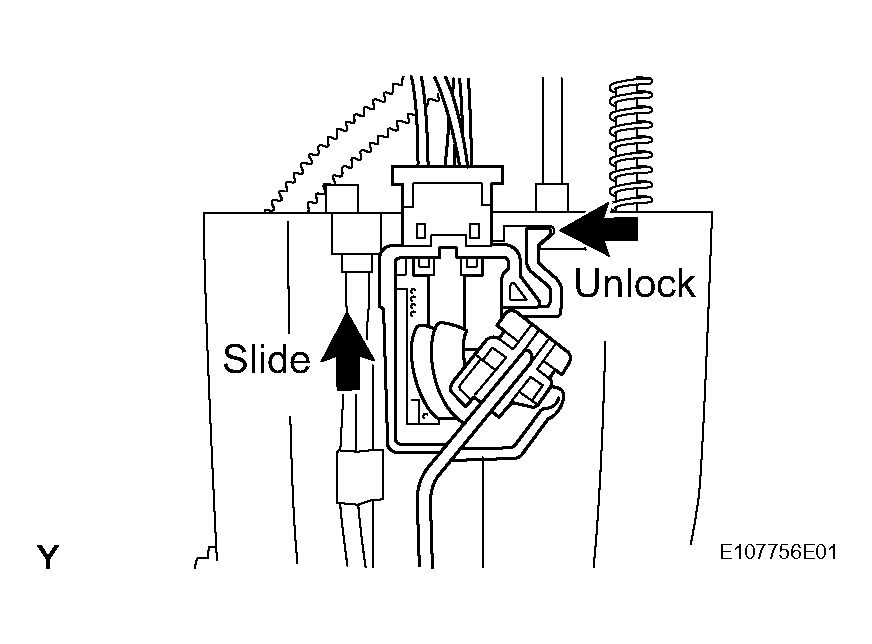

    2. Unlock the fuel sender gauge, and slide and remove it.
      Fig 2: Identifying Fuel Sender Gauge
      G04504574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
