Yaris Base, 4D Hatchback
›
Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Engine Fuel System
›
Fuel System
›
Parts Location
Parts Location

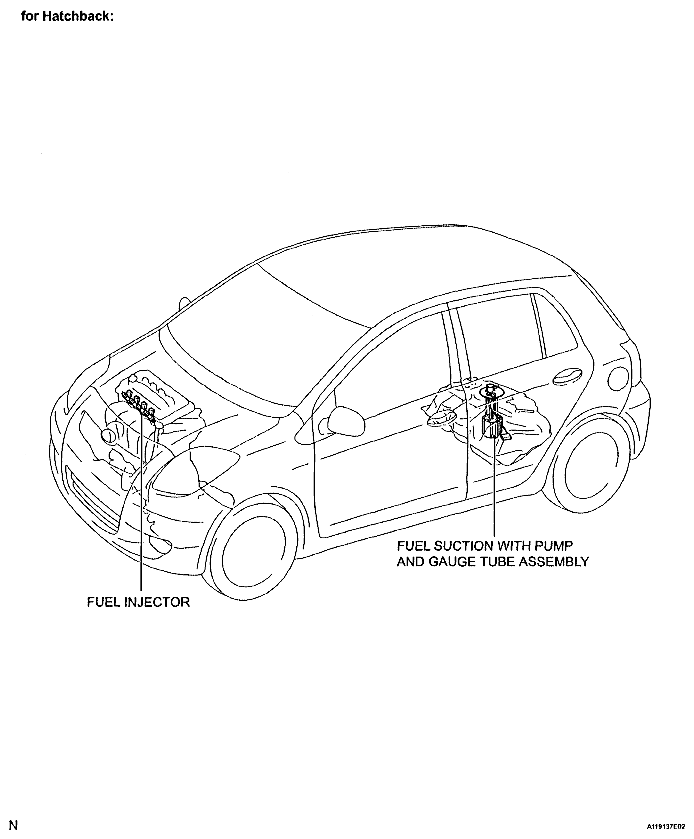

Fig 1: Locating Fuel System Parts (Hatchback)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

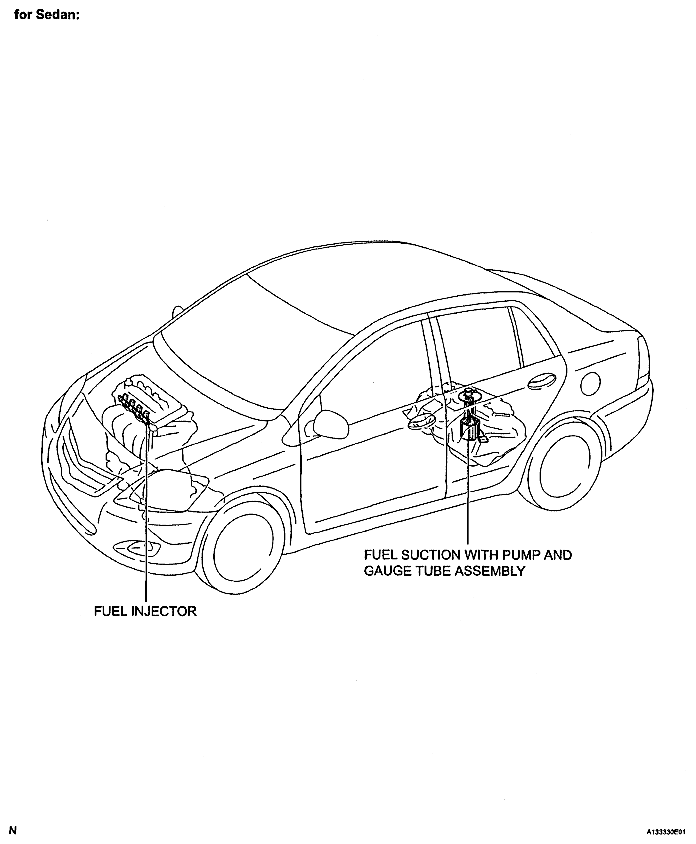

Fig 2: Locating Fuel System Parts (Sedan)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
