Headlight Dimmer Switch: Installation

WARNING: This page is about a different car, the 2009 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY
    1. Insert the headlight dimmer switch assembly so that its recessed portion matches that of the steering column shaft.
      Fig 1: Inserting Headlight Dimmer Switch Assembly
      G04475890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the headlight dimmer switch with the band clamp and claw.

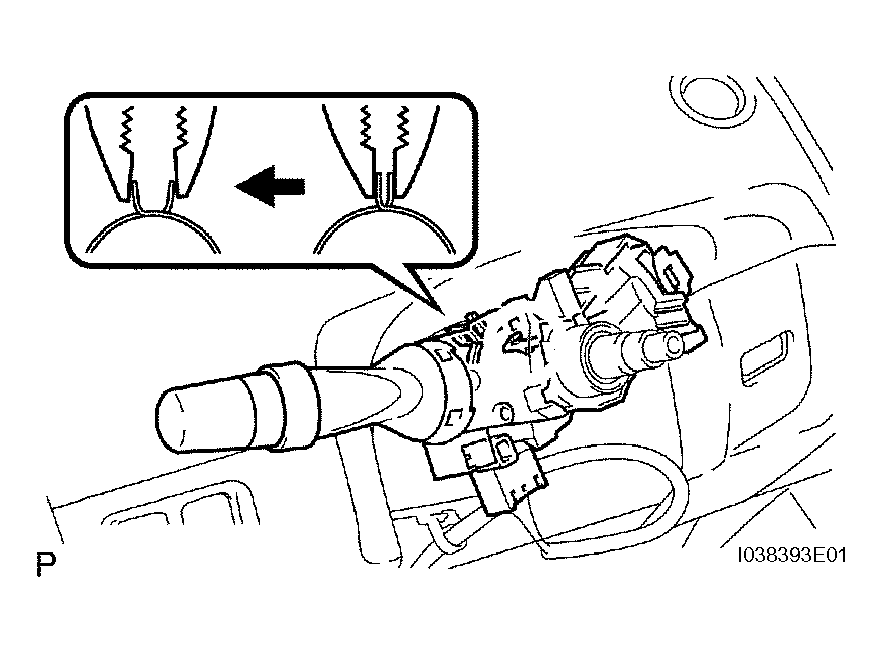

      Fig 2: Installing Headlight Dimmer Switch With Band Clamp And Claw
      G04475891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the connectors.
  2. INSTALL WIPER AND WASHER SWITCH ASSEMBLY (See  REMOVAL  )
  3. INSTALL SPIRAL CABLE SUB-ASSEMBLY (See  INSTALLATION  )
  4. INSTALL STEERING COLUMN COVER (See  INSTALLATION  )
  5. ADJUST SPIRAL CABLE SUB-ASSEMBLY (See  INSPECTION  )
  6. INSPECT STEERING WHEEL CENTER POINT (See  INSTALLATION  )
  7. INSTALL STEERING WHEEL ASSEMBLY (See  INSTALLATION  )
  8. INSTALL STEERING PAD ASSEMBLY (See  INSTALLATION  )
  9. INSTALL NO. 3 STEERING WHEEL COVER LOWER
  10. INSTALL NO. 2 STEERING WHEEL COVER LOWER
  11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  12. INSPECT STEERING PAD ASSEMBLY (See  ON-VEHICLE INSPECTION  )
  13. CHECK SRS WARNING LIGHT (See  DIAGNOSIS SYSTEM  )
  14. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
