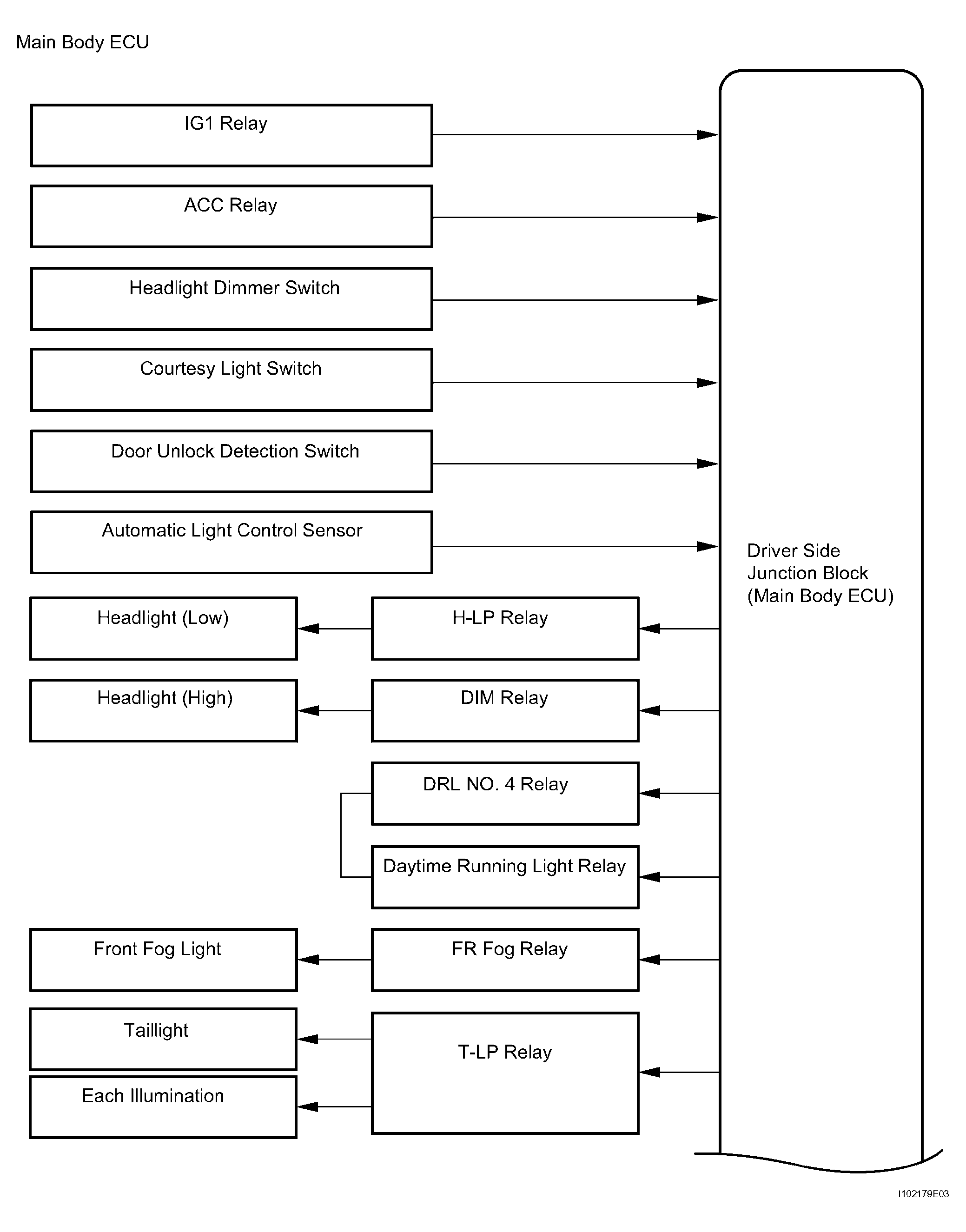

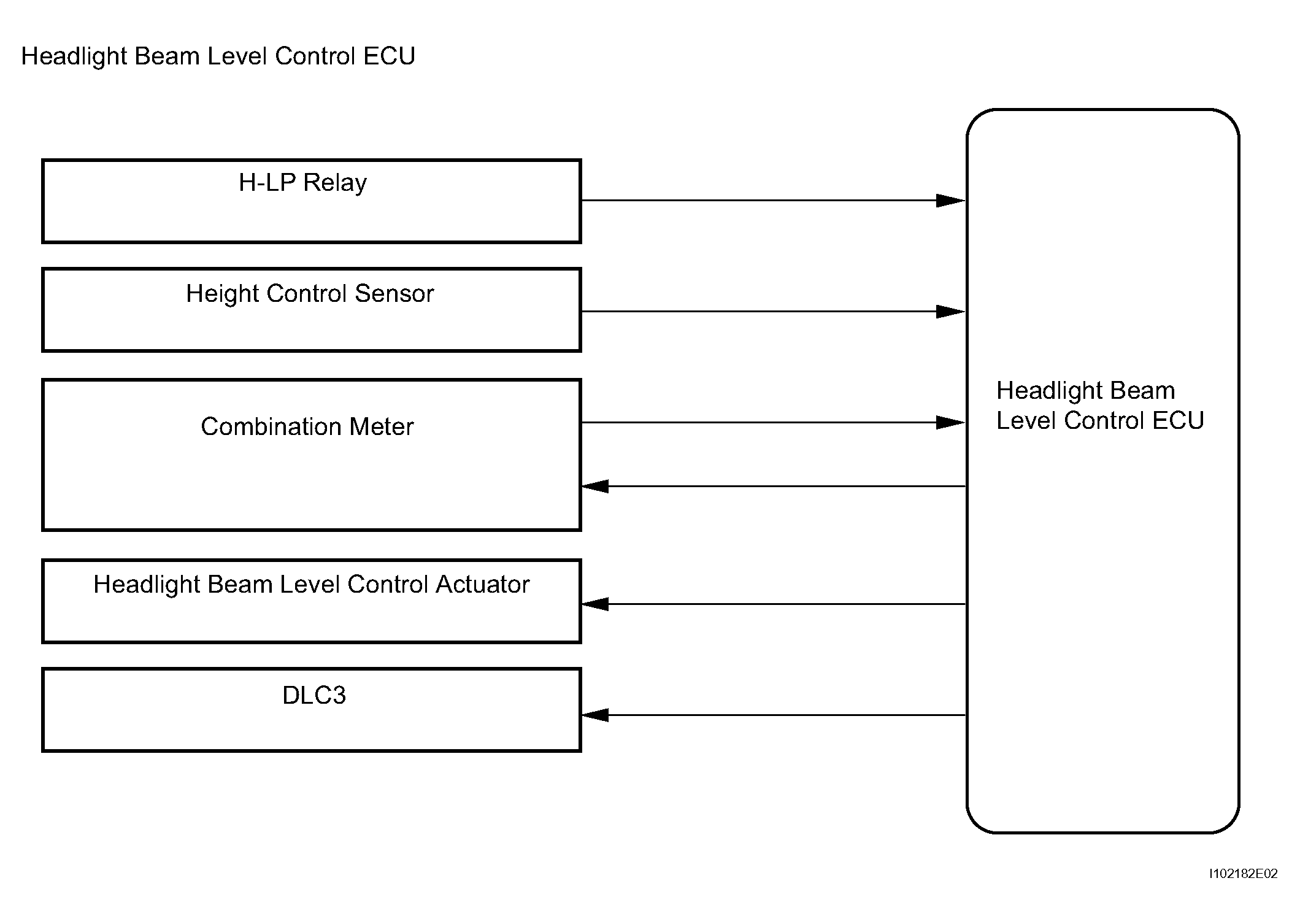

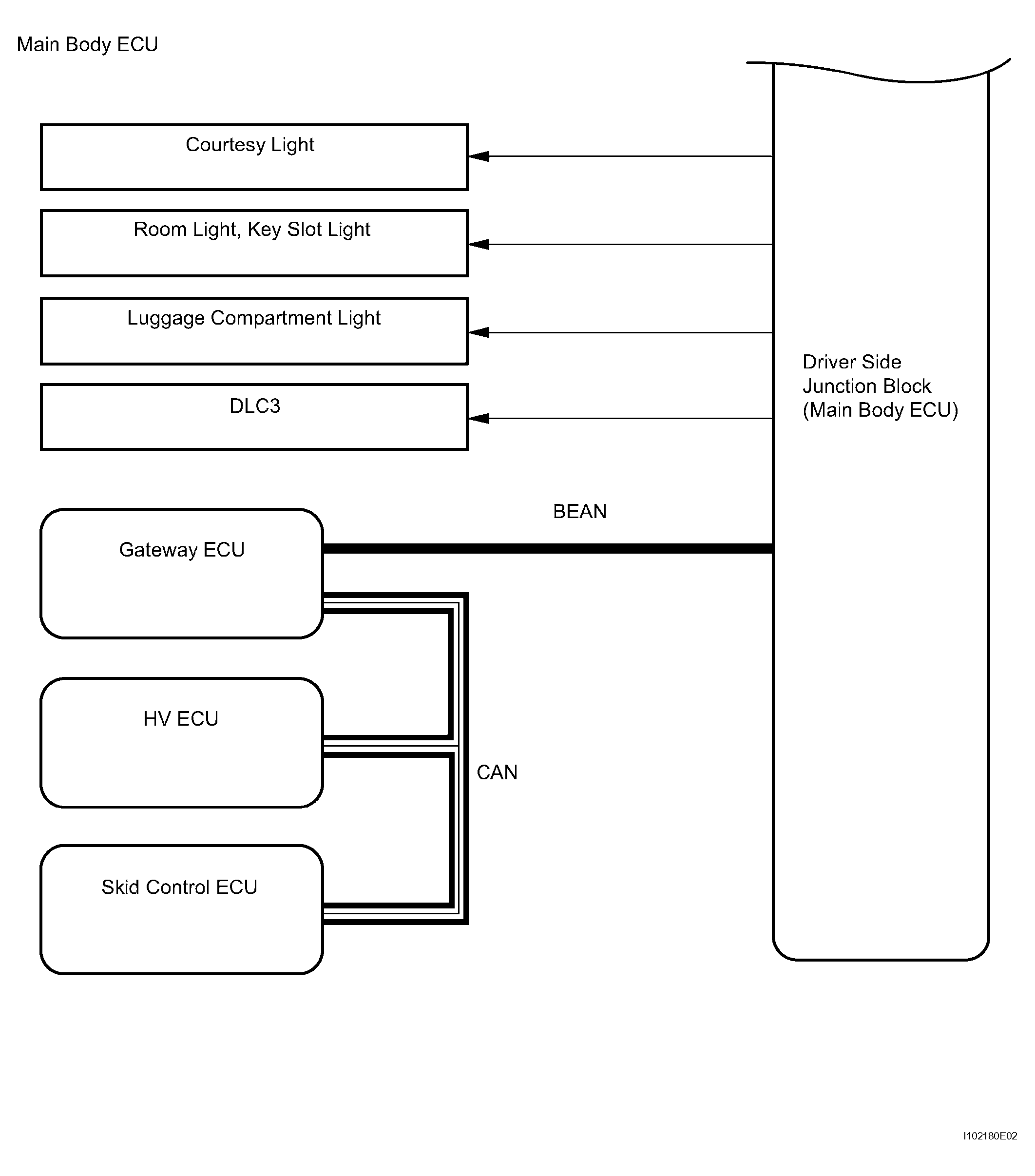

System Diagram
WARNING: This page is about a different car, the 2009 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Input and output signal of each ECU
EACH ECU INPUT/OUTPUT SIGNAL
| Transmitter |
Receiving |
Signal |
Communication Method |
| HV ECU |
Body ECU |
Ready condition signal |
CAN - BEAN |
| Skid Control ECU |
Body ECU |
Parking brake switch signal |
CAN - BEAN |
