Front Shock Absorber With Coil Spring: Components

Fig 1: Front Stabilizer Bar Replacement Components (3 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

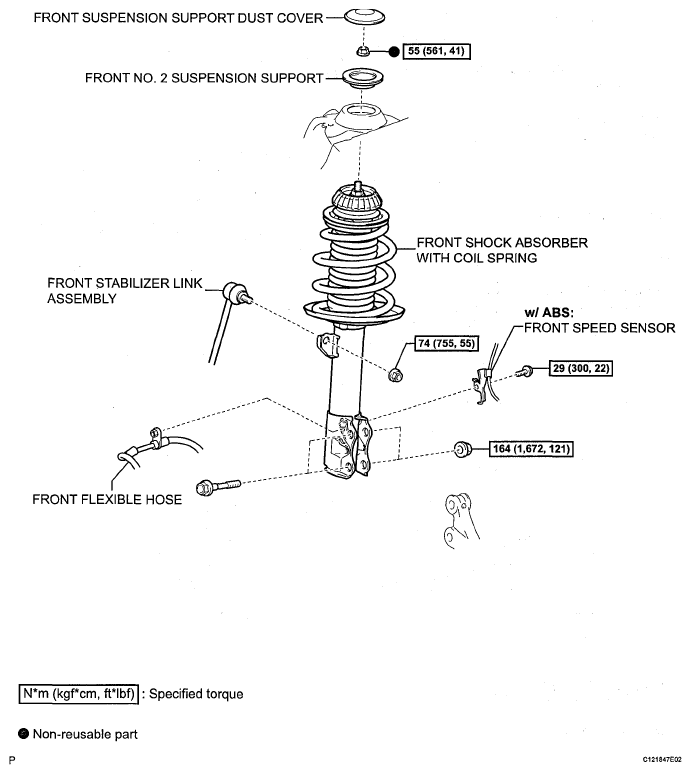

Fig 2: Front Shock Absorber With Coil Spring Replacement Components (2 Of 4) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

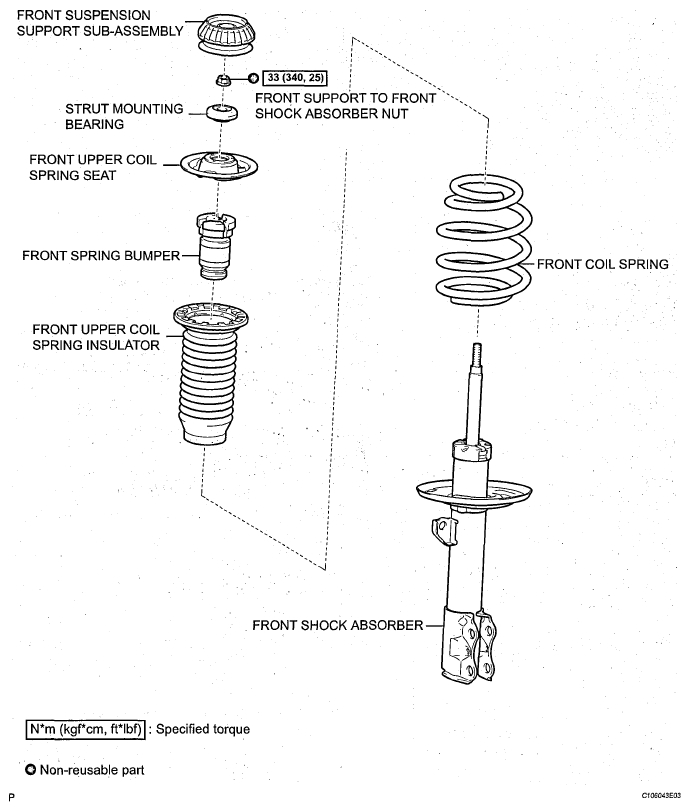

Fig 3: Front Shock Absorber With Coil Spring Replacement Components (3 Of 4) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Front Shock Absorber With Coil Spring Replacement Components (4 Of 4) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
