Front Stabilizer Bar: Components

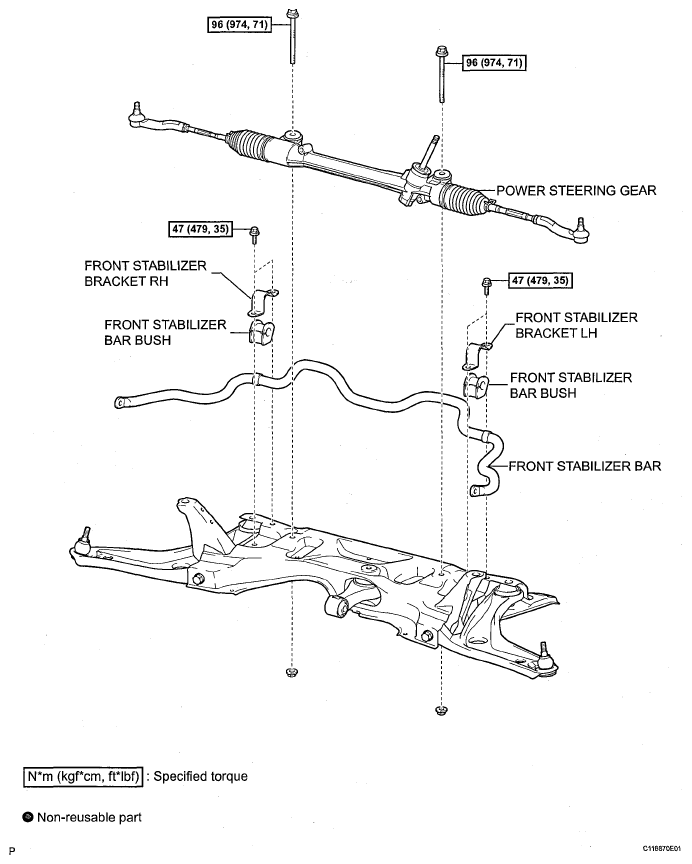

Fig 1: Front Stabilizer Bar Replacement Components (1 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Front Stabilizer Bar Replacement Components (2 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Front Stabilizer Bar Replacement Components (3 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

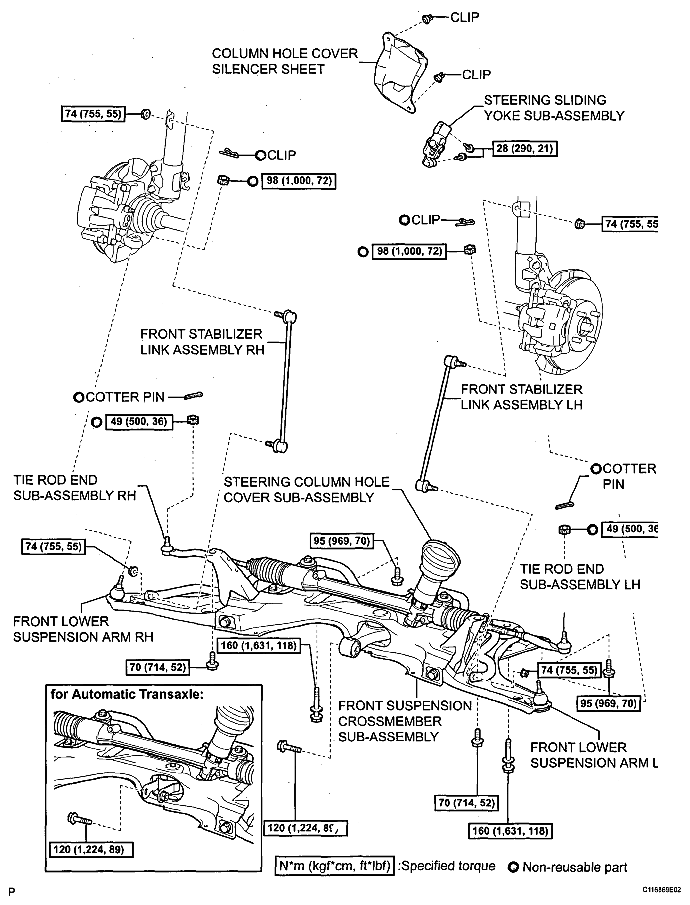

Fig 4: Front Shock Absorber With Coil Spring Replacement Components (2 Of 4) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Front Stabilizer Bar Replacement Components (5 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Front Stabilizer Bar Replacement Components (6 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
