Shift Lock (2TR-FE)
›
Notes
Shift Lock (2TR-FE): Notes

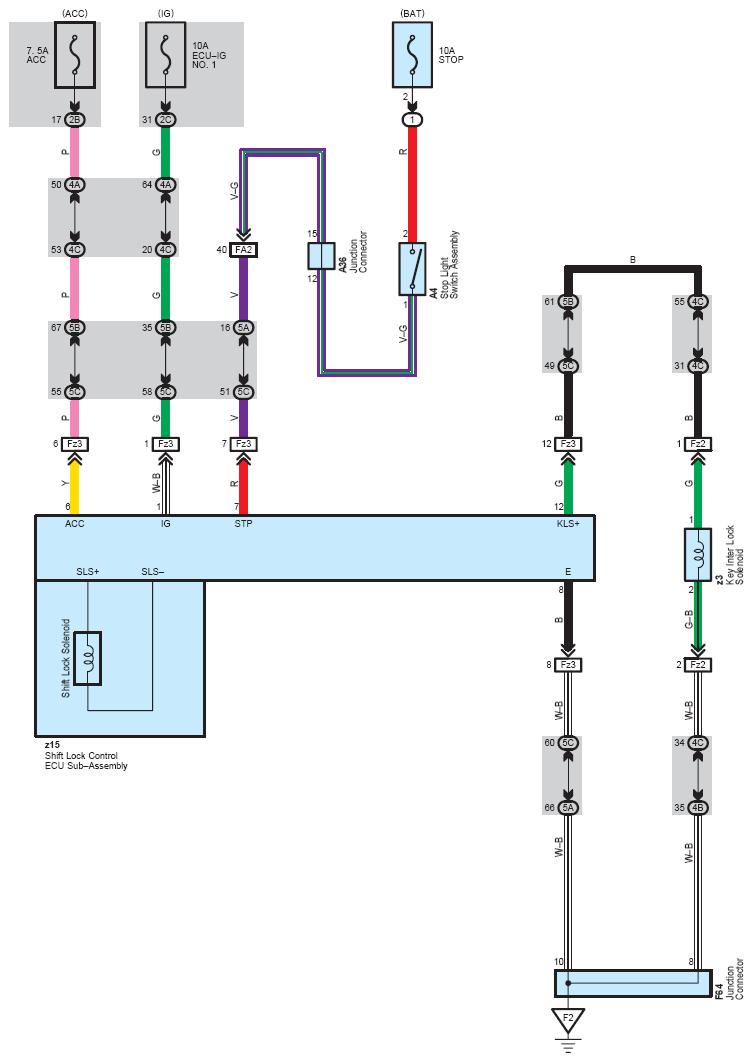

Fig 1: Shift Lock (2TR-FE) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
