Avalon Limited
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Starting (w/o Smart Key System)
›
Notes
Starting (w/o Smart Key System): Notes

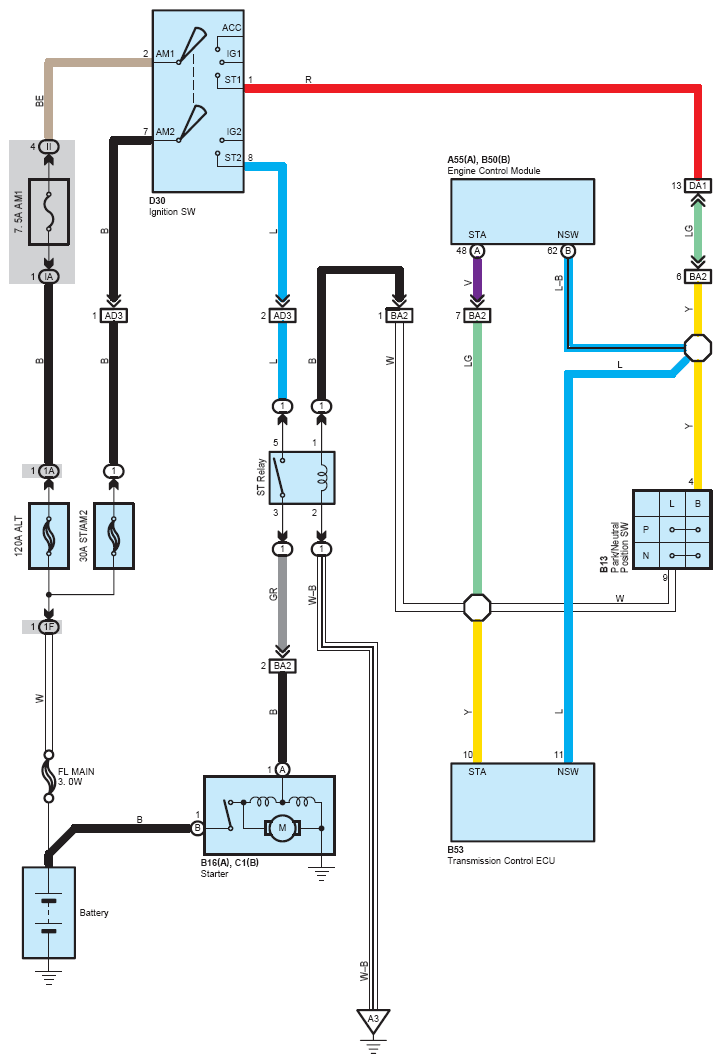

Fig 1: Starting (W/O Smart Key System) - Circuit Diagram
