Avalon Limited
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Stop Light
›
Back-Up Light
Back-Up Light

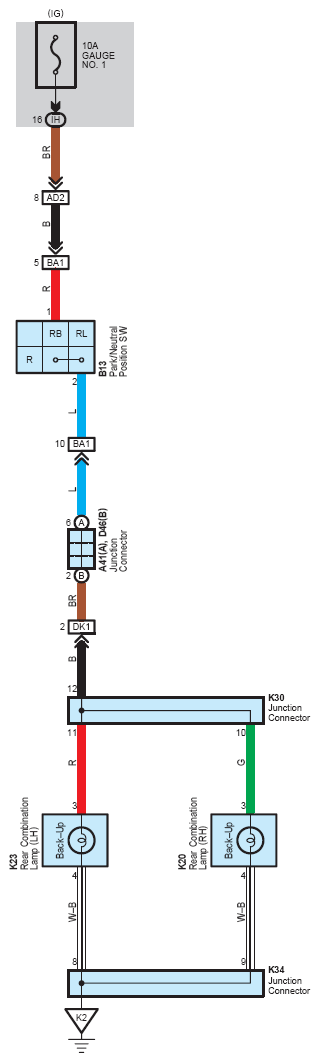

Fig 1: Back-Up Light - Circuit Diagram
