Power Window Control (Diagnostics)
›
Power Window Control System
›
Symptom Tests
›
Remote Up / Down Function does not Operate
›
Wiring Diagram
Remote Up / Down Function does not Operate: Wiring Diagram

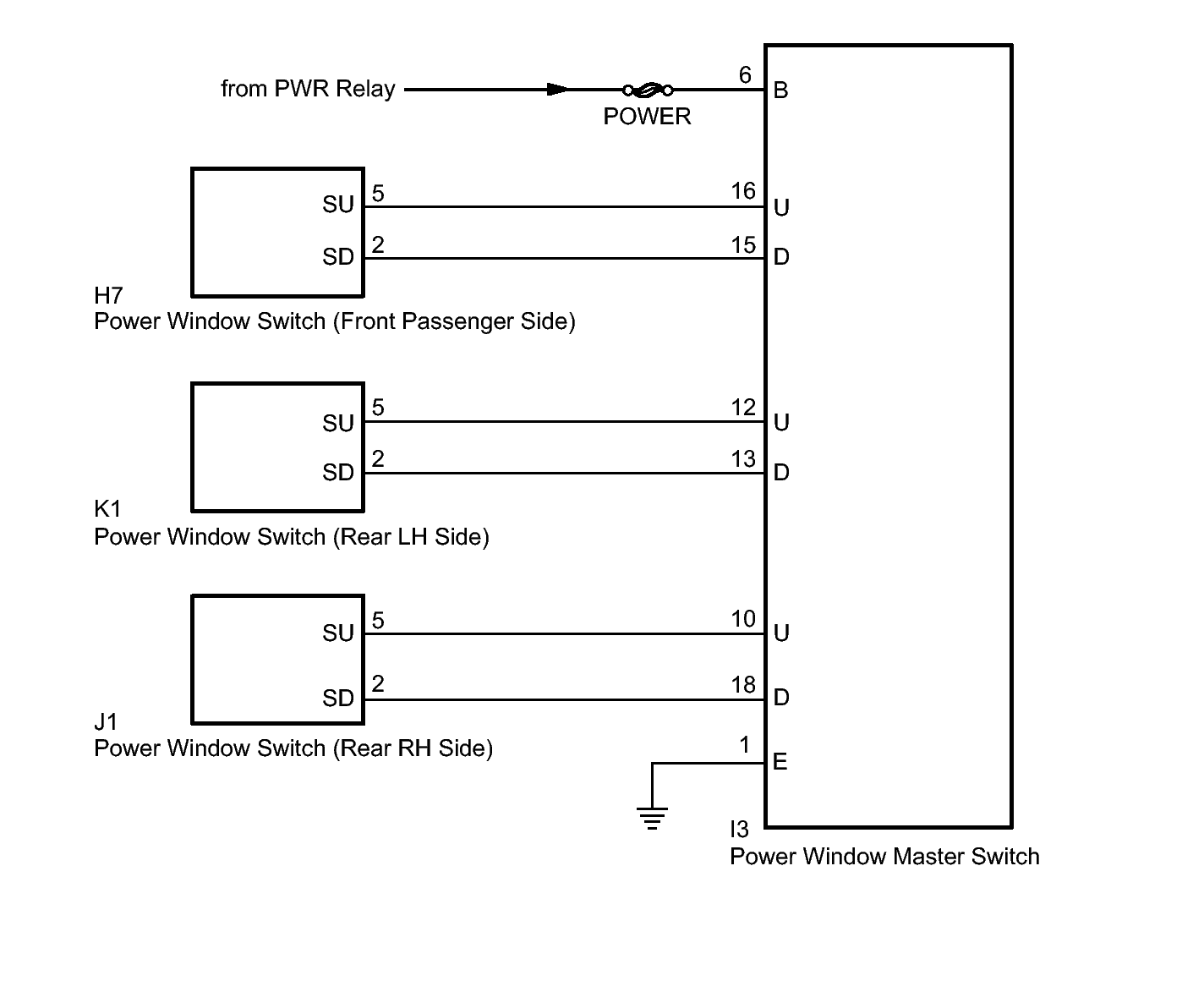

Fig 1: Remote Up / Down Function Wiring Diagram
