Corolla Base, Automatic
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Clock (Except TMC Made)
›
Notes
Clock (Except TMC Made): Notes

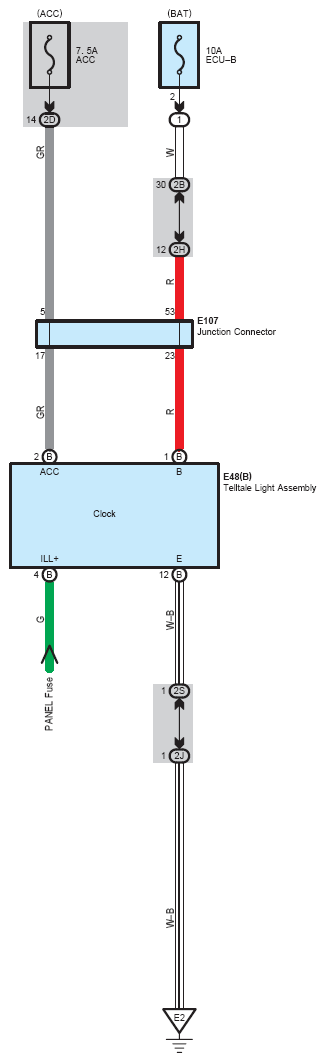

Fig 1: Clock (Except TMC Made) - Circuit Diagram
