Interior Light (TMC Made): Notes

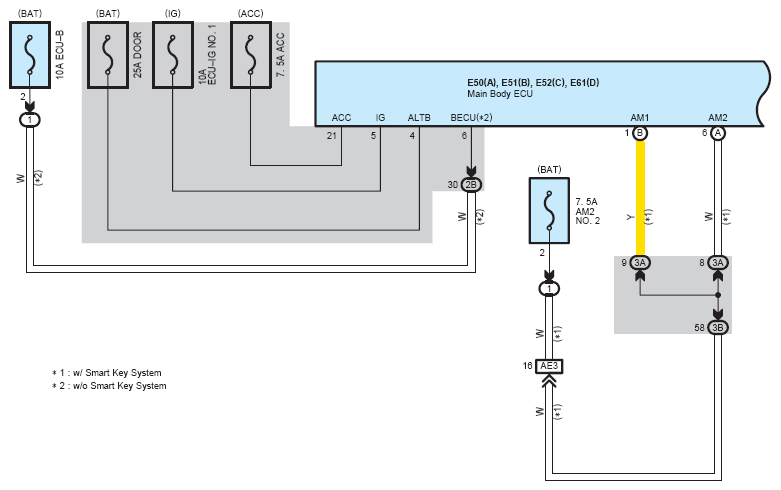

Fig 1: Interior Light (TMC Made) - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

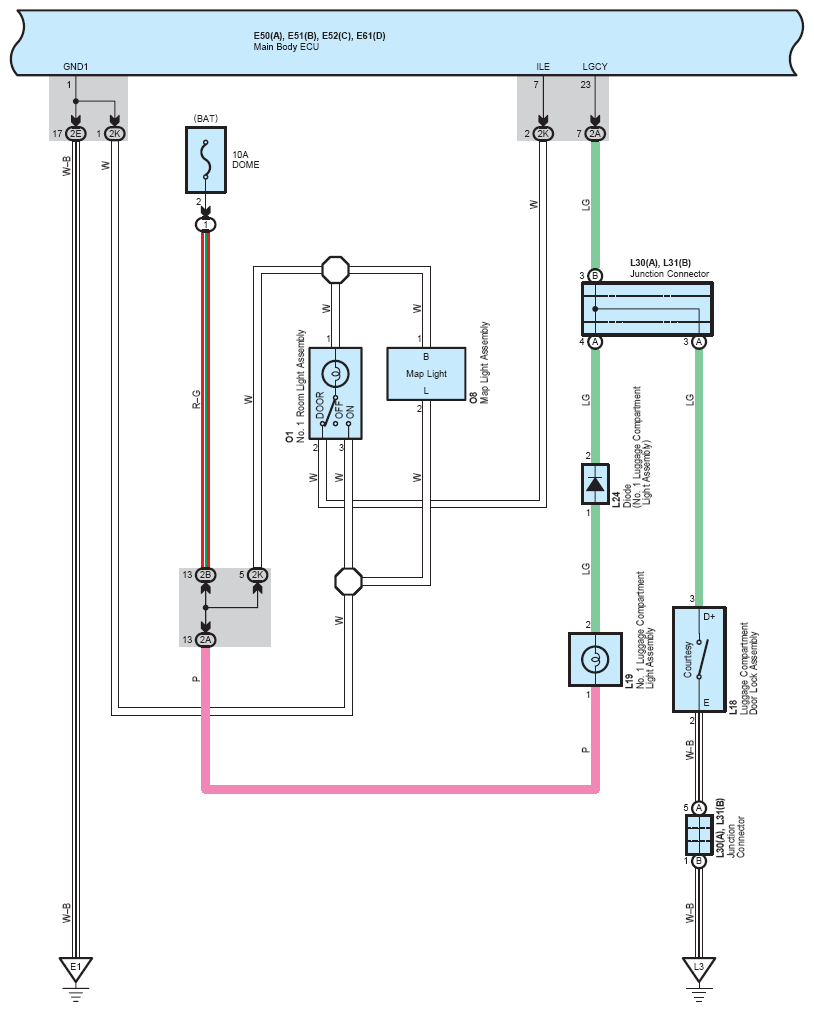

Fig 2: Interior Light (TMC Made) - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

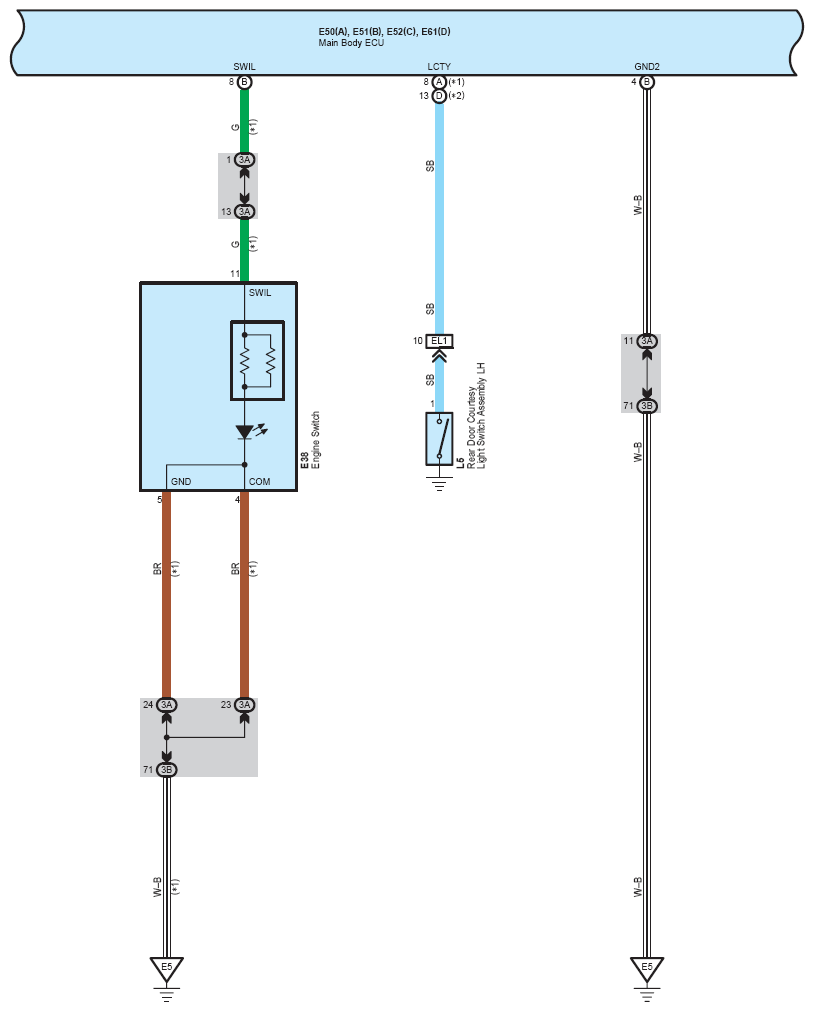

Fig 3: Interior Light (TMC Made) - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

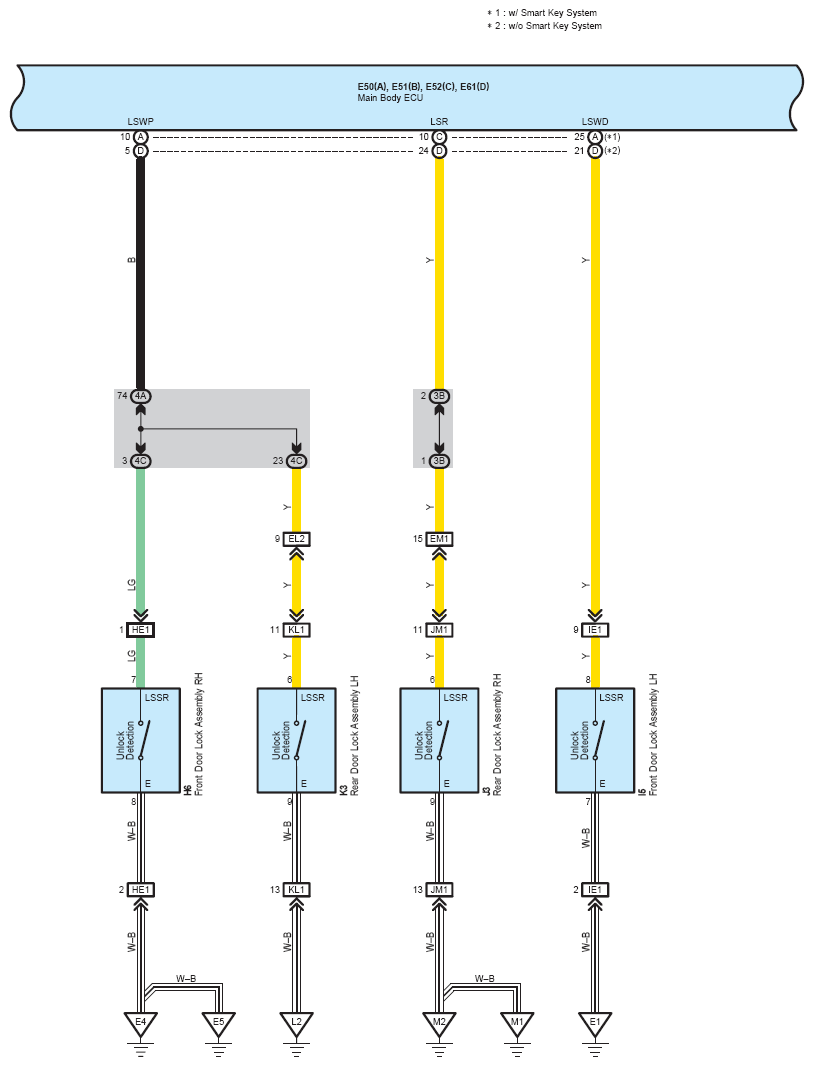

Fig 4: Interior Light (TMC Made) - Circuit Diagram (4 Of 5)

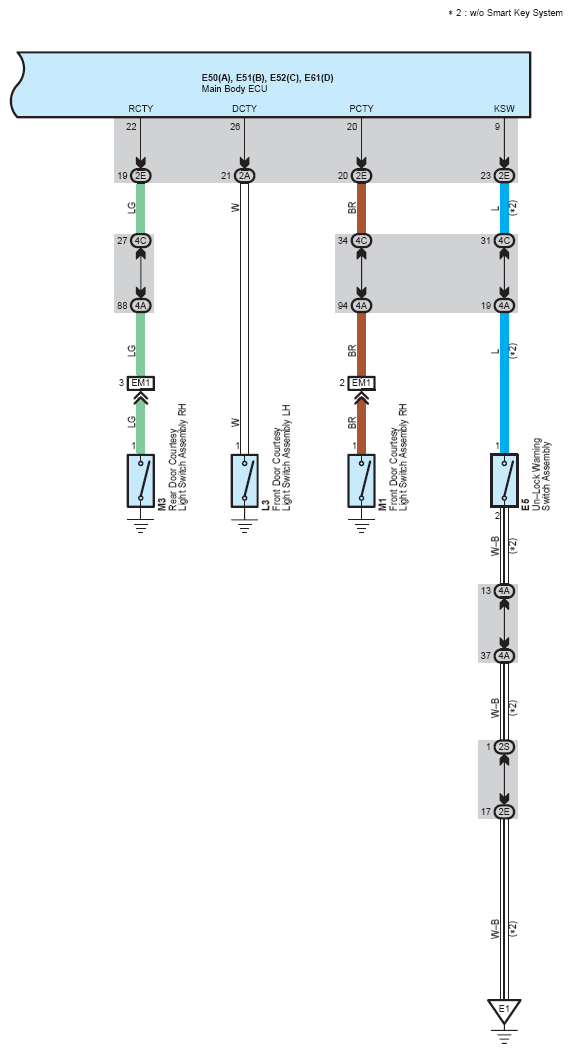

Fig 5: Interior Light (TMC Made) - Circuit Diagram (5 Of 5)
