Multiplex Communication System (CAN) (TMC Made): Notes

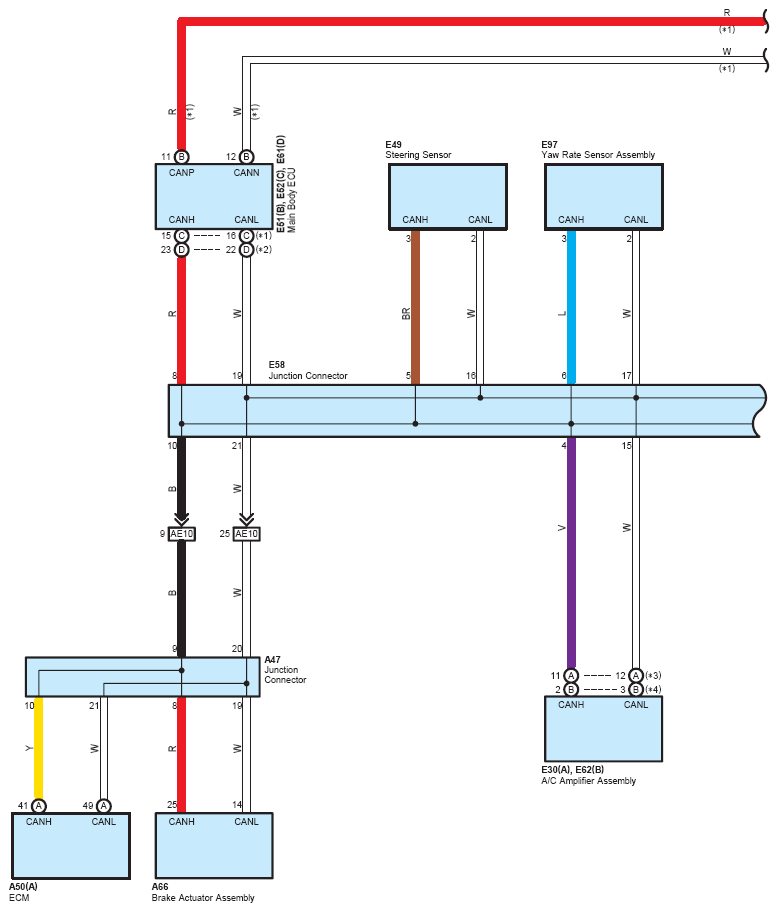

Fig 1: Multiplex Communication System [CAN] (TMC Made) - Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

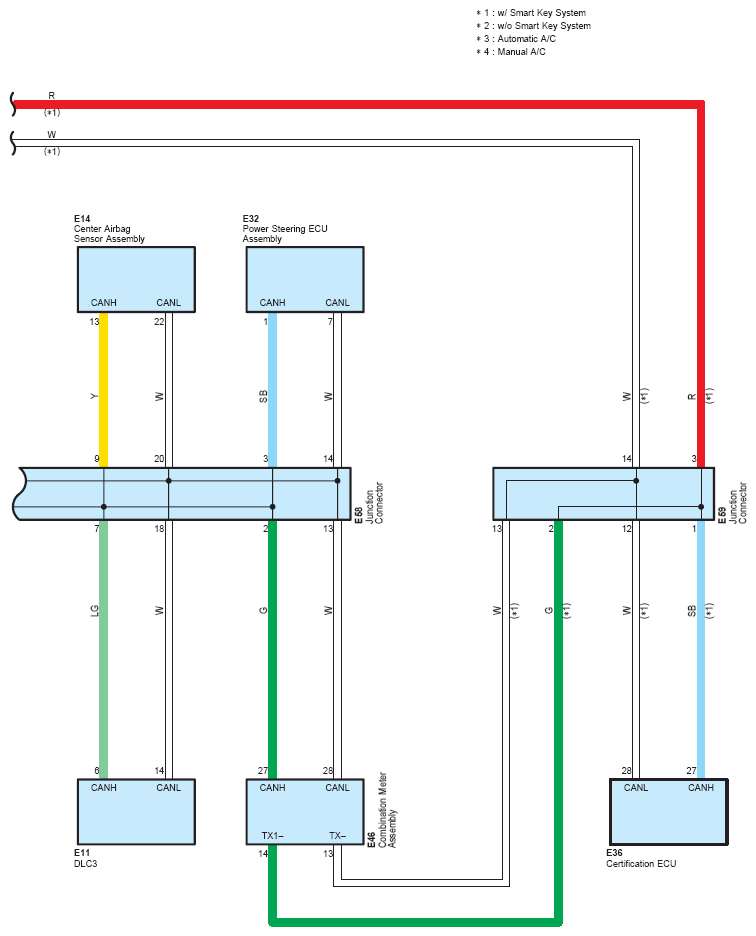

Fig 2: Multiplex Communication System [CAN] (TMC Made) - Circuit Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
