OEM System Circuits
›
Power Outlet (TMC Made)
›
Notes
Power Outlet (TMC Made): Notes

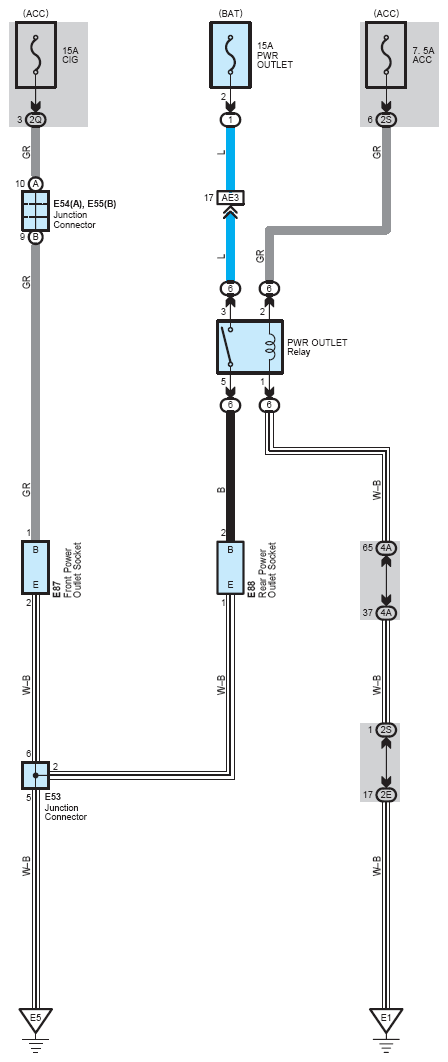

Fig 1: Power Outlet (TMC Made) - Circuit Diagram
