Power Window (Except TMC Made): Notes

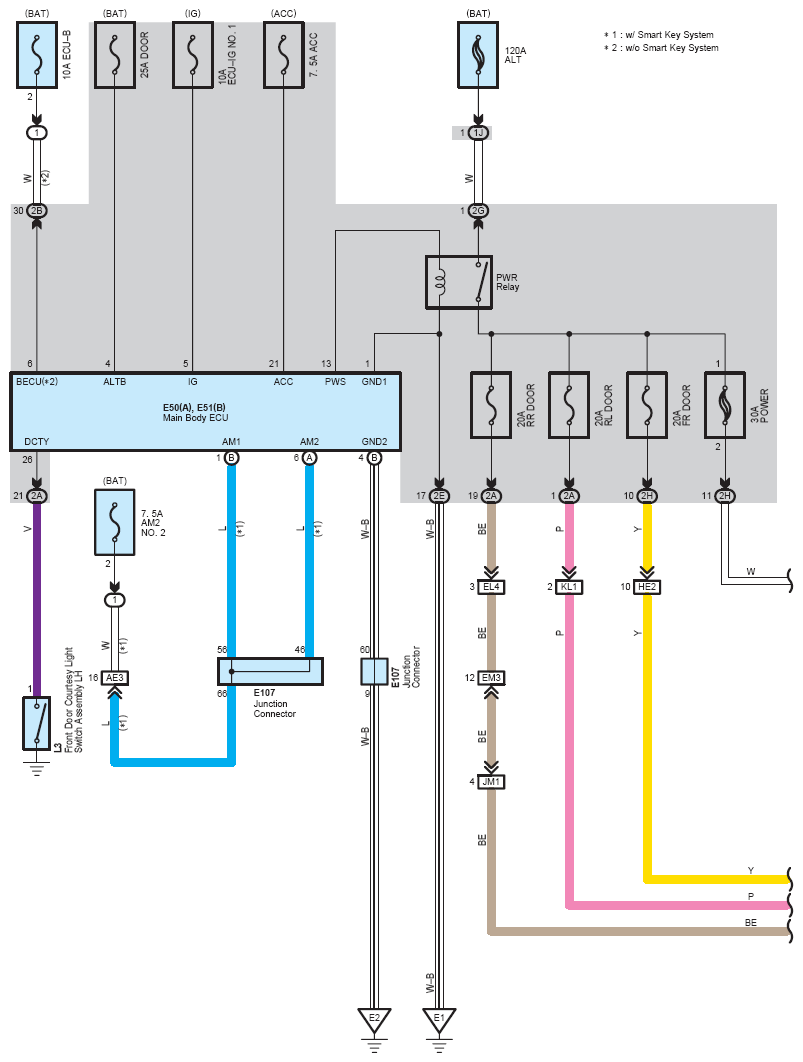

Fig 1: Power Window (Except TMC Made) - Circuit Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

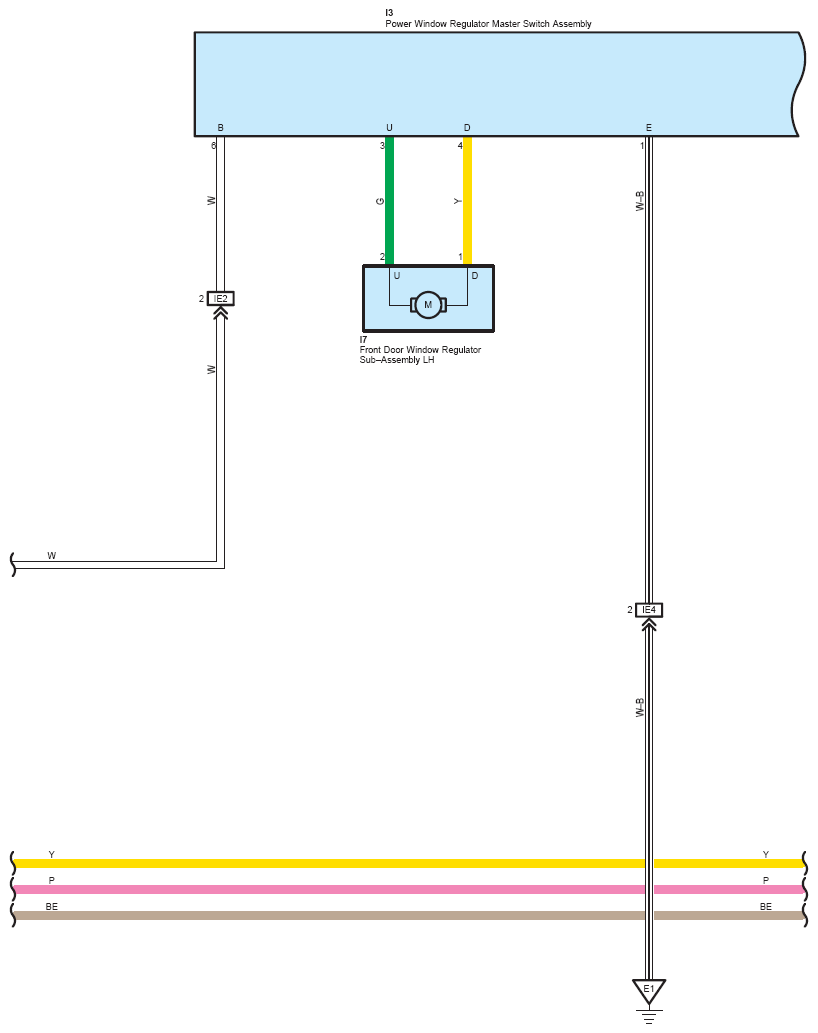

Fig 2: Power Window (Except TMC Made) - Circuit Diagram (2 Of 3)

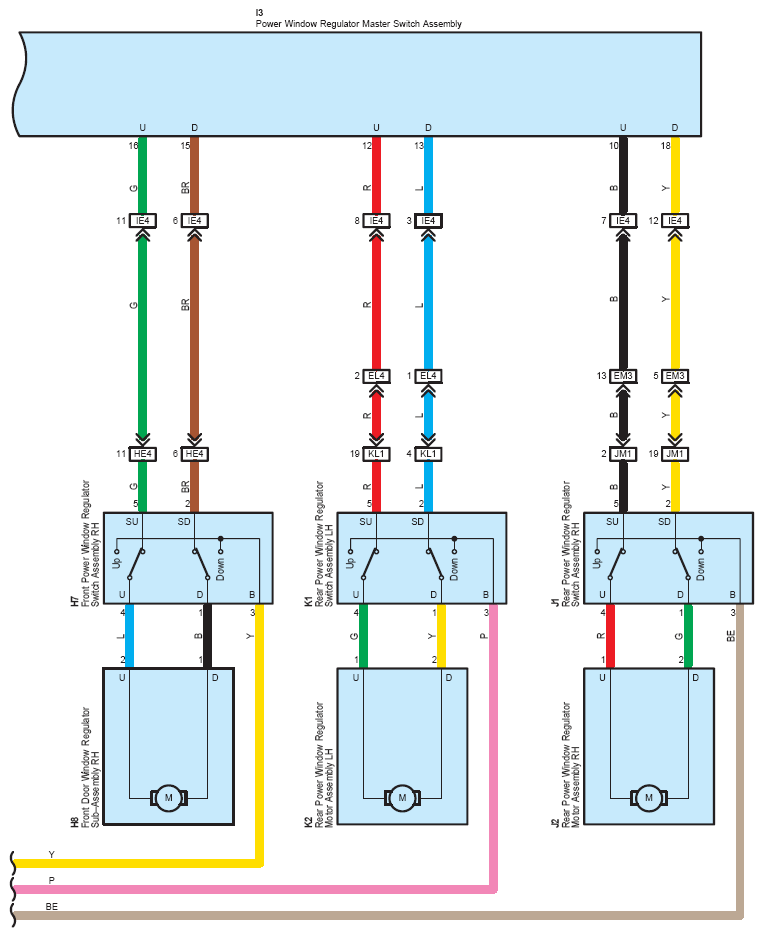

Fig 3: Power Window (Except TMC Made) - Circuit Diagram (3 Of 3)
