Data Link Connector 3 (Except TMC Made)
›
Notes
Data Link Connector 3 (Except TMC Made): Notes

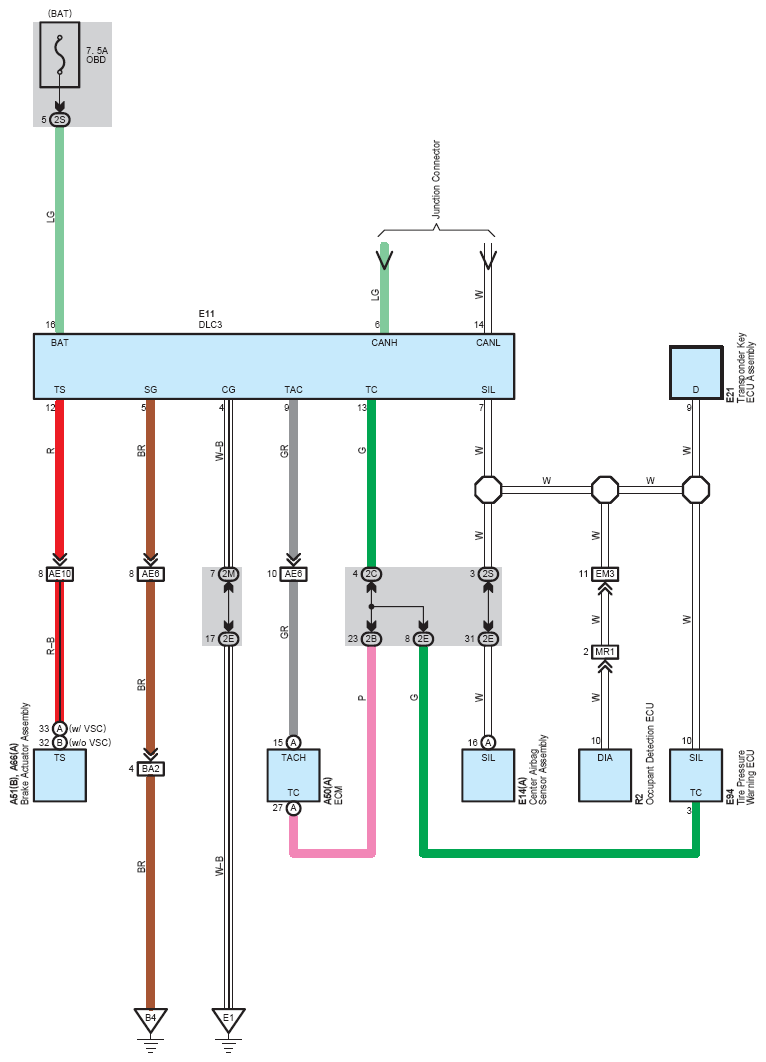

Fig 1: Data Link Connector 3 (Except TMC Made) - Circuit Diagram
