Toyota
›
2010
›
Corolla Base, Standard
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Power Outlet (Except TMC Made)
›
Notes
Power Outlet (Except TMC Made): Notes

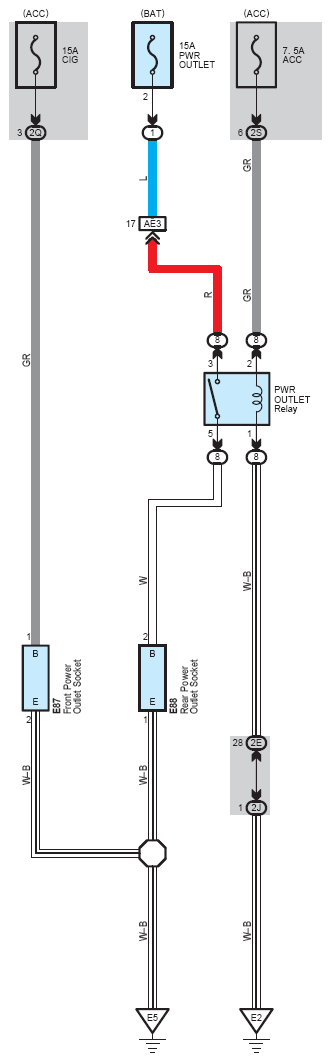

Fig 1: Power Outlet (Except TMC Made) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
