Power Window (TMC Made): Notes

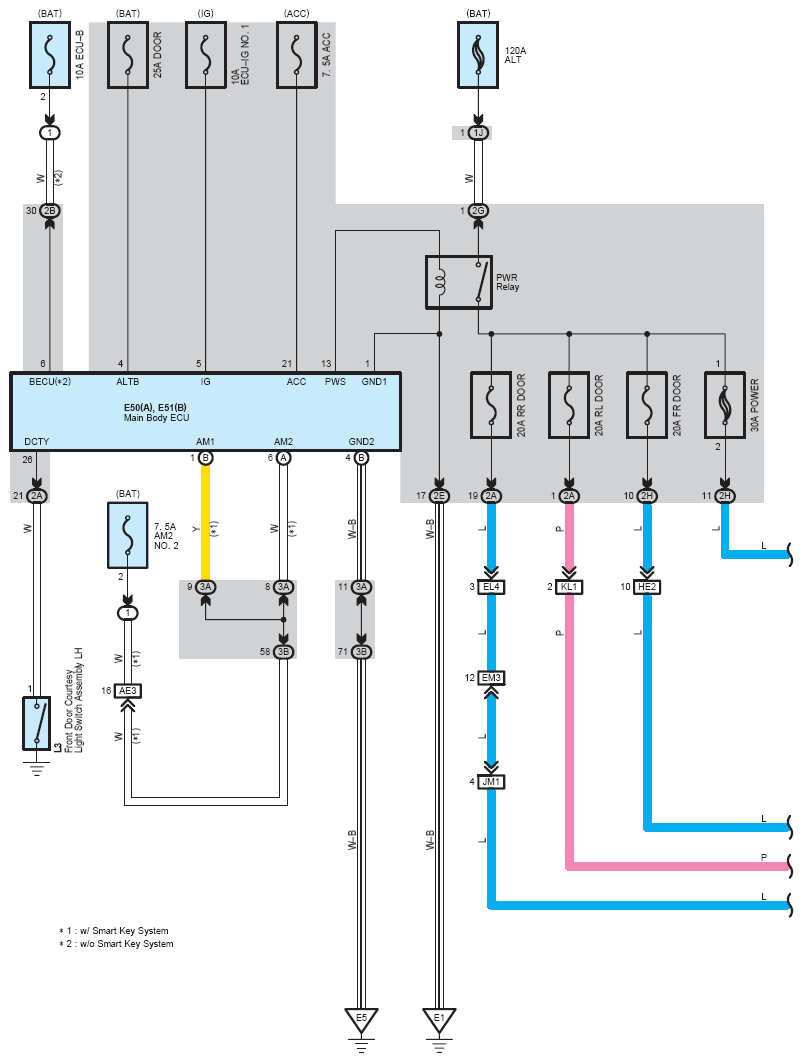

Fig 1: Power Window (TMC Made) - Circuit Diagram (1 Of 3)
G07551161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

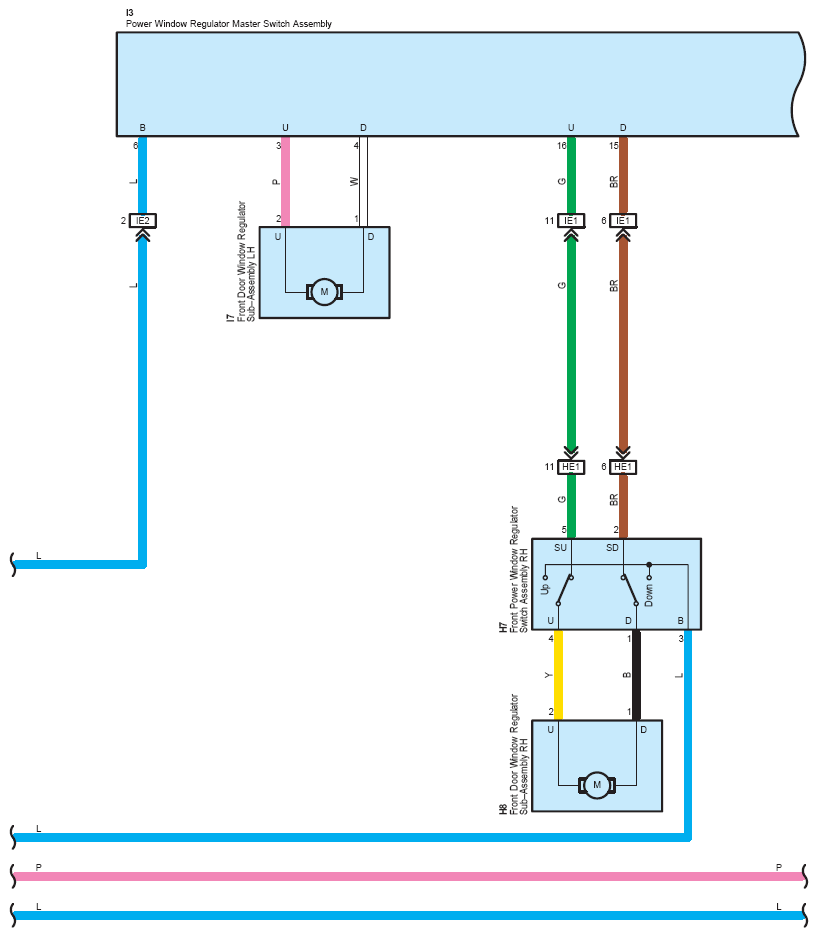

Fig 2: Power Window (TMC Made) - Circuit Diagram (2 Of 3)
G07551162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

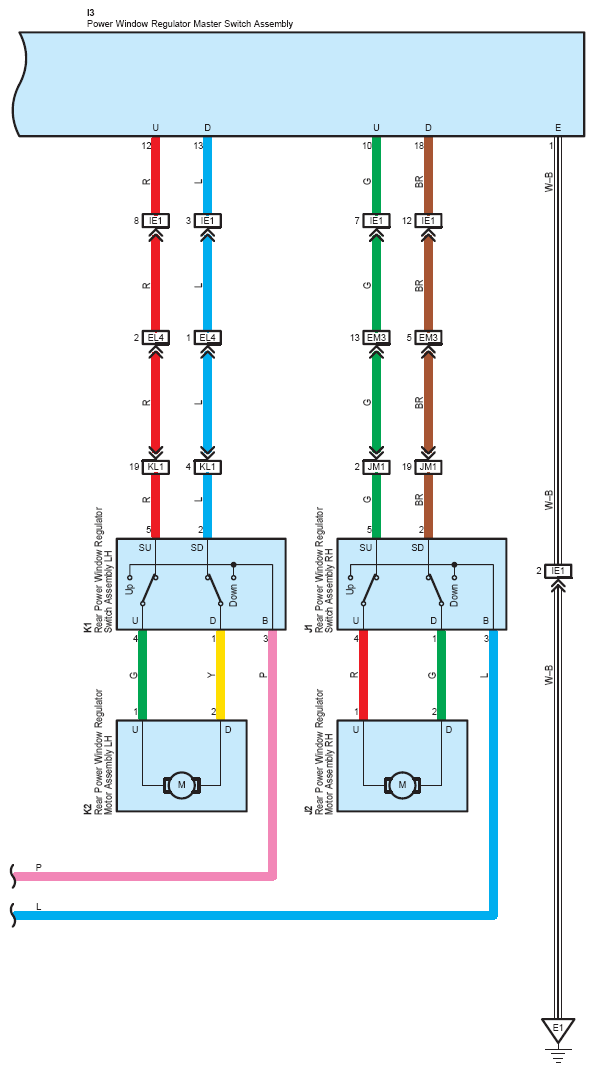

Fig 3: Power Window (TMC Made) - Circuit Diagram (3 Of 3)
G07551163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
