Stop Light (TMC Made)
›
Notes
Stop Light (TMC Made): Notes

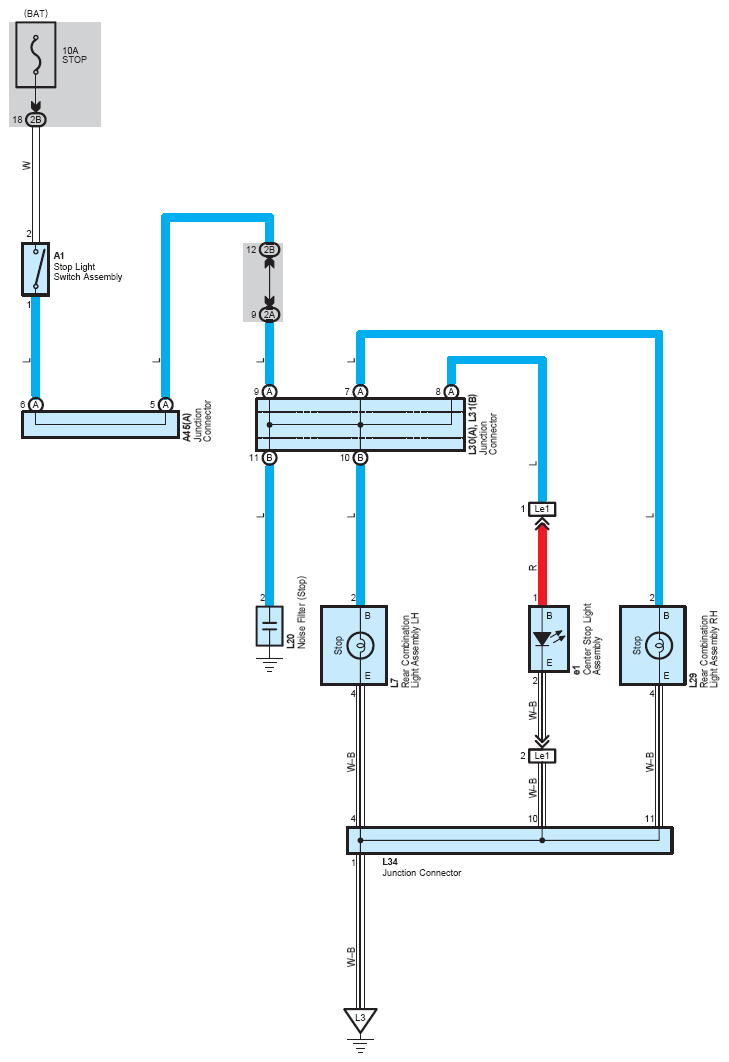

Fig 1: Stop Light (TMC Made) - Circuit Diagram
