Repair and Diagnosis
›
Engine Performance
›
Engine Ignition System (2ZR-FE) (Inspection)
›
Ignition System
›
System Diagram
›
System Diagram
System Diagram

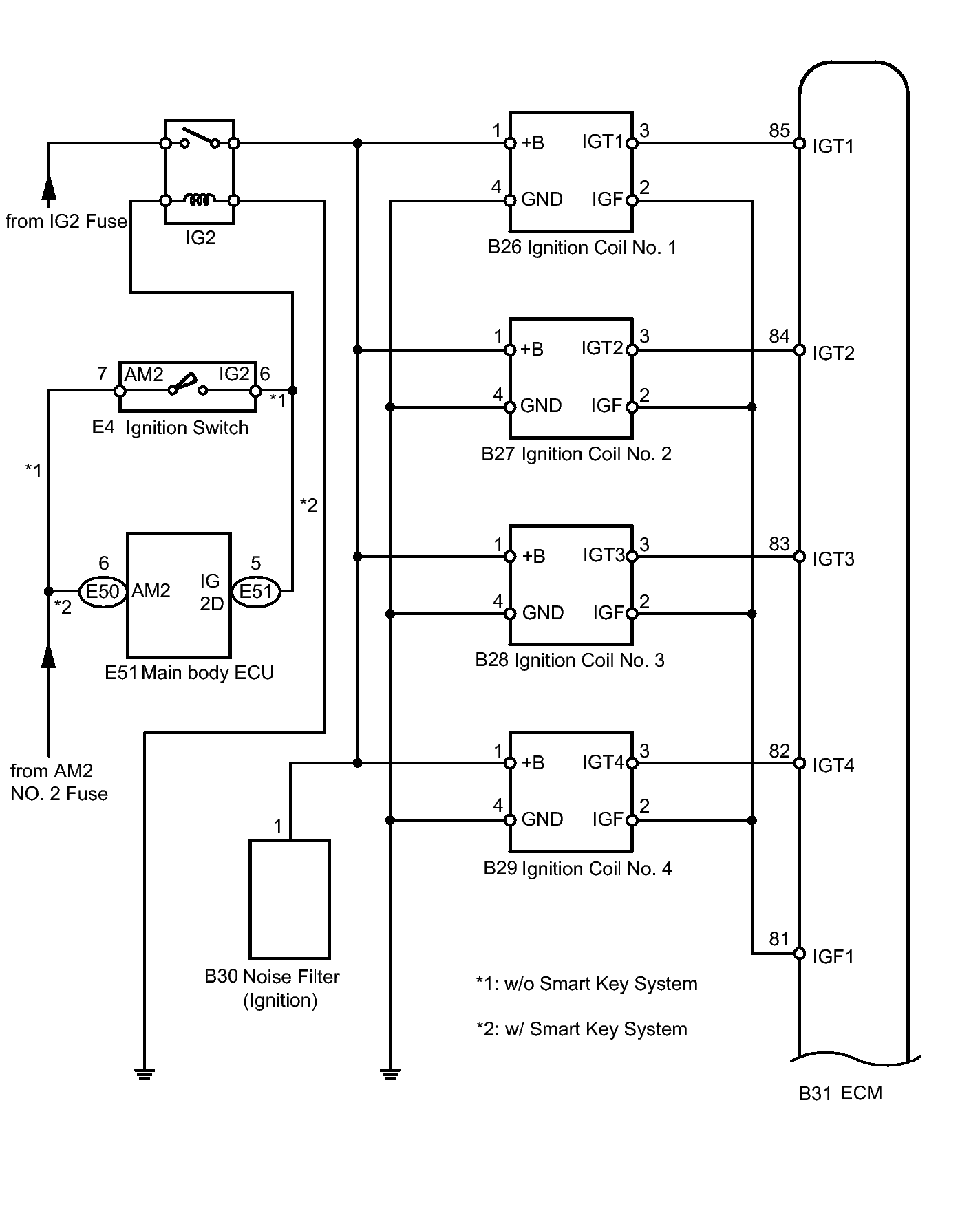

Fig 1: Identifying Ignition System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

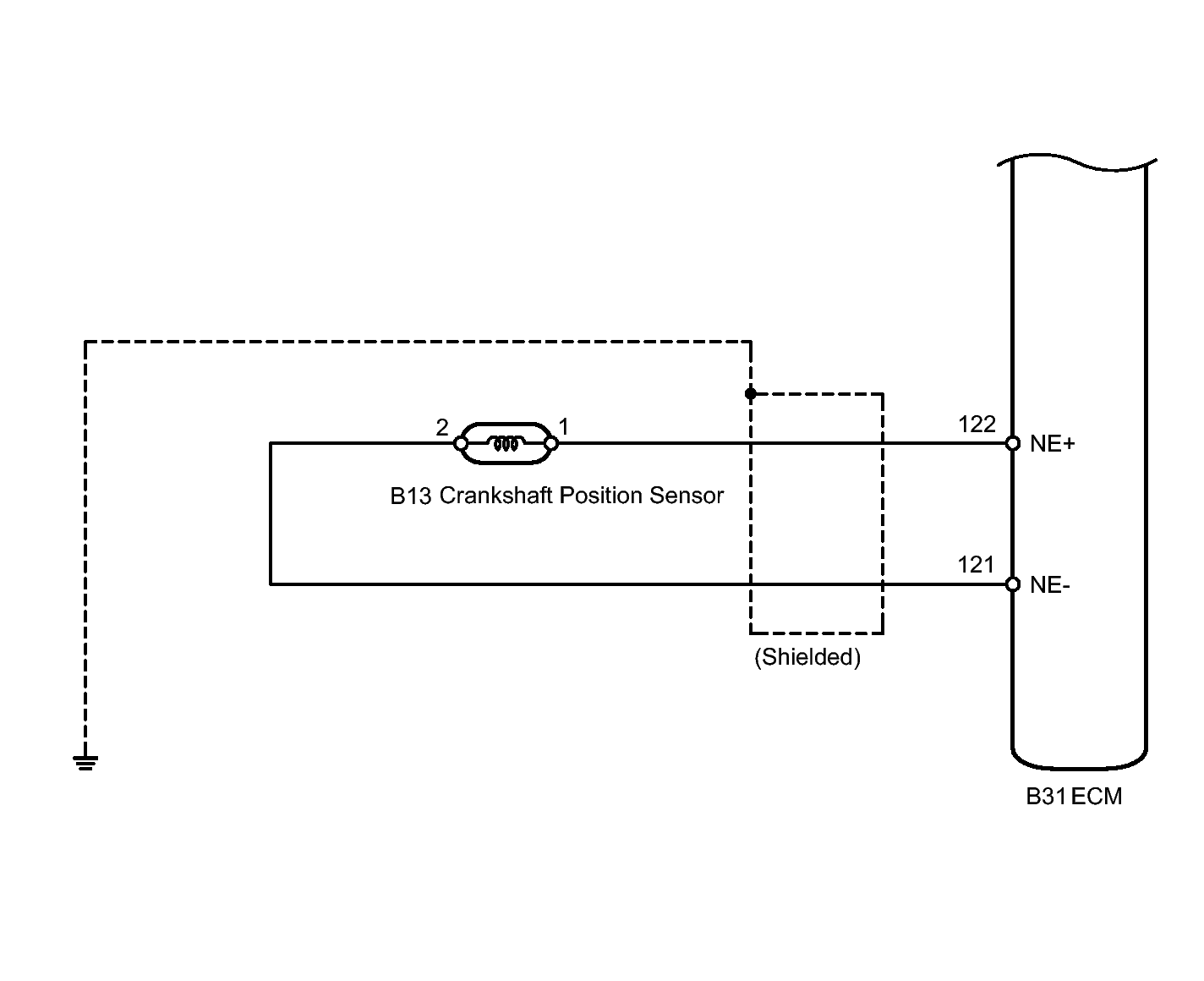

Fig 2: Identifying Ignition System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
