System Diagram

Fig 1: Engine Control System Diagram (1 Of 5)
GTY167721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

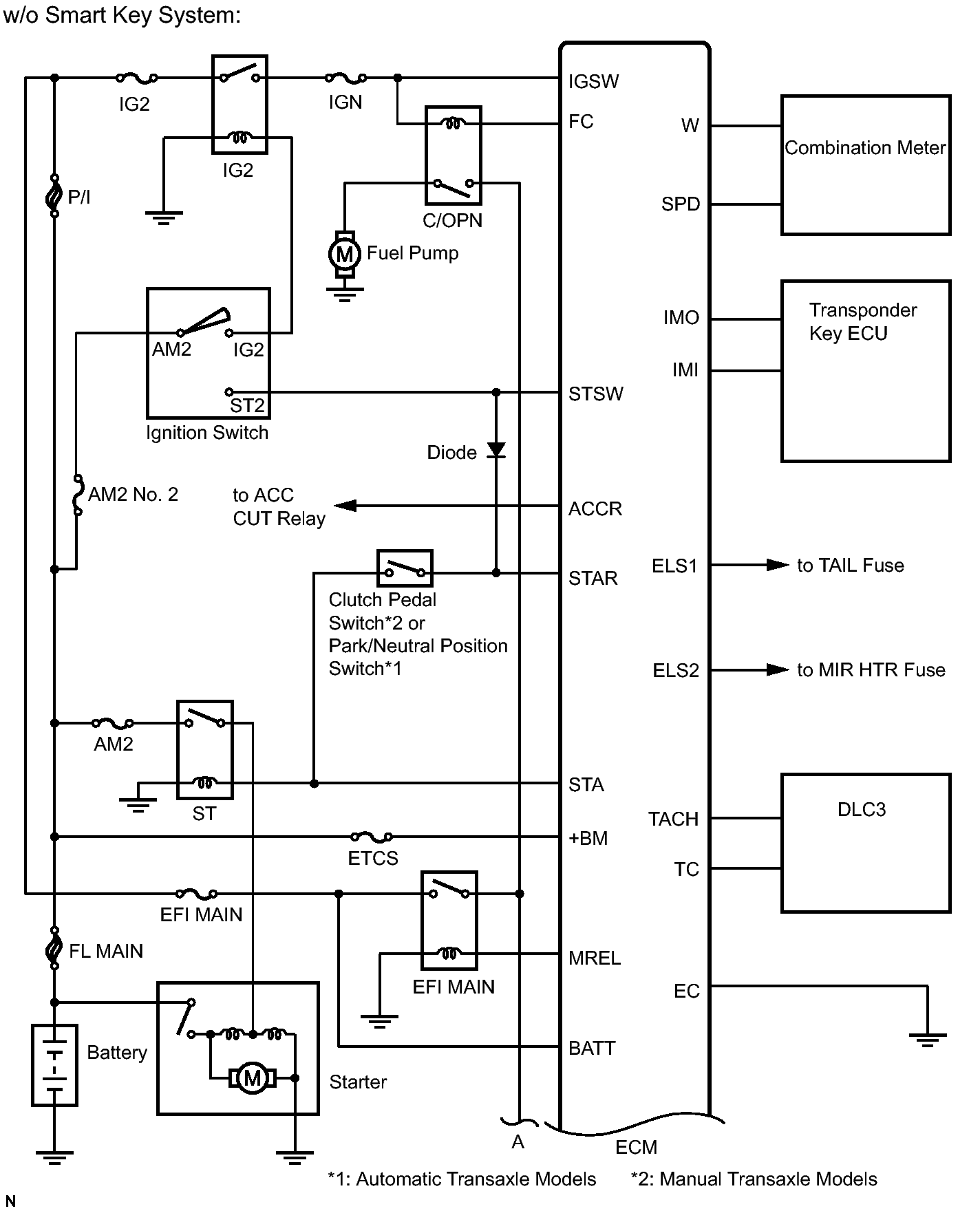

Fig 2: Engine Control System Diagram (2 Of 5)
GTY194670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

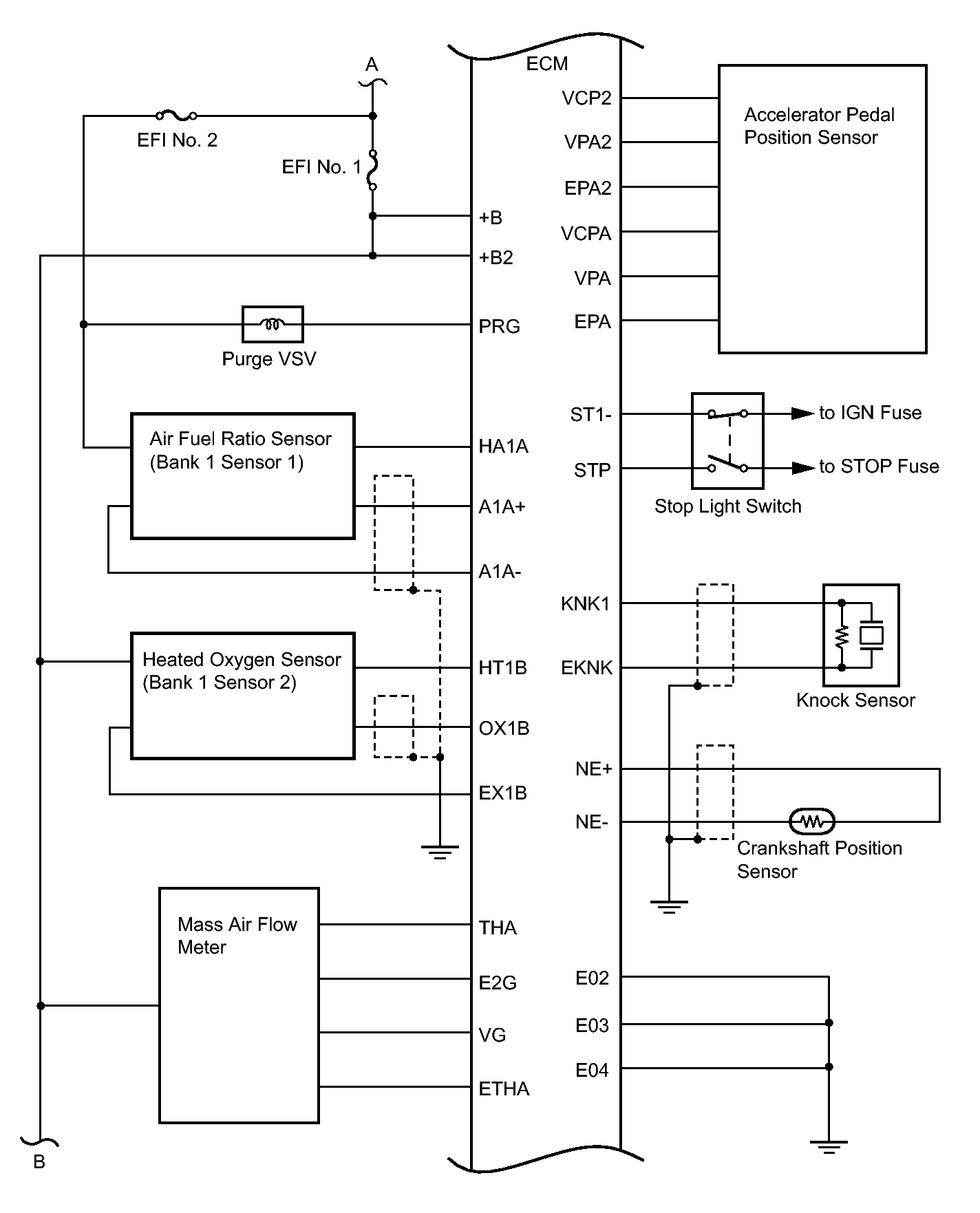

Fig 3: Engine Control System Diagram (3 Of 5)
GTY168550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Engine Control System Diagram (4 Of 5)
GTY180965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

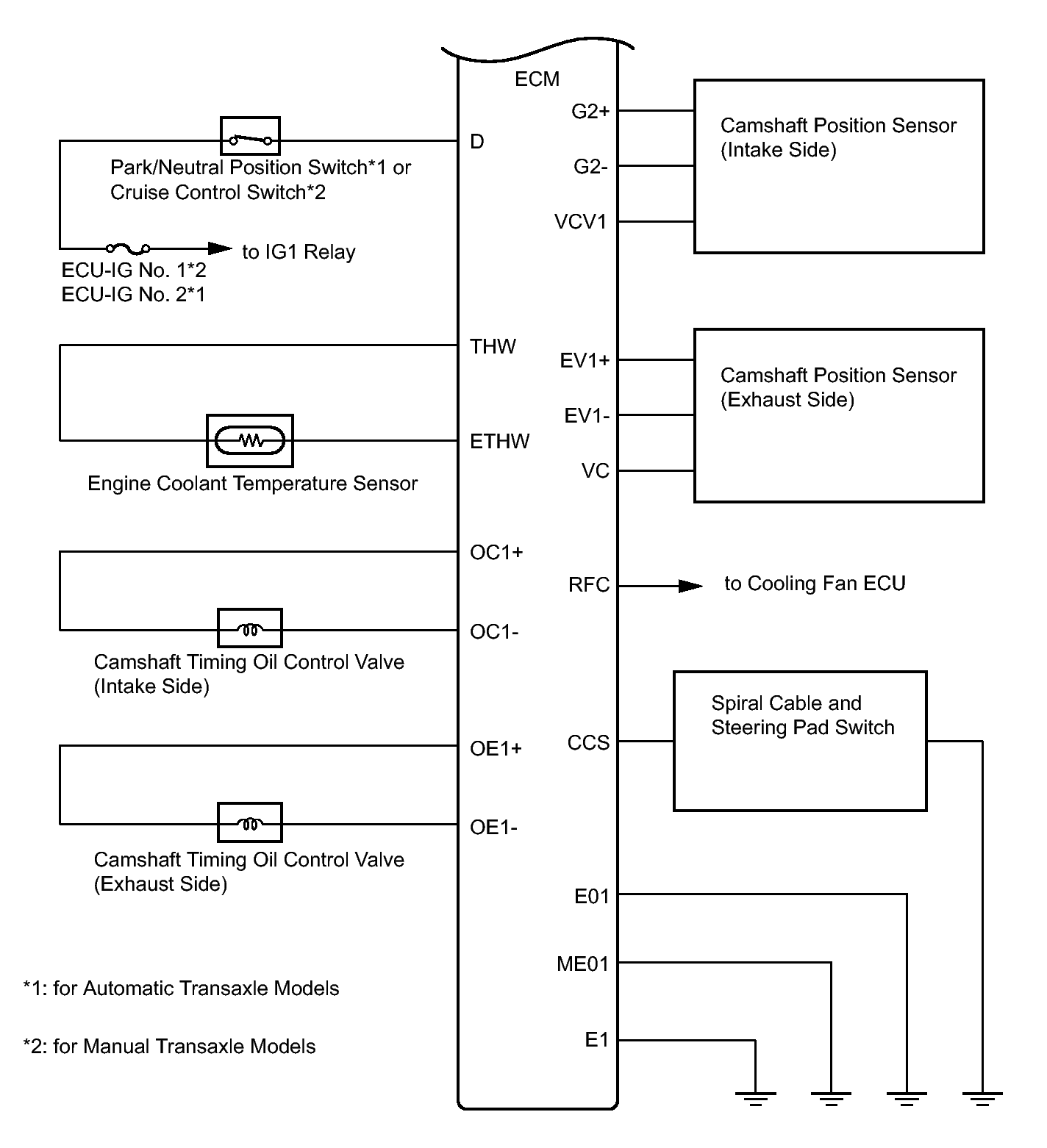

Fig 5: Engine Control System Diagram (5 Of 5)
GTY185981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
